Bently 3500/25 149369-01 Enhanced Keyphasor Module

Bently 3500/25 149369-01 Enhanced Keyphasor Module

Bently 3500/25 149369-01 Enhanced Keyphasor Module

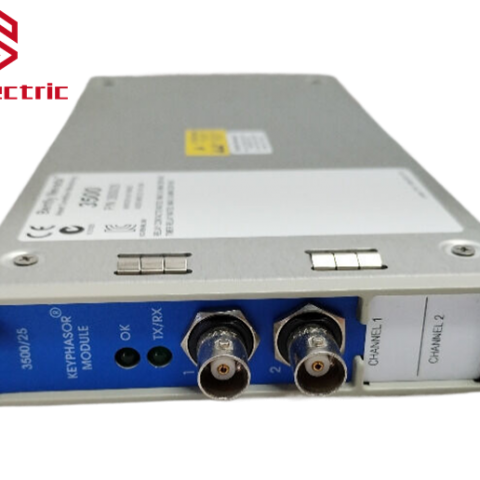

The 3500/25 Enhanced Keyphasor Module is a half-height,two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration.

One 3500/08 can deliver signals from six 3500 4-channel monitors and one 3500 2-channel Keyphasor Module. The Diagnostics Access Panel has one coaxial connector for each channel. The maximum cable length for use with the 3500/08 is 26 metres (85 feet).

149986-01 Spare 16-Channel Relay Control Module

149992-01 Spare 16-Channel Relay Output Module

149992-02 Spare 16-Channel Failsafe Relay Output Module

149992-03 Spare 16-Channel Low Current Relay Output Module

149992-04 Spare 16-Channel Low Current Failsafe Relay Output Module

125808-01 Proximitor ET Block Euro Style Connectors
128015-01 Proximitor ET Block Terminal Strip Connectors
132242-01 Proximitor/ Seismic TMR ET Block Euro Style Connectors
132234-01 Proximitor/Seismic TMR ET Block Terminal Strip Connectors
176449-01 3500/40M Proximitor Monitor
125680-01 Proximitor I/O Module with Internal Terminations
126615-01 Proximiotr I/O Module with Extrnal Terminations
135489-04 Proximitor I/O Module with Internal Barriers and Internal Terminations
149716-01 TMR Proximitor I/O Module with External Terminations

Programmability: The BENTLY 133396-01 digital quantity input module is typically programmable, allowing the user to configure the input signal type, sampling frequency, and trigger conditions according to their specific needs.

Industry standards: These modules usually comply with industry standards such as temperature range, protection class and vibration resistance to meet the requirements of industrial environments.
