Vibro-meter 200-595-031-111 VM600 CPUM CPU card
The 200-595-031-111 VM600 CPUM Module CPU card, VM600 CPU and IOCN Modular CPU card and input/Output card is a rack controller and communication interface card that acts as a system controller and data communication gateway for the VM600 Rack Mechanical Protection System (MPS) and/or condition Monitoring system (CMS).
VM600 CPUM and IOCN modular CPU card and input/output card Key features and benefits
1：VM600 CPUM/IOCN rack controller and communications interface card pair with support for Modbus RTU/TCP or PROFINET, and a front-panel display
2：“One-Shot” configuration management of protection cards (MPC4 and AMC8) in a VM600 rack using an Ethernet or RS-232 serial connection to a computer running the VM600 MPSx software
3：Front-panel display for visualisation of monitored outputs and alarm limits from protection cards
4：Front-panel alarm reset (AR) button
5：VM600 MPS rack (CPUM) security
6：Industry standard fieldbus communications interfaces: Modbus RTU/TCP or PROFINET
7：Two Ethernet connections and up to three serial connections (RS-232 / RS-422 / RS-485) can run simultaneously
8：Communications redundancy with multiple fieldbuses: Ethernet and/or serial
9：VM600 system event and measurement event logs available via the VM600 MPSx software
10：Supports live insertion and removal of protection cards (“hot-swapping”) with automatic configuration
11：Ethernet (100 Mbps) communication
12：Front-panel status indicators (LEDs)
13：Compatible with all VM600 (ABE04x) system racks
Different versions of CPUx/IOCx rack controller and communications interface card pair are available, as follows:
• The CPUM/IOCN is the original version with a front-panel display and support for Modbus RTU/TCP or PROFINET (PNR 200-595-VVV-VVV).
• The CPUR/IOCR is a version with rack controller redundancy and support for Modbus RTU/TCP (PNR 600-007-VVV-VVV).
• The CPUR2/IOCR2 is a version with mathematical processing of fieldbus data and support for Modbus TCP and PROFIBUS DP (PNR 600-026-000-VVV).
Vibro-meter VM600 product recommendations

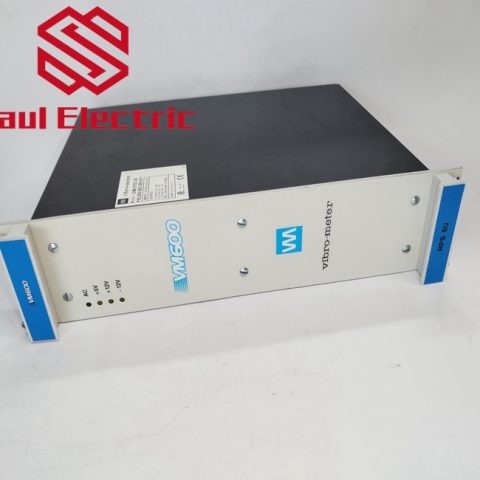

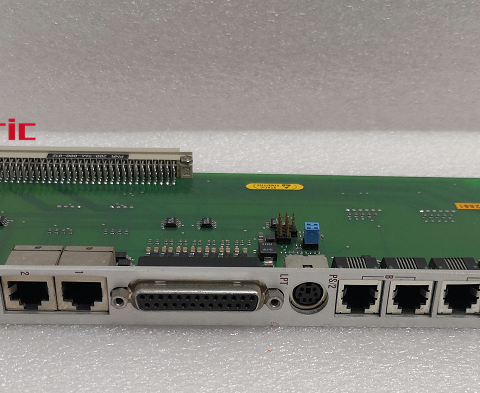

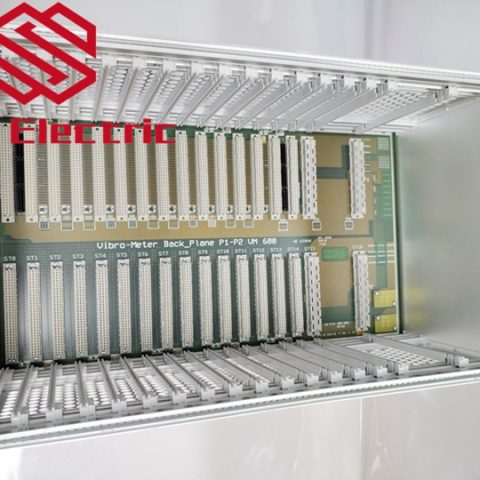

200-510-076-114 200-510-111-034 VM600 MPC4丨Vibro-meter machinery protection card ，200-582-915-032 VM600，VM600-ABE040 204-040-100-011，620-002-000-113 620-003-111-112 VM600 XI016T，200-566-000-012 200-566-101-012 VM600 IOCN，200-560-000-018 200-560-101-015 VM600 IOC4T，620-002-000-113 620-003-111-112 VM600 XIO16T，VM600 RPS6U 200-582-200-011，VM600 RPS6U 200-582-500-013，VM600 CPUM 200-595-100-014，VM600 MPC4 200-510-071-113 200-510-111-034，VM600 CPUM ，VM600 MPC4 ，VM600 MPC1，200-510-017-019 200-510-111-013 VM600 MPC4，
