Made by ABB AC 800PEC controller
AC 800PEC 3BHE039724R0C3D PPD513AOC-100440 High performance controller
3BHE039724R0C3D PPD513AOC-100440

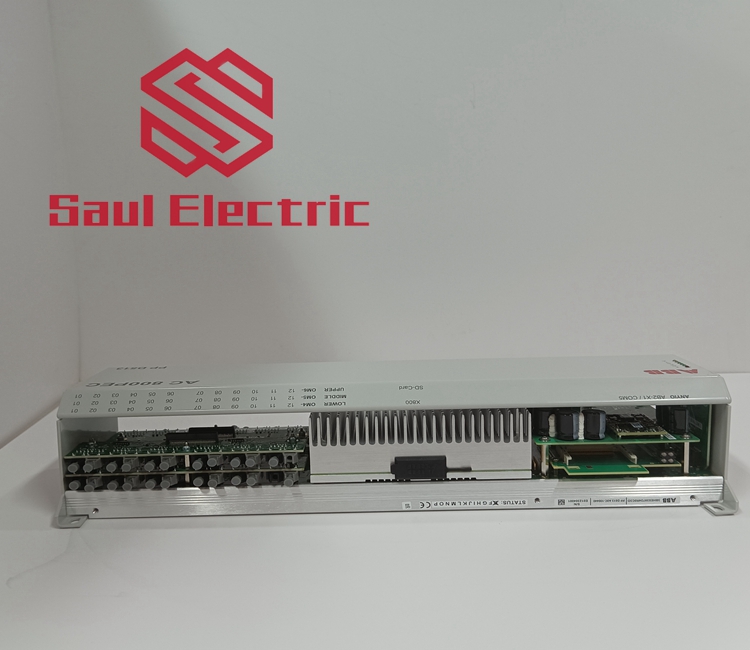

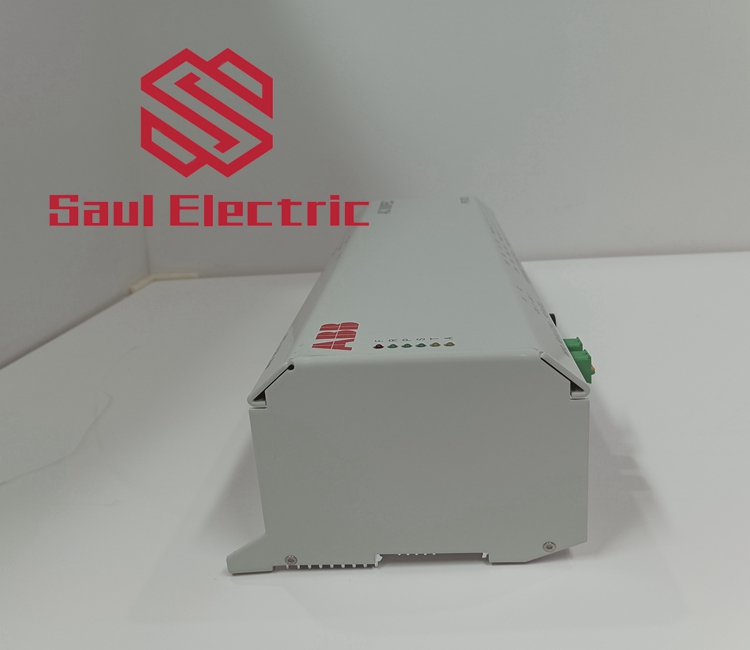

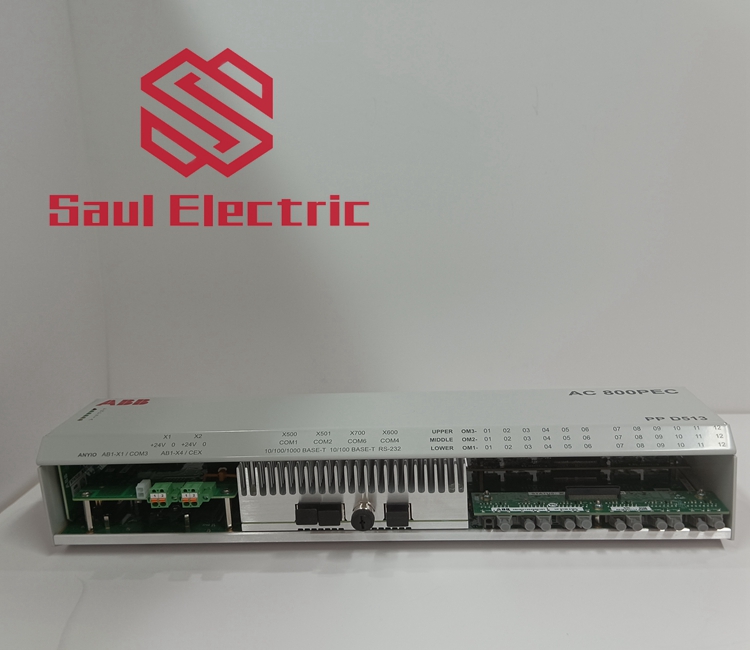

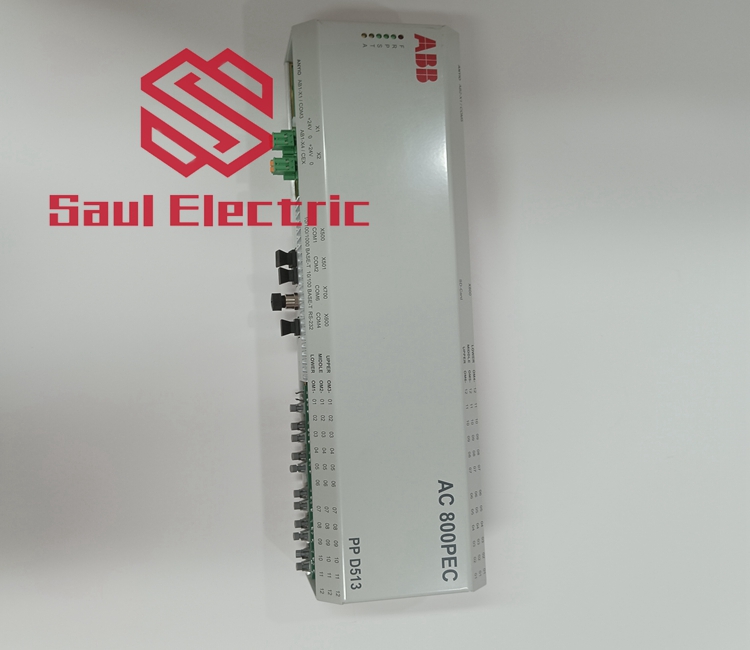

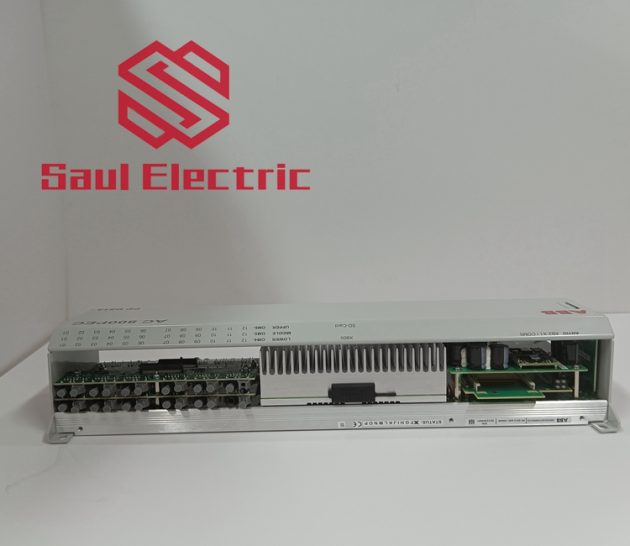

The 3BHE039724R0C3D PPD513AOC-100440 hardware of the AC800PEC controller consists of the base unit AC800PEC BP (backplane strap for mounting the processor, power supply, and optical and communication modules) and the processor module AC800PEC CPU. Together, these modules provide powerful processing power that enables the AC 800PEC to operate stably under high-speed control requirements.AC 800PEC controller 3BHE039724R0C3D PPD513AOC-100440
The 3BHE039724R0C3D PPD513AOC-100440 AC 800PEC has a unique combination of features for demanding applications:
- Short cycle times, down to 100 μs
- High processing power
- Fast communication and I/O via optical links
- Programming tools:
– System engineering with IEC61131-3 languages using ABB’s Control Builder, both Compact and Professional versions available
– Product and control development using MATLAB®/Simulink® for model-based design, easily bridging the gap from simulation to
implementation
- Full integration into ABB Ability™ System 800xA
- Innovative and flexible use of FPGAs to include protocols and application functionality in the devices without creating additional processor load
- Optical communication
- Industrial grade hardware with no moving parts
- Long life cycle, easy upgrading
- Robust reliance file system, insusceptible post power loss
Made by ABB丨AC 800PEC controller PPD113B01-10-150000 3BHE023784R0123
Aluminium applications:
• AC 800PEC Unit controller ↔ AC 800PEC Master controller communication via PEC – PEC fiber optical link (100 μs)
• Units can be controlled independent from master
• Allows emergency operation (full smooth current control, in emergency mode, without AC 800PEC, available only in combination with DCS800 premagnetization)
• Predictive maintenance features can be included
• Open circuit-, over current-, under voltage-, over voltage protection packages included in software
– A newly developed OPC (open circuit protection) stand-alone PLC (programmable logic controller), working in combination with the AC 800PEC Master controller functions or as standalone protection, in case of the master panel maintenance
• Controlled shutdown in an event, not needing an immediate trip → less disturbance for your processes
• Potline load swing detection and load shedding function integrated in application software
• On Load Tap Changer fast tapping function in order to prevent DC current overload during disturbances
• A special potline-to-earth resistance measurement system based on an AC 800PEC family available (PERMS)
• Maximum power regulation
– To prevent over-shooting of power consumption and to support your power generators
• Maximum DC voltage regulation for stabilizing your process
