516TX 336A4940DNP516TX Industrial network switch
516TX 336A4940DNP516TX Industrial network switch

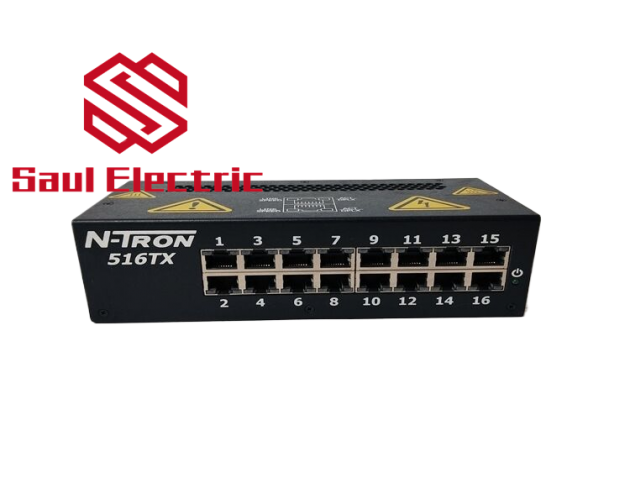

The N-TRON 516TX Series Industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for connecting Ethernet enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions
PRODUCT FEATURES
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) Type Approval
• Sixteen 10/100 BaseTX RJ-45 Ports
• -40º to 85ºC Operating Temperature
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• Up to 2.6 Gb/s Backplane Throughput
• Rugged Industrial DIN-Rail Enclosure
• Redundant Power Inputs (10-30 VDC)
• Bi-Color LED’s For Link, Speed, Activity & Duplex Status
516TX-A Specifi cations:
Switch Properties
Number of MAC Addresses: 4,000
Aging Time: 300 s
Latency Typical: 2.1 μs
Backplane Speed: 2.6Gb/s
Switching Method: Store & Forward
Case Dimensions:
Height: 2.3″ (5.8cm)
Width: 7.4″ (18.8cm)
Depth: 3.5″ (8.8cm)
Weight: 2.2 lbs (1.0kg)
Din-Rail: 35mm
Electrical:
Redundant Input Voltage: 10-30 VDC
Input Current: 400 mA@24V
Inrush: 7.0Amp/0.8ms@24V
