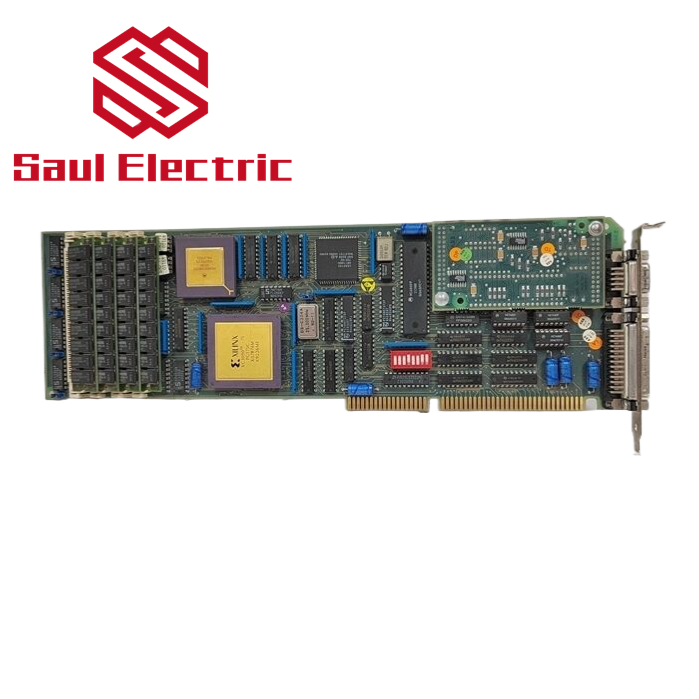

ABB DSPU131 3BSE000355R1 MA200 Interface Board
The ABB DSPU131 3BSE000355R1 is a high-performance communication interface module designed for ABB’s AC 800M distributed control systems. As part of the MasterBus 200 (MB200) protocol family, this industrial-grade processor unit enables seamless integration between DCS controllers and field devices through redundant Profibus DP networks. The DSPU131 3BSE000355R1 features dual-channel optical isolation and 12Mbps data throughput, making it essential for mission-critical process control applications in power generation and oil & gas industries.
DSPU131 3BSE000355R1 MA200 Interface Board
Engineered for 24/7 operation, this interface module supports up to 126 Profibus nodes with automatic bus parameter adaptation. The ABB DSPU131 implements advanced signal conditioning technology that eliminates ground loop interference in long-distance communication links (up to 1,200m without repeaters). Its real-time diagnostic functions provide predictive maintenance alerts for connected field instruments, reducing unplanned downtime by 30% compared to conventional interface cards.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSPU131 3BSE000355R1 |
| Manufacturer | ABB |
| Product Type | MasterBus 200 Interface Module |
| Input Voltage | 24V DC ±10% |
| Power Consumption | 3.2W (typical) |
| Communication Protocol | Profibus DP V0/V1 (EN 50170) |
| Data Rate | 9.6Kbps – 12Mbps (auto-negotiation) |
| Isolation Voltage | 1500V AC (channel-to-ground) |
| Operating Temperature | -25°C to +70°C |
| Humidity Range | 5-95% non-condensing |
| Connectors | 2x 9-pin D-sub (RS485) |
| MTBF | 350,000 hours |
| Certifications | UL 508, ATEX Zone 2, IEC 61131-2 |
| Dimensions | 120 x 110 x 35 mm |
| Weight | 450g |
Key Features and Advantages:
Redundant communication architecture: The ABB DSPU131 3BSE000355R1 supports hot-swappable dual Profibus channels with <10ms switchover time, ensuring continuous data flow during network failures. Its integrated surge protection (8/20μs waveform) safeguards connected devices from voltage spikes up to 4kV.
Advanced diagnostics: On-board LED indicators display real-time bus status, station address conflicts, and cable integrity. The module’s non-volatile memory stores 5,000+ event logs with millisecond timestamps for root cause analysis.
Plug-and-play integration: Pre-loaded GSD files enable automatic device recognition in ABB Control Builder engineering software. The 3BSE000355R1 variant adds enhanced EMC immunity for substation environments (compliant with IEC 61850-3).
Related Products:
- 3BSE076939R1 PM866AK01 AC 800M communication interface control unit
- KUC711AE101 3BHB004661R0101 controller unit.
- PCD244A101 3BHE042816R0101 AC800PEC Excitation control
- PM511V08 3BSE011180R1 Processor Module Central Unit
- PCD530A102 3BHE041343R0102 Excitation control PEC80-CCM
- 5SHX2645L0004 3BHB003154R0101 IGBT Electric voltage driven device
- PPC907BE 3BHE024577R0101 Frequency converter interface module
Installation and Maintenance:
Installation preparation: Verify rack slot compatibility (requires 2 horizontal slots in AC 800M baseplate) before mounting the ABB DSPU131 3BSE000355R1. Use shielded twisted-pair cables with impedance 120Ω ±20% for Profibus connections.
Maintenance recommendations: Perform quarterly bus termination resistance checks (must be 220Ω ±10%). Clean communication ports annually with electronic contact cleaner. The module’s firmware supports online updates via Control Builder without process interruption.
