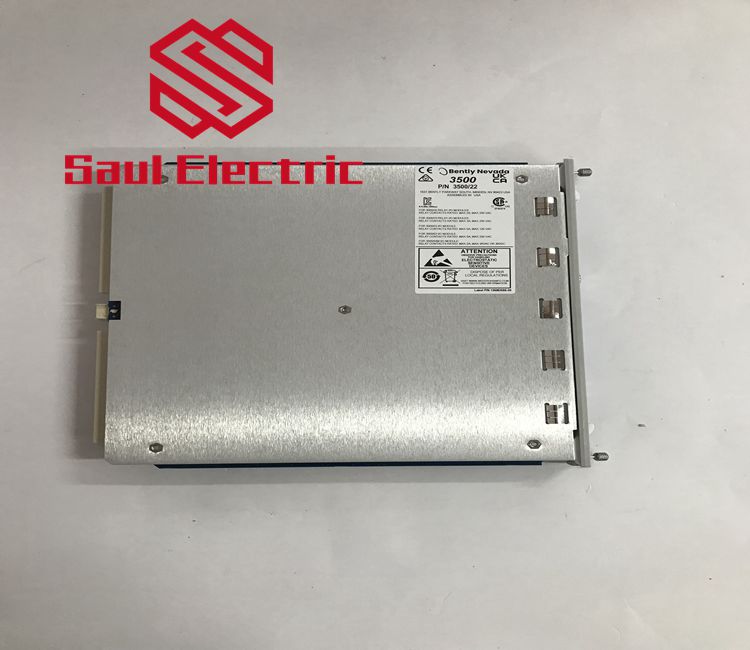

BENTLY 3500/22M 288055-01 Standard Transient Data Interface Module
BENTLY 3500/22M 288055-01 Standard Transient Data Interface Module
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible
software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI
combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M,3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.
146031-01 10Base-T/100Base-TX I/O Module
146031-02 100Base-FX (Fiber Optic) I/O Module
161580 3500/22M TDI Operation and Maintenance User Guide
164466 Network Accessories Datasheet
288055-01 Standard Transient Data Interface Module with USB cable
106M1079-01 Universal AC Power Supply Module
106M1081-01 Universal AC Power Input Module
129486-01 Legacy High Voltage DC Power Supply Module
129478-01 Legacy High Voltage DC Power Input Module
133292-01 Legacy Low Voltage DC Power Supply Module
133300-01 Legacy Low Voltage DC Power Input Module
114M5329-01 High Voltage DC Power Supply
115M7750-01 High Voltage DC PIM
114M5330-01 Low Voltage DC Power Supply
114M5335-01 Low Voltage DC PIM
01720025 Replacement Fuse (for both AC Power Input Module and Legacy High Voltage DC Power Input Module)
01720045 Replacement Fuse (Low Voltage DC Power Input Module and Legacy Low Voltage DC Power Input Module)
120M3877 Replacement Fuse Fast blow rated at 5A/500 Vac Size 6.3 x 32 mm (Universal AC Power Input Module)
131150-01 Power Supply Blank Front Panel (qty 1, includes screws)
128085-01 Power Supply Rear Input Connector Cover (qty 1) Order part 04310251 for screws.
04310251 Screw for Power Supply Input Cover (qty 2)
129767 3500/15 Power Supply User Guide
118M0915-01 Replacement connector for Universal AC Power Input Module
125808-01 Proximitor ET Block Euro Style Connectors
128015-01 Proximitor ET Block Terminal Strip Connectors
132242-01 Proximitor/ Seismic TMR ET Block Euro Style Connectors
132234-01 Proximitor/Seismic TMR ET Block Terminal Strip Connectors
176449-01 3500/40M Proximitor Monitor
125680-01 Proximitor I/O Module with Internal Terminations
126615-01 Proximiotr I/O Module with Extrnal Terminations
135489-04 Proximitor I/O Module with Internal Barriers and Internal Terminations
149716-01 TMR Proximitor I/O Module with External Terminations
Programmability: The BENTLY 133396-01 digital quantity input module is typically programmable, allowing the user to configure the input signal type, sampling frequency, and trigger conditions according to their specific needs.
Industry standards: These modules usually comply with industry standards such as temperature range, protection class and vibration resistance to meet the requirements of industrial environments.
