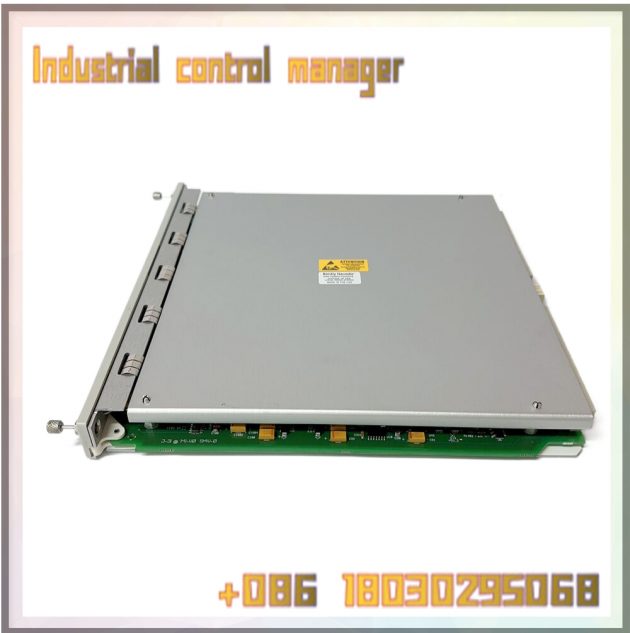

BENTLY 350022M 138607-02 Interface module

BENTLY 350022M 138607-02 Interface module

350022M 138607-02 BENTLY technical specifications

350022M 138607-02 The AC and DC power supplies are half-height modules and must be installed in the slot on the left side of the rack. The 3500 rack can contain one or two AC and DC power supplies in any combination.

Any – Power supply

In order to

Power the entire rack. When two power supplies are installed in one rack, one of the lower side slots acts as the primary power supply and the other in the upper slot acts as the backup power supply. If installed, the first power supply is

Backup of power supply. As long as a power supply is installed, removing or inserting any power module will not interrupt the operation of the rack. 35002M138607-01 AC and DC power supplies accept a wide range of input voltages and convert them to voltages acceptable to other 3500 modules.

The highly modular design of the 3500 system includes :.3500/05 instrument frame (required)

– or two 3500/15 power supplies (required)

.3500/22M Transient Data interface module or 3500/20 Frame interface module (required)- or two 3500/25 key phase modules (optional)

.3500 Framework Configuration Software (required)

One or more 3500/XX monitor modules (required)

One or more 3500/32 relay modules or 3500/34 triple redundant relay modules (optional) One or more 3500/92 communication gateway modules (optional)

3500/93, 3500/94 or 3500/95 display devices or 3500 operator display software running on a compatible PC. Internal or external intrinsic safety barriers, or electrical isolation devices for installation in hazardous areas.
