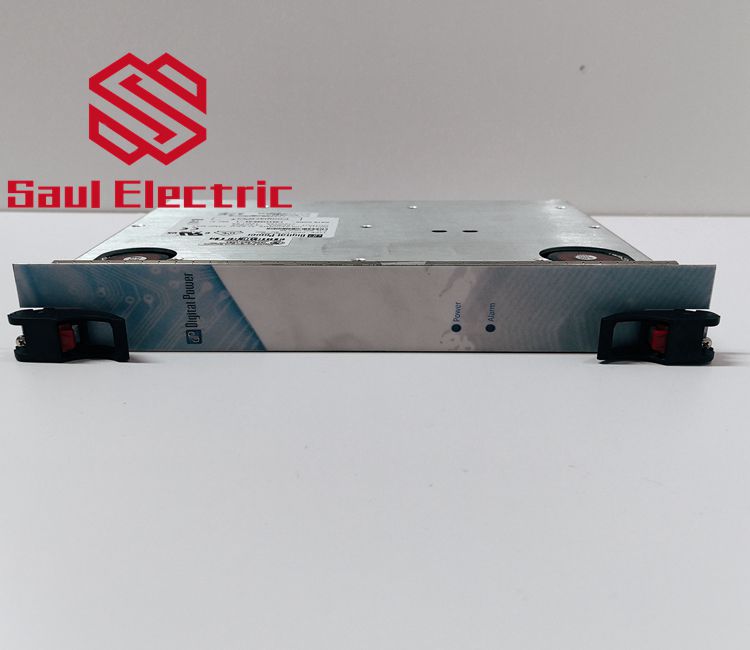

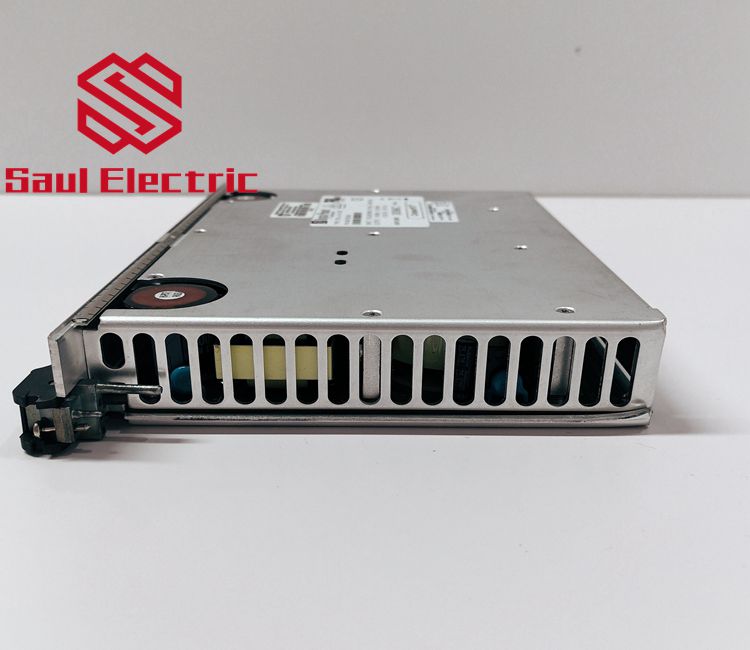

CPCI-AC-6U-500 CPCI power supply delivering 500W continuous power. Compliant with the PICMG 2.11 Telkoor’s unique design using 2 converters in parallel one for the 3.3V and one for the 5V enable max. current draw on the two outputs together

Efficiency – better than 81% ( High line )

500Watt output power

3.3V output current Up-To 80A !!!

85-264 VAC Wide-Range with Unity PFC

Operation Temp. -5ºC – +55ºC – No De-rating

“Hot-Swap” Active Current share on V1 & V2

N+ 1 Full redundancy operation

No Minimum loading requirement

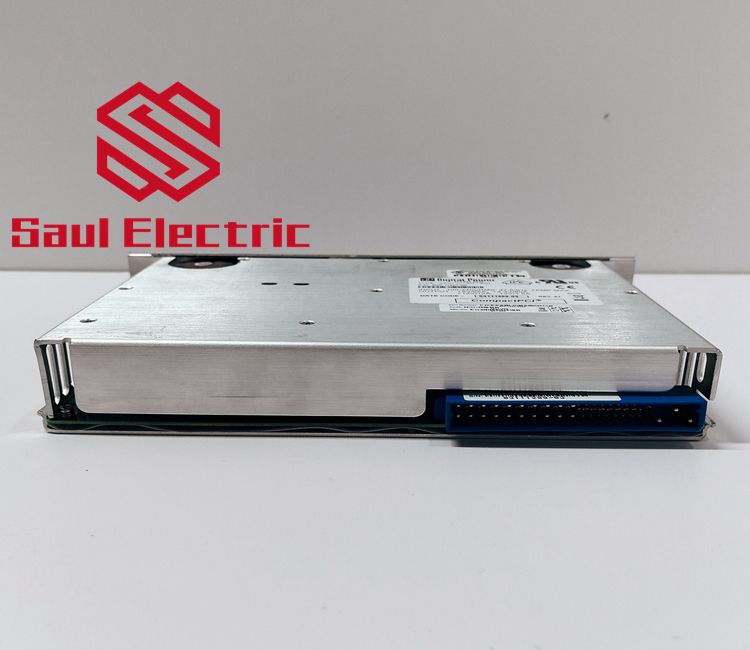

Standard PICMG® 47Pin Connector

Safety Per cUL CSA & CE Marking

Meets FCC-68 Part 15 Class-B & EN-55022 Class-B with external line filter

I²C Data Bus (optional) for H/W configuration Date-Code and more…

Faceplate & Extractor Can be modified
