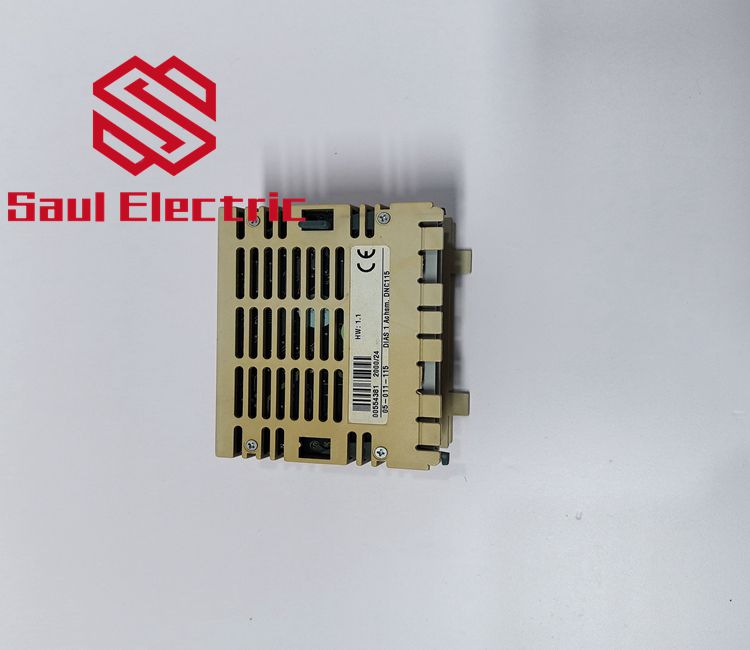

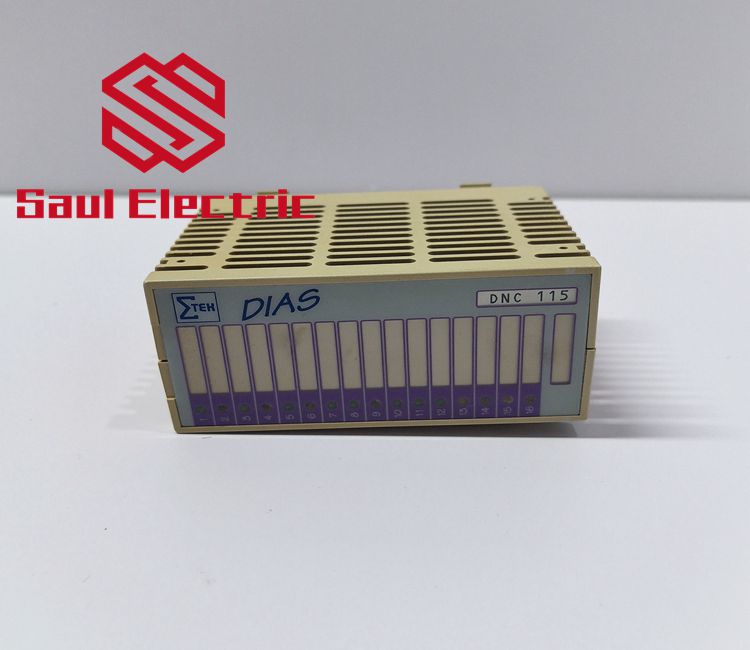

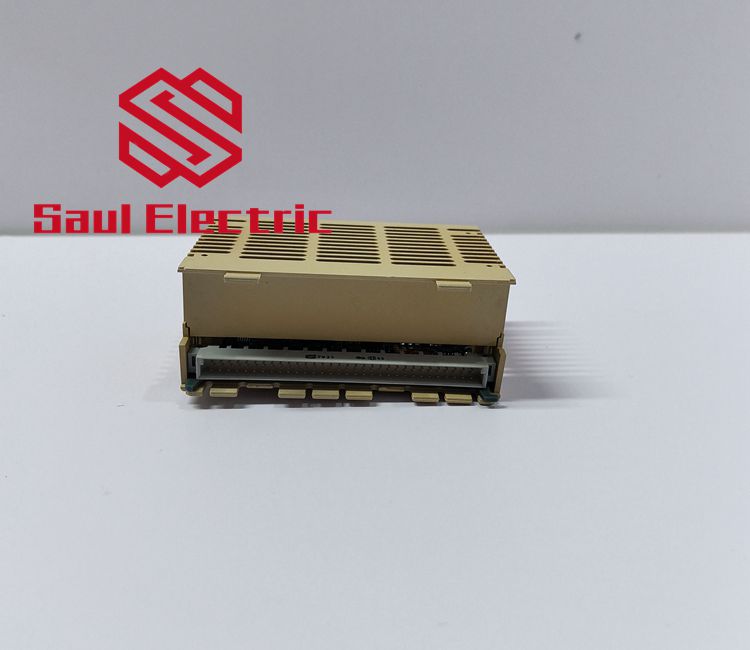

DNC115 Positioning module
DNC115 Positioning module
The DNC115 positioning input is designed for incrementers with RS422 levels. Three digital inputs are available for the reference drive or for the monitoring of the end positions.The set value output is made by a 12 bit D/A converter. There are 2 potential free opto-coupler outputs (e.g. for direct control of the signals “release” and “direction” to the motor control).
Input signals incrementer signals (A, /A, B, /B, R, /R) / RS422 level with 150 Ω load
Input frequency 125 kHz max.
Counter frequency 500 kHz max.
Gating 4 times
Counter resolution 16 Bit
Power supply +5 V / 0.6 A protected against short circuiting
