GE DS200DCFBG1BLC Industrial control products PLC/DCS system power module

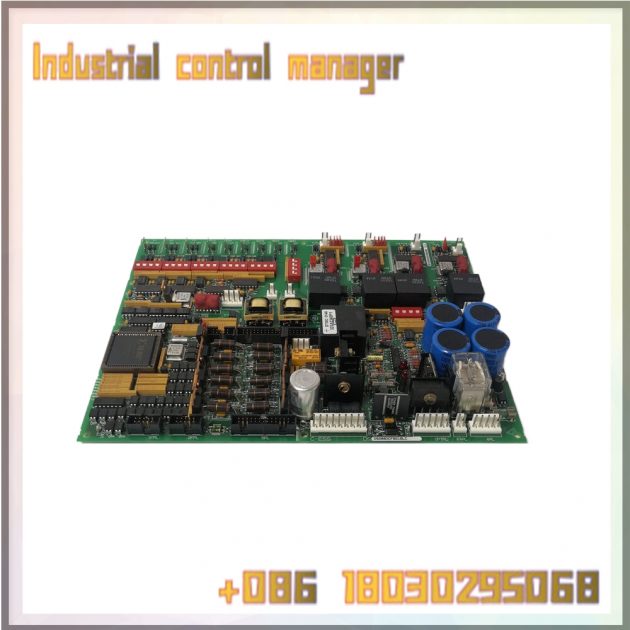

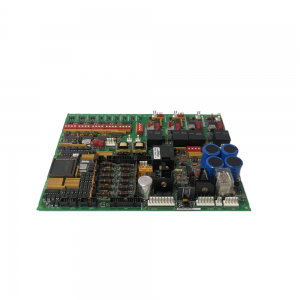

The DS200DCFBG1BLC is a power board designed by General Electric for the Mark V Series optional and replacement boards. Members of the family are cross-compatible with many GE branded exciters and drives. The drives of DC2000, AC2000, CB2000, ME2000, and FC2000 can accept this power strip. The card provides system control level power to the driver it is mounted on and power to the case fan. The board’s source AC input is rated from 38 to 115 VAC. The frequency that accompanies this VAC ranges from 0 to 500 kHz, depending on the strength of the input voltage.
The DS200DCFBG1BLC contains a number of complex circuit systems designed to power most drivers. The card includes AC and DC monitoring circuit, control level power supply circuit, motor excitation power supply circuit and drive circuit. The user can configure twelve jumpers and seven dip switches on the card to meet any external needs.
The onboard status is communicated to the user through the onboard indicator. Two leds and a neon indicator light are built into the card to provide users with important diagnostic and status information. The three fuses on the board are protected, ensuring that interruptions or surges do not interrupt the current.
Be sure to regularly monitor voltage levels on a board that integrates five test points. You must follow the installation parameters provided by the DS200DCFBG1BLC and the drive. These guidelines will ensure that the board and the system on which it is installed operate as intended. Wiring and installation guide. Technical support for all motherboards in the Mark V series was initially provided by manufacturer General Electric.
