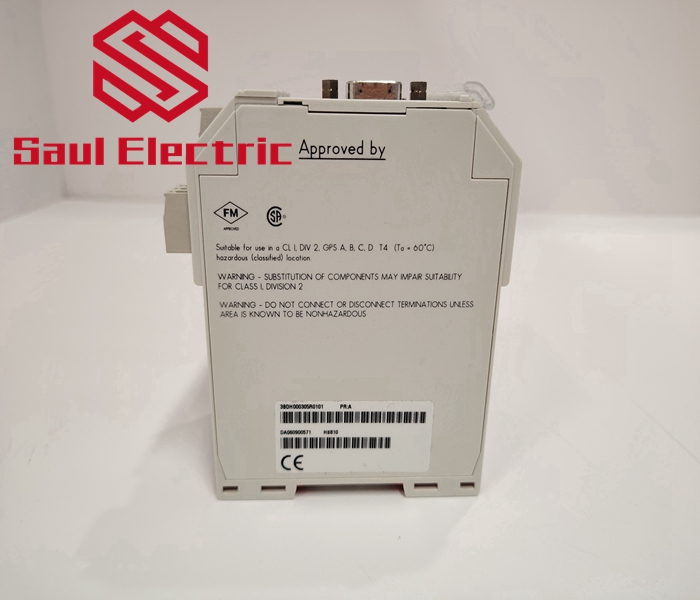

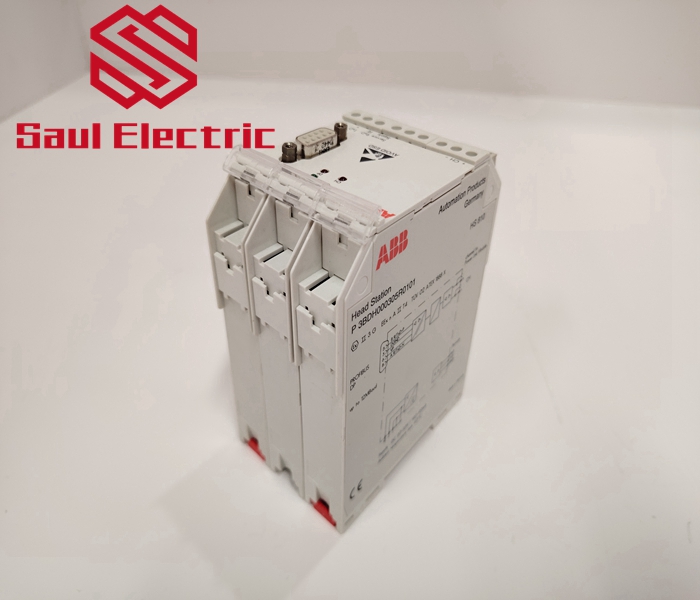

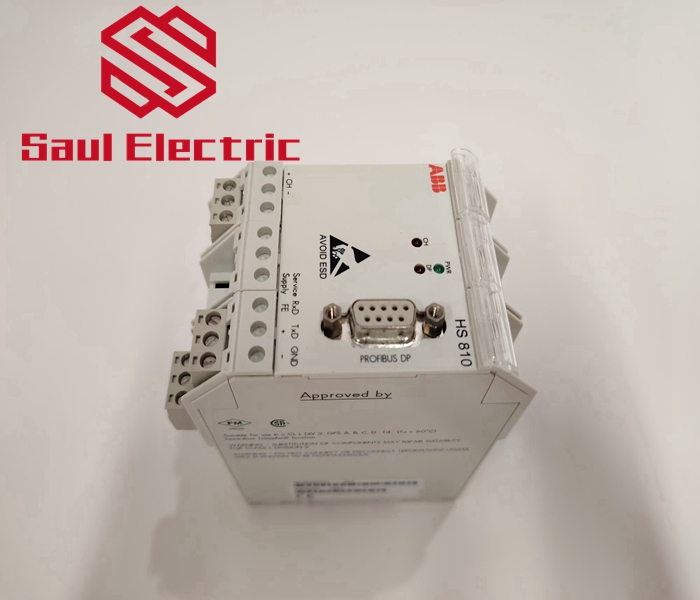

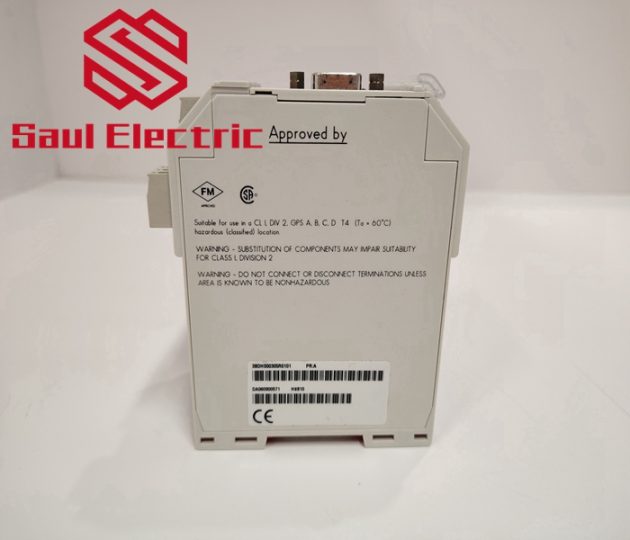

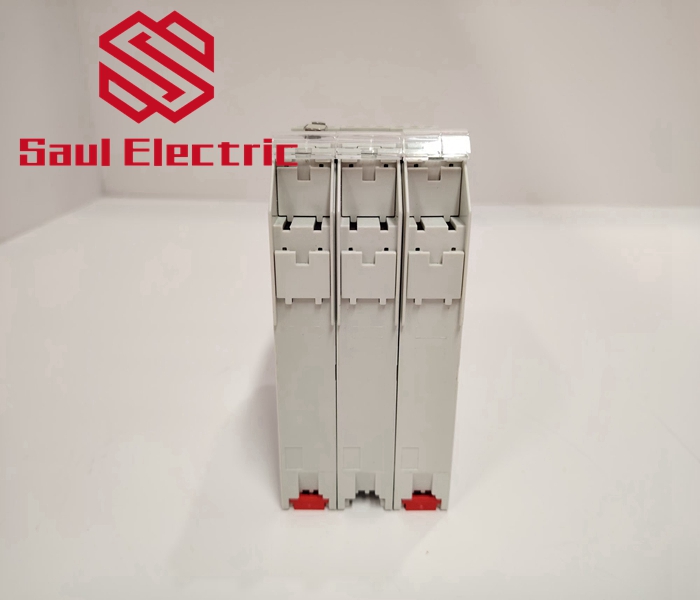

HS810 3BDH000305R0101 PROFIBUS couplers
HS810 3BDH000305R0101 PROFIBUS couplers丨DP/PA linking device LD 800P
Fieldbus couplers are primarily used to connect two or more fieldbus networks to each other in order to transfer data and instructions between these networks. It can establish reliable communication links between different field equipment and control systems, and realize real-time data exchange and sharing.
HS810 3BDH000305R0101
HS810 3BDH000305R0101 PROFIBUS couplers device Benefits
- Provides link between the FF’s High Speed Ethernet (HSE) protocol and up to four H1 links
- Transparent configuration of connected H1 devices from host system
- Allows access to blocks in H1 devices (Client/Server)
- Four Independent H1 Link Masters (LAS)
- Publish/Subscribe (H1) (with up to 4 sub-cycles)
- Republishing of data from one H1 link into another or from H1 to HSE
- Firmware update via download
Degree of protection：IP 20
Operating temperature：0° C … +55° C,non-vertical mounting and hampered air convection may reduce upper temperature limit
Storage temperature：−20° C … +70° C
Relative humidity：0% … 95%, non-condensing
Number of channels：1
Port ：Ethernet 10BASE-T/100BASE-TX, TJ45
Ports：FF H1 3-pole screw terminals (pluggable)
transformer coupling
galvanically isolated
PM891K01 3BSE053241R1 Processor unit (support redundant PM891K02)，PFSK151 3BSE018876R1/PFSK152 3BSE018877R1 Signal processing board Origin Sweden (SE)，UFC760BE142 3BHE004573R0042 Interface board，5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101，PFTL201C-10.0KN 3BSE007913R0010 Pillow block tensiometer horizontal load cell，GFD563A102 3BHE046836R0102 丨AC800 PEC丨Performance controller rectifier field，DASO110 57120001-AT Analog Output 4 Channels
