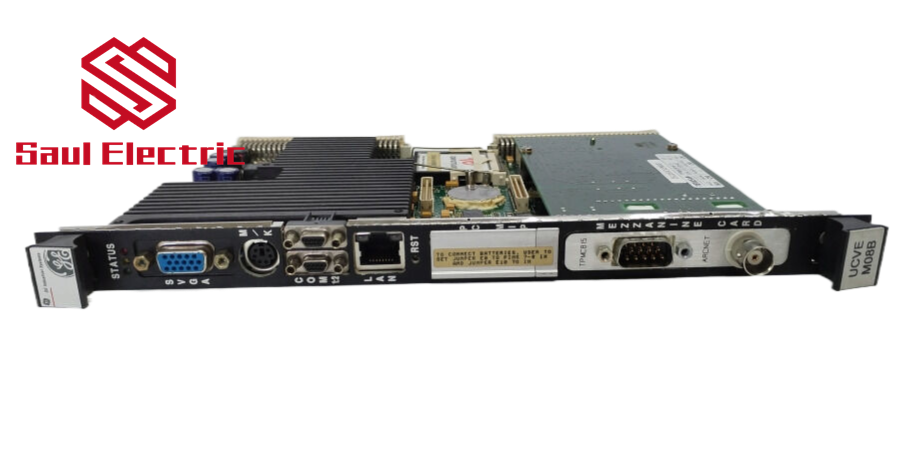

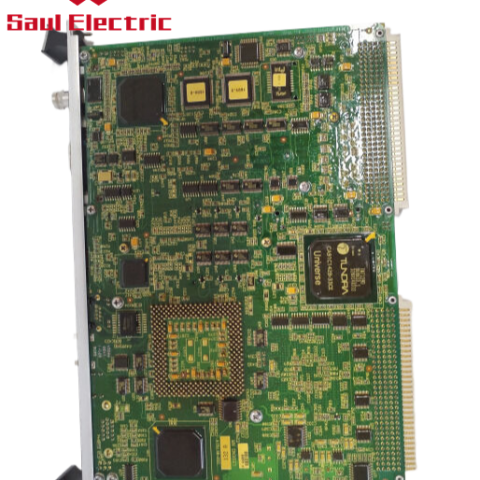

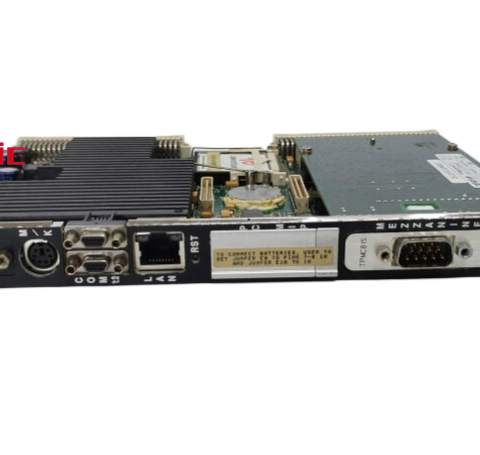

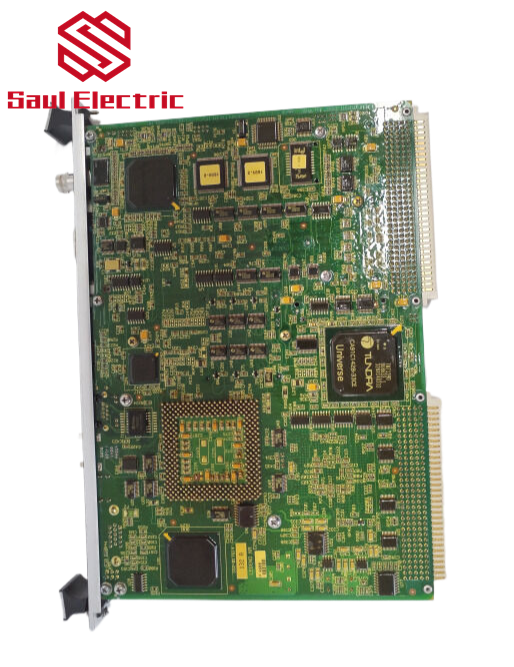

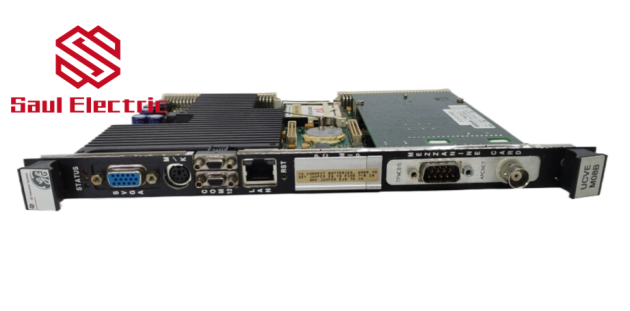

IS215UCVEM08B Printed Circuit Board
IS215UCVEM08B Printed Circuit Board

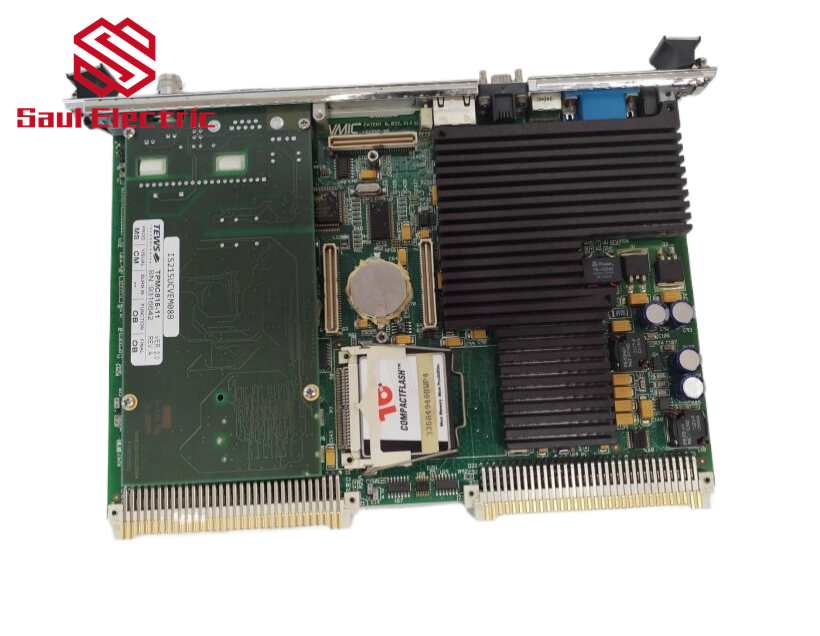

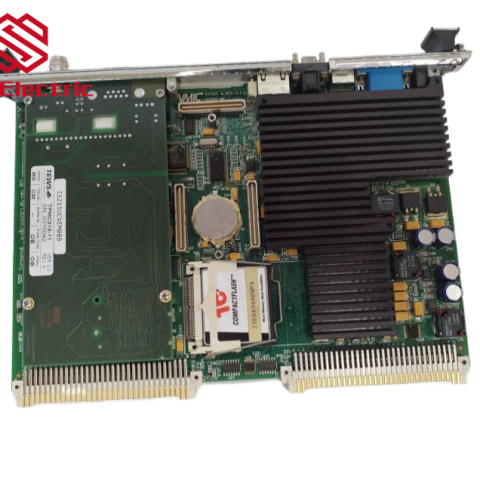

The IS215UCVEM08B is a printed circuit board that is part of the Mark VI Speedtronic turbine family manufactured by General Electric. It features a small round lithium battery, several link points, four cobalt PCB-mounted electrolytic capacitors, and many other types of capacitors. In addition, it has a large section of black wire, which is used as a cooling unit for the circuit board.
The IS215UCVEM08B is a printed circuit board that is part of the Mark VI Speedtronic turbine family created by General Electric. It has some specific functions and features:
- Small round lithium battery: The IS215UCVEM08B has a small round lithium battery on the board to provide power or backup power.
- Link points: There are several link points on the board for connecting to other boards or devices.
- Capacitors: A number of capacitors, including cobalt PCB mounted electrolytic capacitors, are installed on the circuit board to store electrical energy or filter out noise in the circuit.
- Cooling unit: There are black lines on the circuit board, which are used as cooling devices to help dissipate the heat generated by the circuit board and maintain the stable operation of the circuit board.
- Diode: A circuit board has a diode, which is an electronic component that only allows current to flow in one direction and is used to protect the board from damage caused by overvoltage or reverse current.
- Jumper pins: Used to control smaller energy circuits around the board.
- SD Card: The IS215UCVEM08B has an SD card slot on the board that can be inserted to store data or run software.
The IS215UCVEM08B is a feature-rich printed circuit board primarily used in General Electric’s Mark VI Speedtronic turbine family. It can be connected with other circuit boards or devices, with the storage of electrical energy, filter noise, control circuit and other functions, to provide guarantee for the stable operation of the whole system.
IS215UCVEM08B Printed Circuit Board

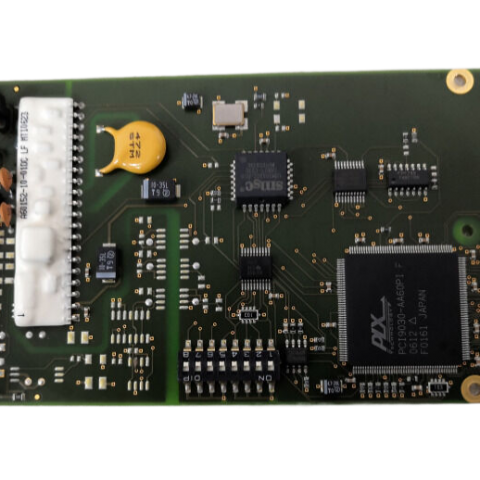

IS215UCVEM09B Ethernet connected circuit board
