IS215VCMIH2CA IS200VCMIH2CAA VME controller card
specification
Part number: IS215VCMIH2CA
Manufacturer: General Electric
Product type: VME controller card
Series: Mark VI

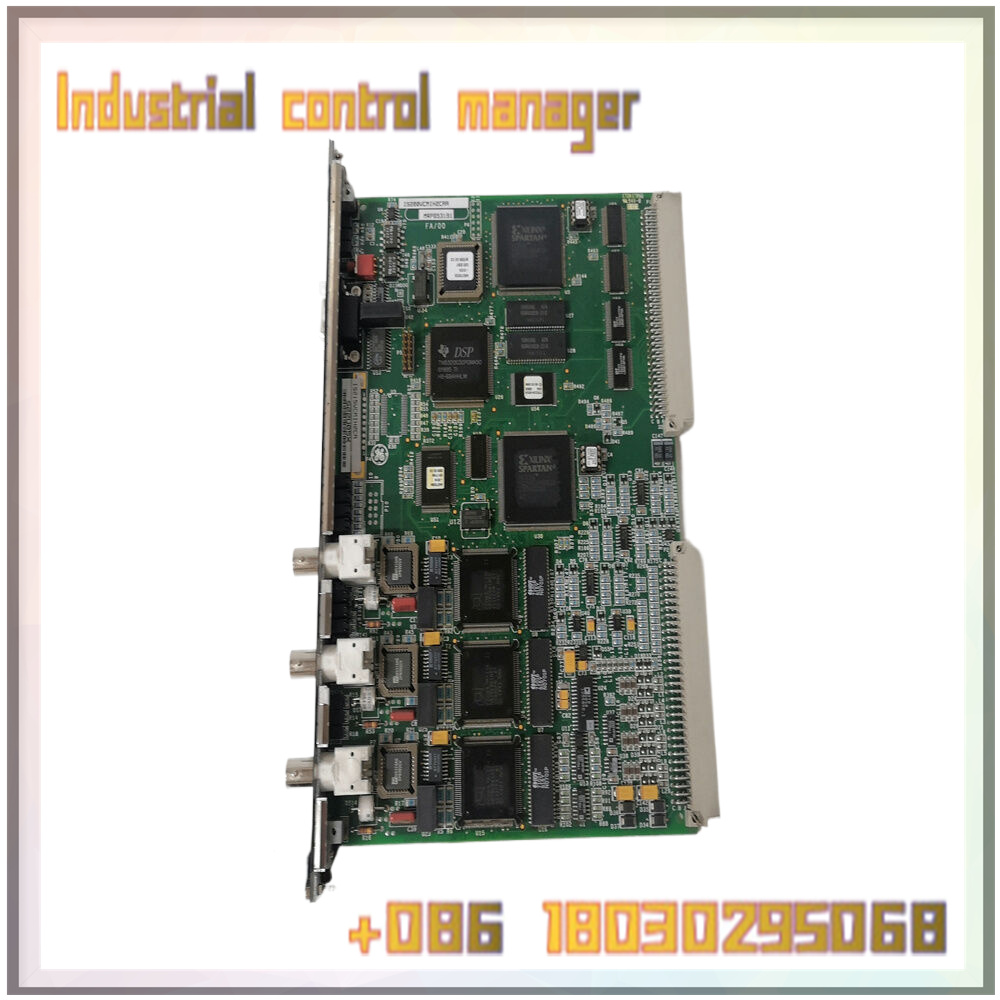

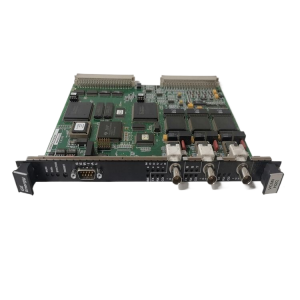

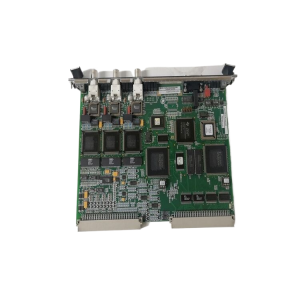

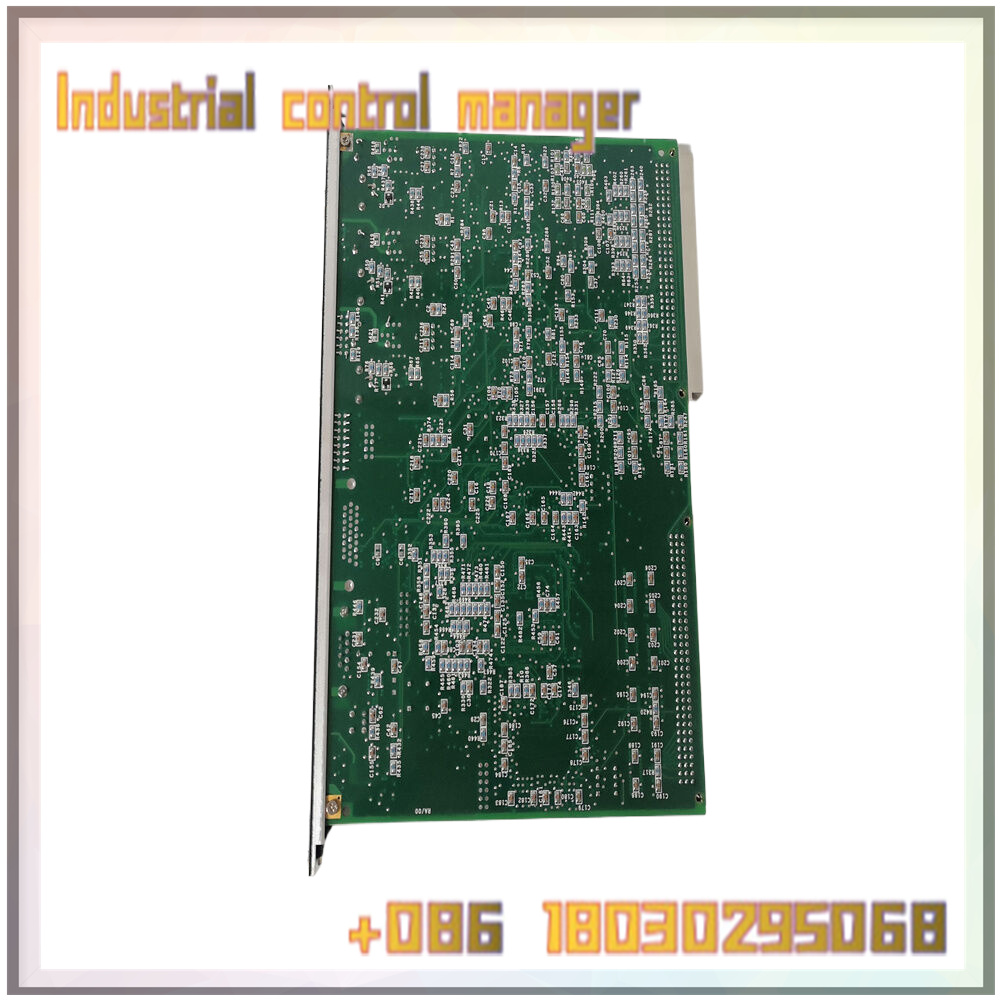

The IS215VCMIH2CA is a VME control card developed by GE. The UCVG is a single-slot board with 128 MB flash memory and 128 MB SDRAM Intel ultra-low voltage Celeron 650 MHz processor. Connectivity is provided by two 10BaseT/100BaseTX (RJ-45 connectivity) Ethernet ports. The first Ethernet port provides for configuration and peer communication with the UDH.
The performance of the single-slot UCVG is comparable to that of the UCVE and UCVF and can be used to replace any of the earlier driver versions without the need to upgrade to the backplane.

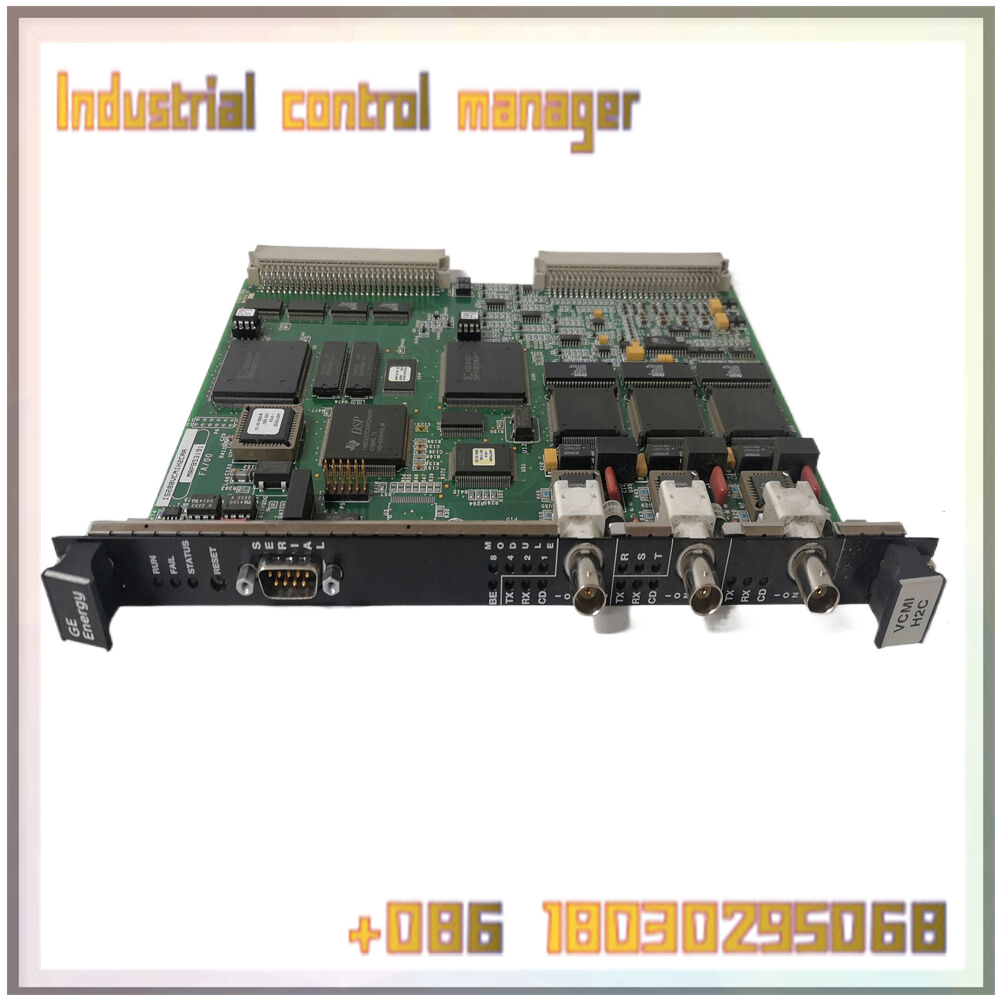

IS215VCMIH2CA – Front panel components
Switch to Reset (allows you to reset the system from the front panel)
A monitoring port.
RS-232C port COM1 is used for initial driver configuration and RS-232C port COM2 is used for serial communication
ETHERNET 1 – Primary Ethernet port (toolbox) for communication over the Unit Data Highway (UDH)
ETHERNET 2 – Secondary Ethernet port for I/O communication expansion.
