Kollmorgen is an international supplier of industrial automation products and servo system amplifiers.
This 60WKS-CE240/12PB is a high quality servo amplifier for… Production drive This brushless synchronous servo motor belongs to the sadomasochist series.
This model operates in a closed steel switchgear cabinet. Servo amplifiers operate at 240 V and are best suited to run servo motors with ladder rectification and RLG/ speed feedback. The power supply part is implemented as a PWM transistor level (three-phase). The trapezoidal output current and motor speed are controlled by PI controller. This model comes with a custom PCB that contains all the adjustments and parameters that the user can change.

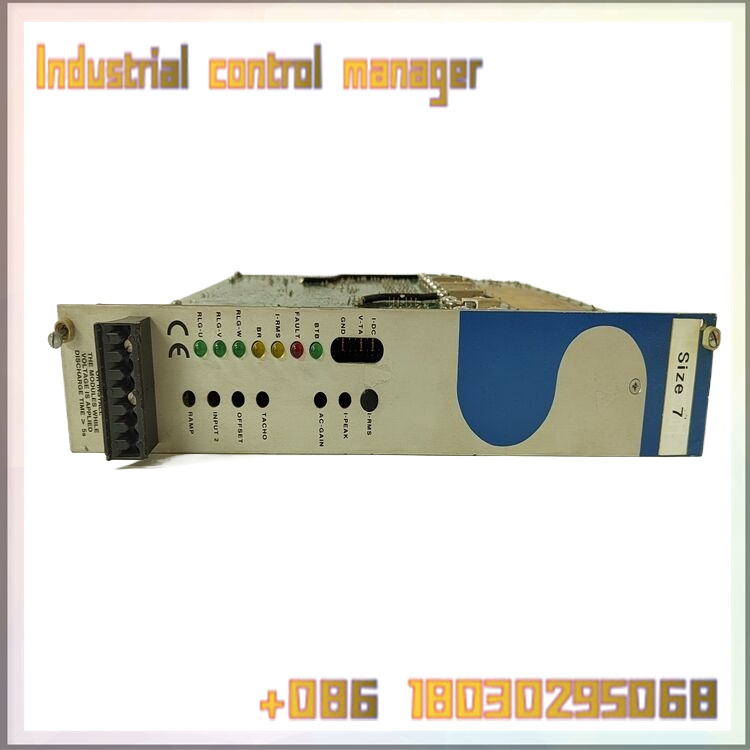

The 60WKS-CE240/12PB is also equipped with a smoothing capacitor. The servo amplifier also has ballast switch and limit switch inputs. Due to its auxiliary power supply, the device can generate an auxiliary voltage from the DC link voltage. The device also contains leds for all important operating states.
Backup relays are also equipped with isolating contacts for fault signals. The model also contains input from the rotor position sensor. Thanks to its PI/ speed/current controller, servo amplifiers can also be used for speed and current control. The device contains a DC link and a fuse for the auxiliary power supply. The device also includes ground fault protection for the motor connection terminals. In addition to temperature monitoring of the power output transistor, the device also has undervoltage and overvoltage protection. When using this model, the minimum motor inductance is 1.2 mH.
