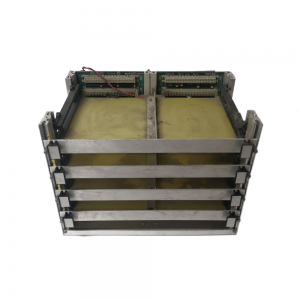

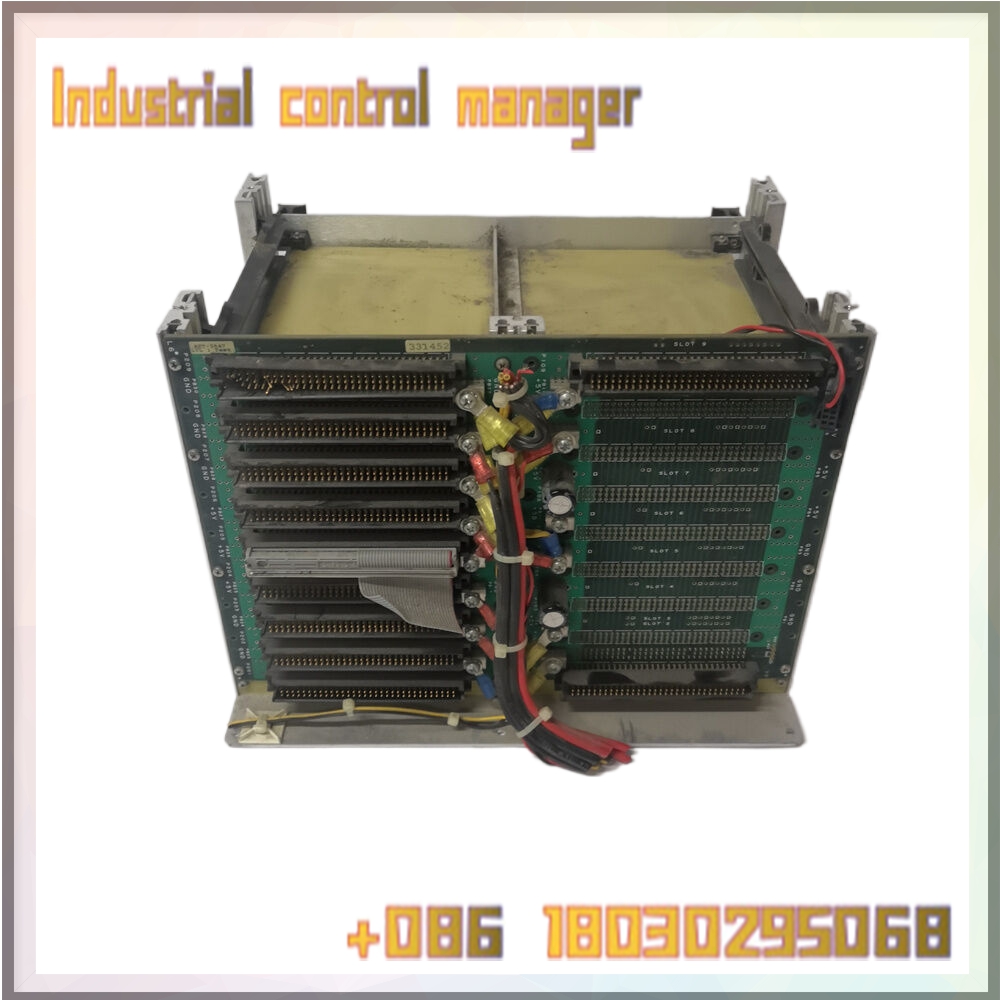

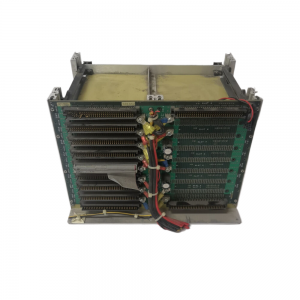

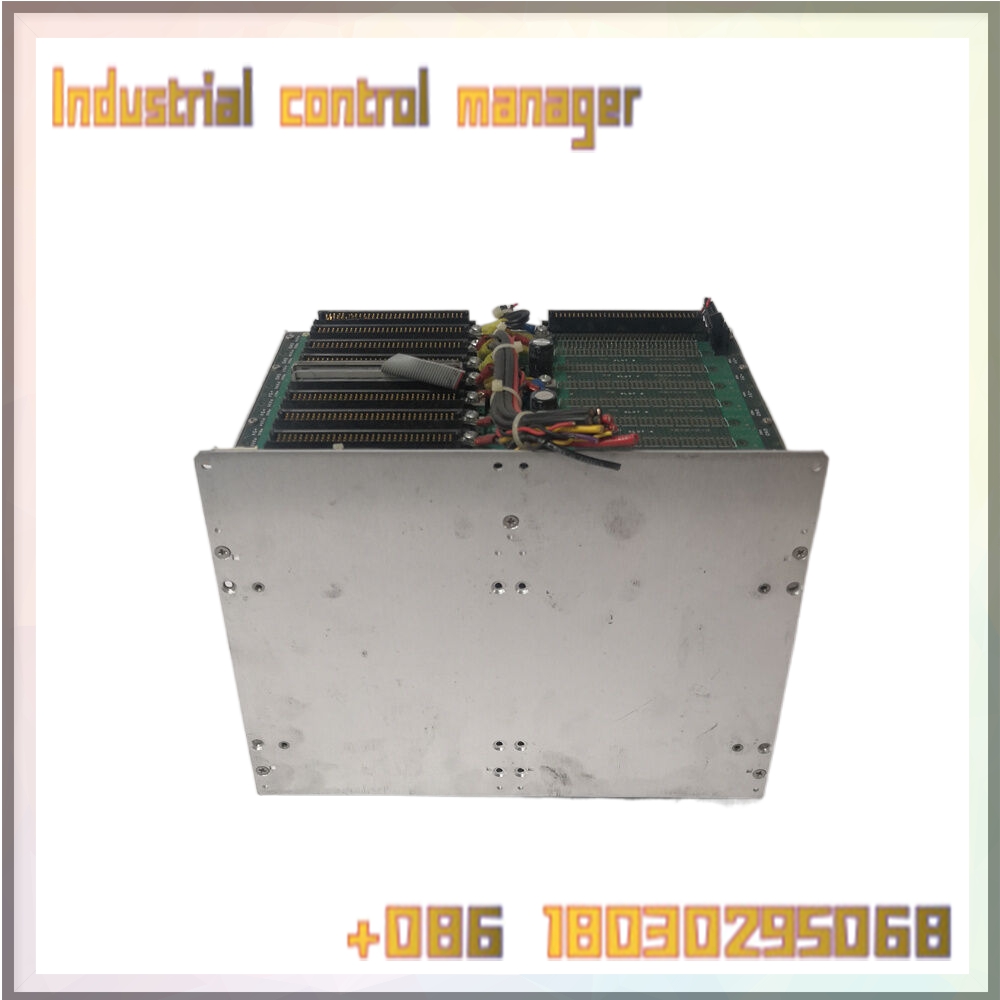

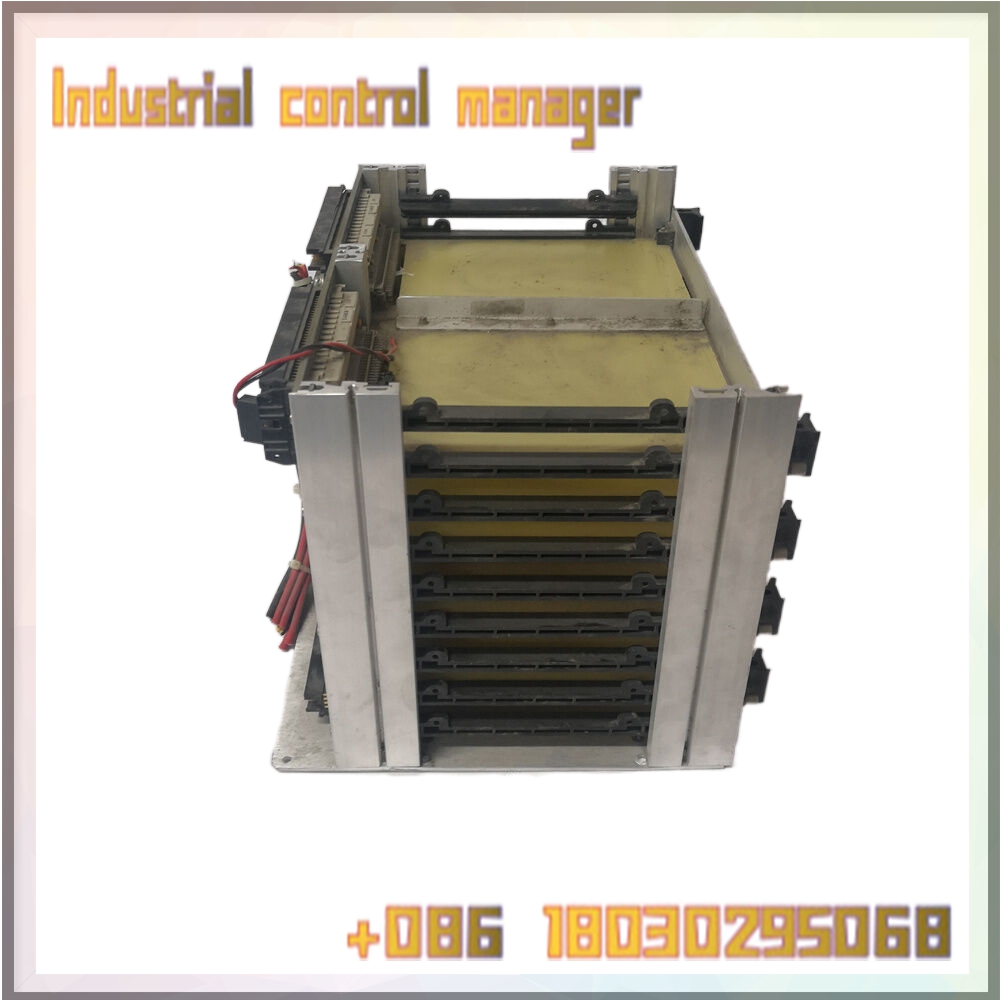

MOTOROLA AET-3047 controller module
The programmable controller is composed of internal CPU, instruction and data memory, input and output unit, power module, digital analog and other units. Motor controller, as one of the core components of electric vehicles, is a decisive factor in the dynamic performance of vehicles.
MOTOROLA AET-3047 controller module
It obtains the needs of the vehicle from the vehicle controller, obtains electric energy from the power battery pack, and obtains the current and voltage needed to control the motor through the modulation of its own inverter, and provides it to the motor, making the speed and torque of the motor meet the requirements of the vehicle.
MOTOROLA AET-3047 controller module
1 Position and function of motor controller in electric vehicle
From the outside, the general motor controller has less than two pairs of high-voltage interfaces. A pair of input interfaces for connecting the power battery pack high voltage connection; The other pair is a high-voltage output interface that connects the motor to provide control power
At least one low-voltage connector, all communications, sensors, low-voltage power, etc. are led out through this low-voltage connector, connected to the vehicle controller and power battery management system.
