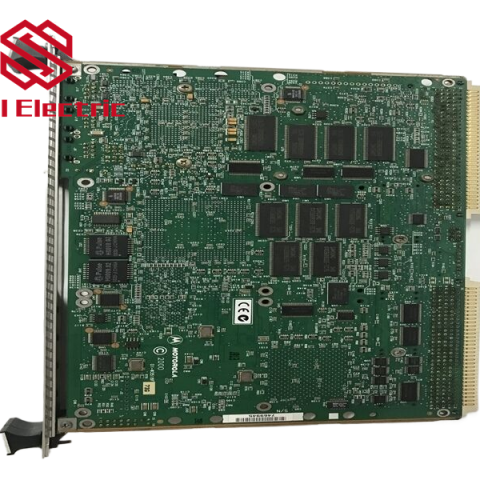

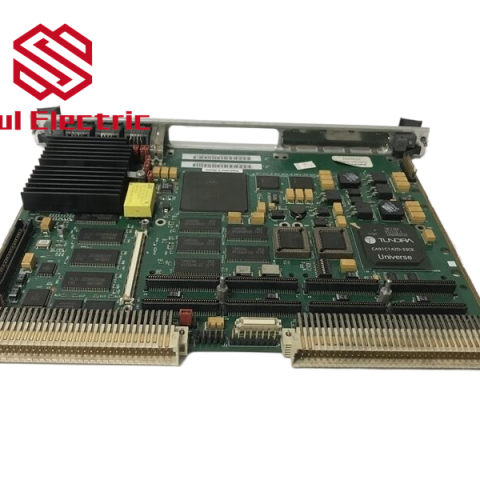

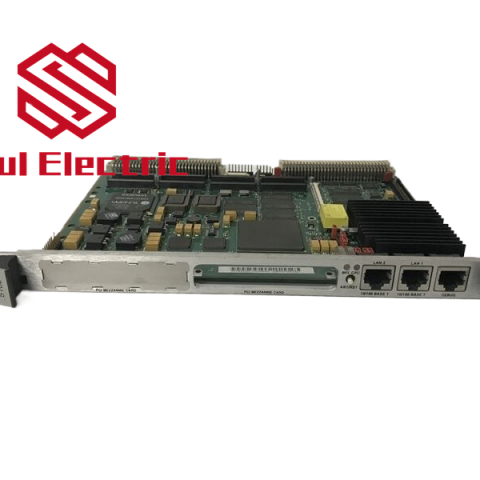

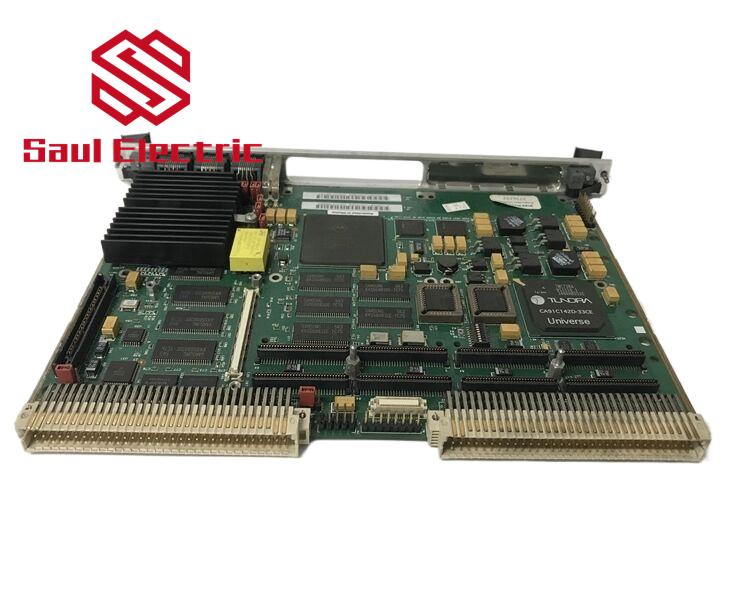

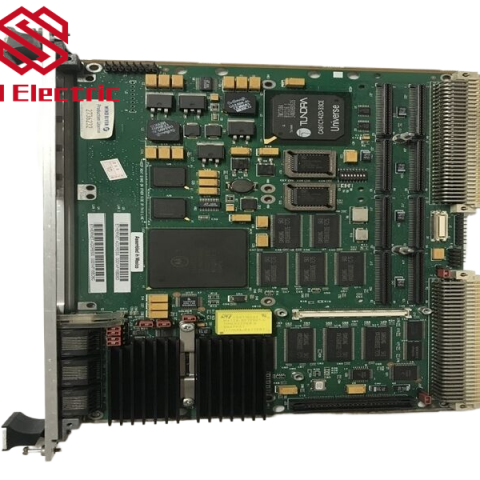

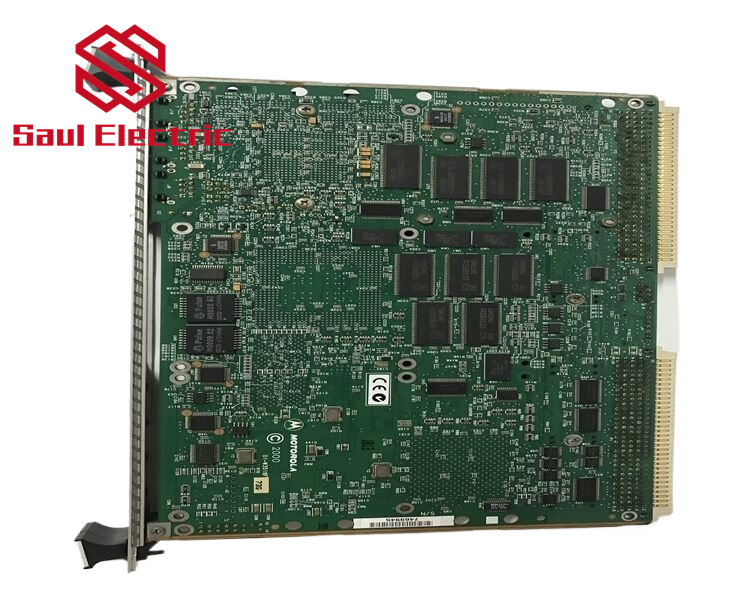

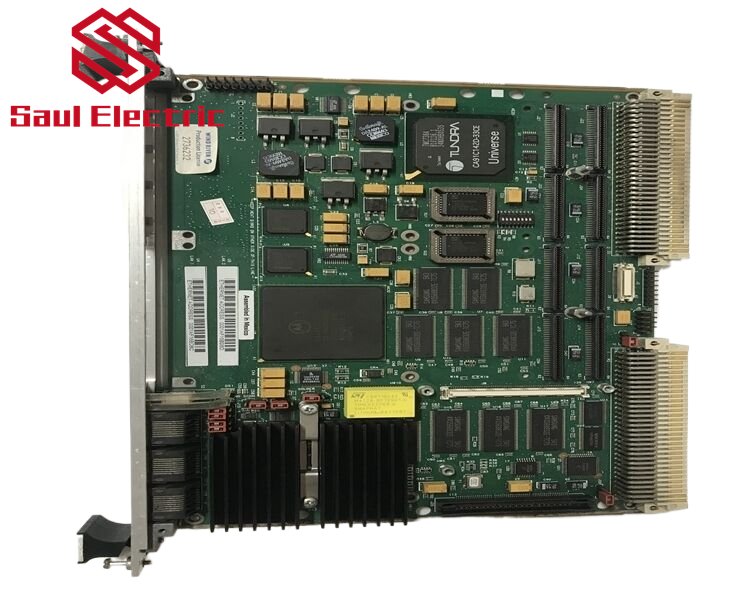

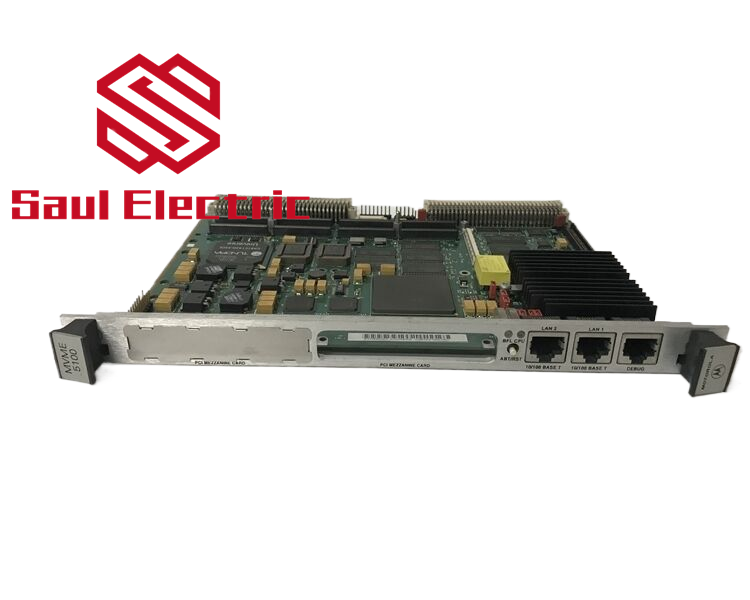

MOTOROLA MVME5100 VMEbus Processor Module
MOTOROLA MVME5100 VMEbus Processor Module

The Emerson Network Power MVME5100 series is the flagship of the Emerson PowerPlus II VME Architecture line, enabling supercomputing levels of performance in a single VMEbus slot. Based on an integrated PCI bridge-memory controller ASIC designed by Emerson, PowerPlus II takes memory performance to new levels with 582MB/s memory read bandwidth and 640MB/s burst write bandwidth.

The MVME5100 series utilizes the PowerPlus II Architecture to support full PCI throughput of 264MB/s without starving the processor from its memory. The MVME5100 is designed to meet the needs of OEMs servicing the defense and aerospace, industrial automation and medical market segments.

MPC7410 or MPC750 microprocessor with 32KB/32KB L1 cache
Up to 2MB of secondary backside cache
100 MHz frontside bus
Up to 512MB of on-board ECC SDRAM – expandable up to 1.5GB with optional RAM500 memory expansion modules
17MB flash memory
Dual IEEE P1386.1 compatible 32/64-bit PMC expansion slots
64-bit PCI expansion mezzanine connector allowing up to four more PMCs
Dual 16550 compatible async serial ports
