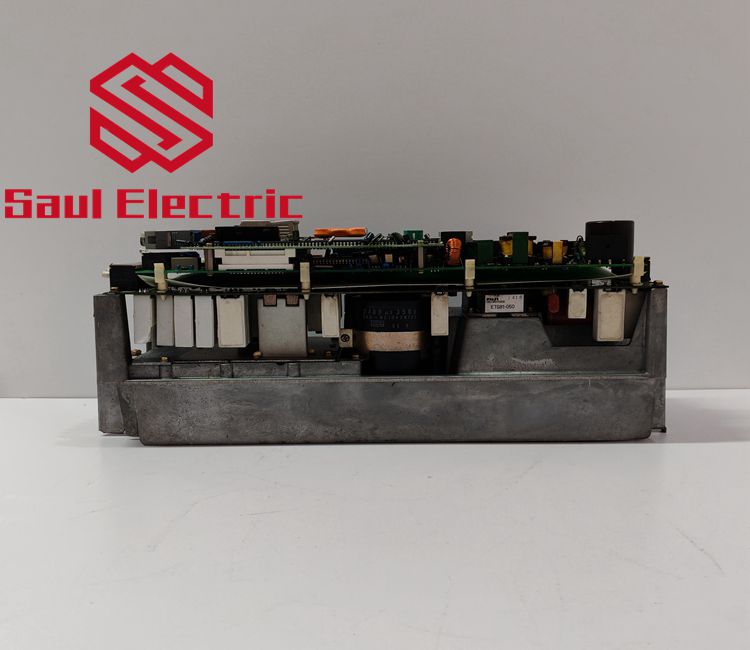

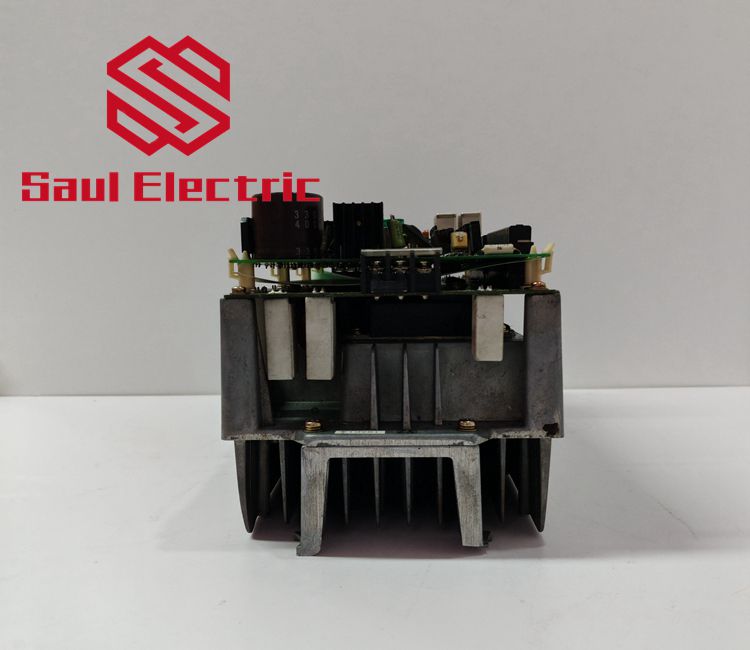

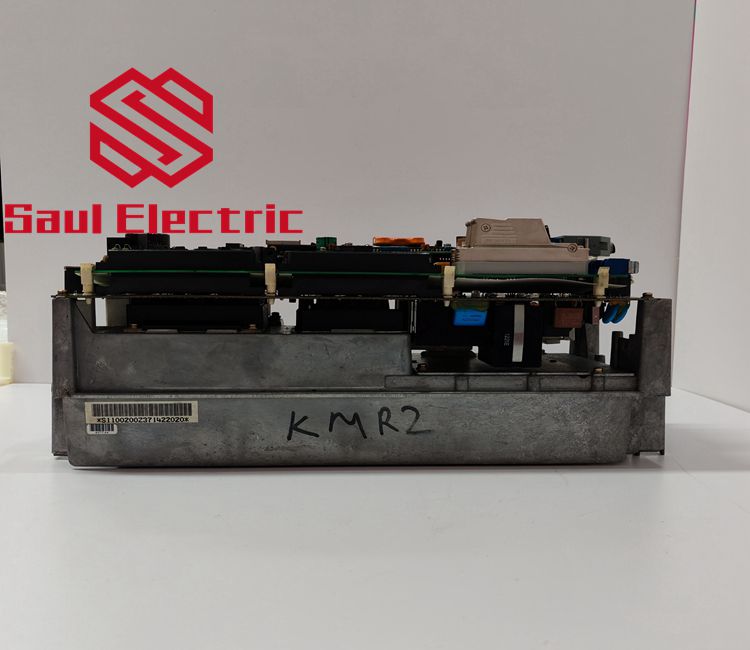

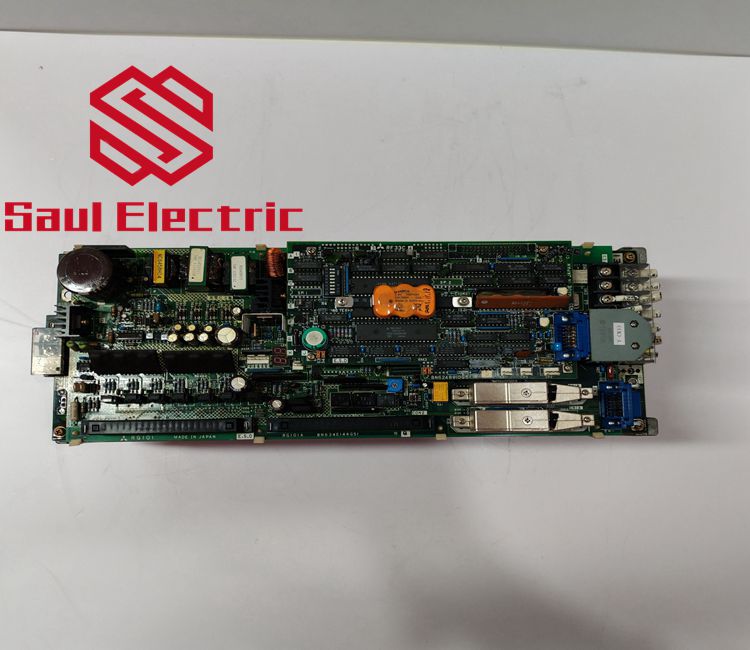

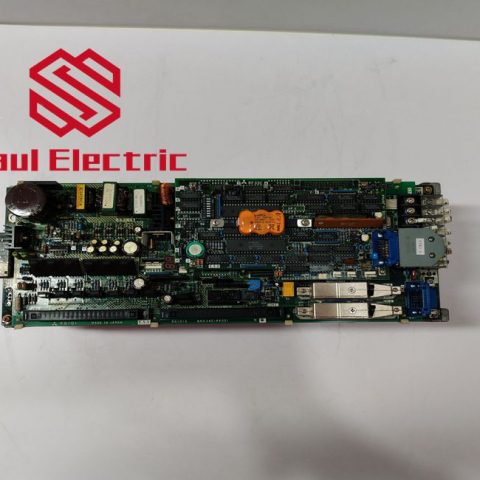

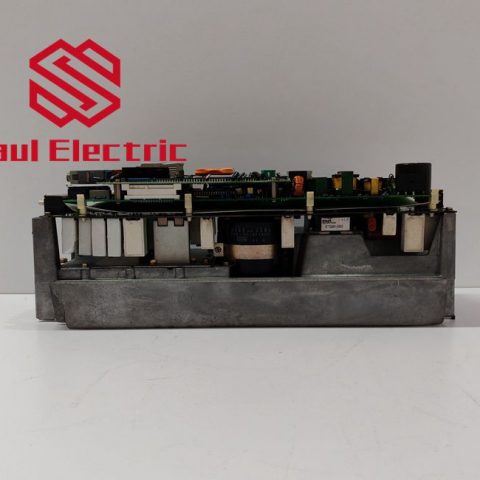

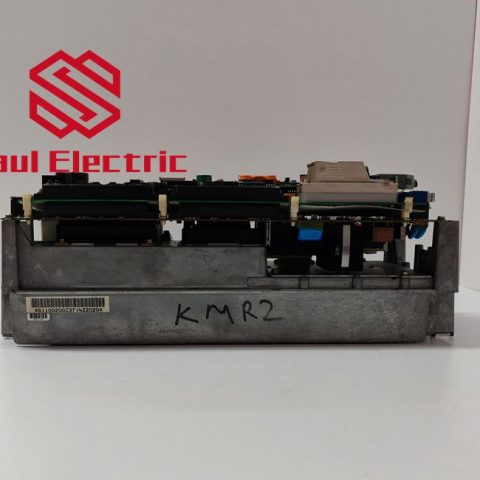

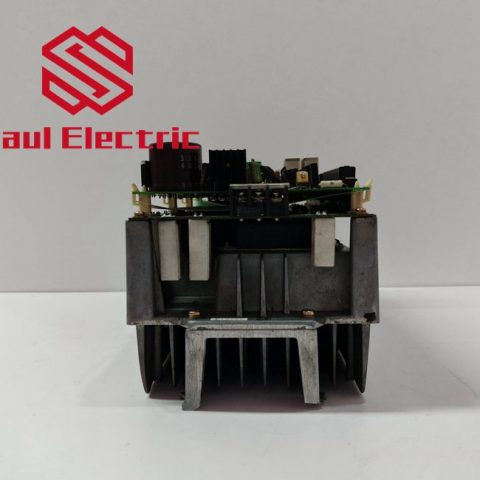

Have used MR-S11-200-Z37 Driver device

MR-S11-200-Z37 Driver device
MR-S11-200-Z37 Driver device
Have used MR-S11-200-Z37 Driver device

MR-S11-200-Z37 motor driver module is an electronic module used to drive the motor, its main function is to convert the electrical energy from the power supply to the electrical energy required by the motor, and control the motor start and stop, speed, direction and other parameters, so as to achieve the normal operation of the motor. The MR-S11-200-Z37 module plays a crucial role in the motor control system.

The working principle of the motor driver module is similar to that of the electronic transformer, which can transform and control the voltage, current and other parameters provided by the external power supply to generate the current suitable for driving the motor. In the motor drive process, the driver module first receives electrical signals from the controller, which are usually low-power digital signals. The driver module then converts these signals into current or voltage signals suitable for motor drive through the electrical signal conversion function. Common conversion methods include analog signal conversion (such as DAC conversion) and digital signal conversion (such as PWM signal conversion). After the signal conversion is completed, the driver module further uses current control technology, such as H-bridge circuit, power amplifier, etc., to output the converted current signal to the motor and drive the motor to rotate.
MR-S11-200-Z37 Driver device
