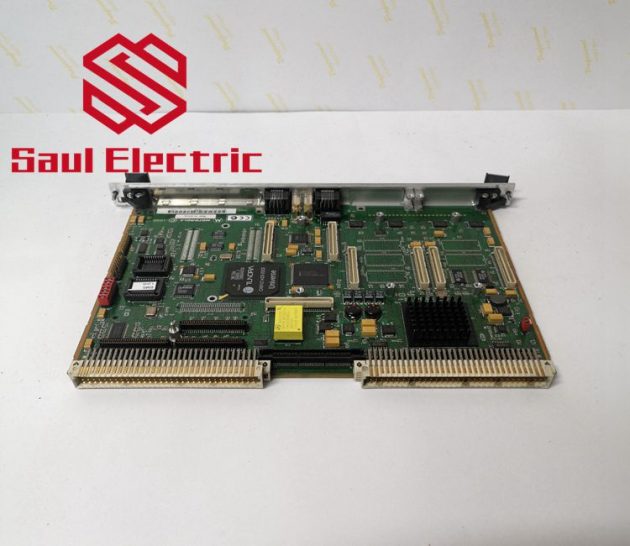

Motorola MVME2100 Modular single-board computer providing high-performance expansion I/O

MVME2100 Modular single-board computer providing high-performance expansion I/O
MVME2101-1 200 MHz MPC8240, 32MB SDRAM, 5MB Flash, original VME Scanbe front panel and handles
MVME2101-3 200 MHz MPC8240, 32MB SDRAM, 5MB Flash, IEEE 1101 compatible front panel with injector/ejector handles

The MVME2100 series of VME processor modules is a family of highly modular singleboard computers for VME applications. At the heart of the MVME2100 is the MPC8240, a highly integrated PowerPC architecture microprocessor with an MPC60x class core, an advanced memory controller, and a peripheral component interconnect (PCI) interface. With the MPC8240 and a combination of a PCI mezzanine card (PMC) and PC•MIP mezzanine slots, the MVME2100 provides customers with a highperformance building block for I/O expansion in industrial automation

MVME2100 Processor Features:
■ MPC8240 32-bit microprocessor
■ L1 cache—16KB/16KB MPC60x class
■ 32MB of on-board SDRAM with optional ECC protection
■ Two 32-pin PLCC/CLCC sockets for Flash memory; up to 1MB capacity for on-board firmware or userspecified requirements
■ 4MB on-board Flash memory for user-specified requirements
■ One IEEE P1386.1 compliant 32-bit PMC slot with front-panel and P2 I/O
■ Three 32-bit PC•MIP expansion slots, compatible with VITA 29 Draft Standard: one Type I slot with rear panel I/O and two Type II slots with front panel I/O
■ 32-bit PCI expansion mezzanine connector
■ Ethernet transceiver interface with 32-bit PCI local
bus DMA, 10/100Mb/s with auto-negotiate speed select
■ 8K x 8 NVRAM and time-of-day clock with replaceable battery backup
■ Four 32-bit timers, one 16-bit timer, one watchdog timer

Processor：
Microprocessor: MPC8240
Processor Core: MPC60x class
Core Frequency: 200 MHz
External Bus Frequency:66.67 MHz (at 200 MHz)
On-Chip Cache (I/D): 16KB/16KB
