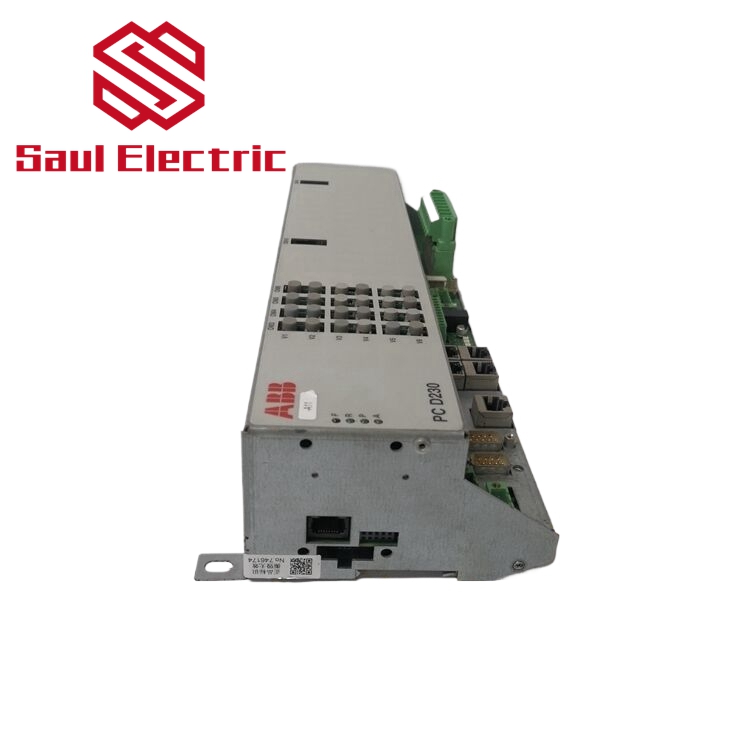

PCD230A 3BHE022291R0101 A high performance rectifier controller

3BHE022291R0101 A high performance rectifier controller

The ‌ABB PCD230A 3BHE022291R0101‌ is a high-performance rectifier controller designed for industrial power conversion systems. As part of ABB’s AC800PEC platform, this controller optimizes energy efficiency in medium-voltage drive applications, particularly in demanding environments requiring precise DC bus voltage regulation. The ‌PCD230A 3BHE022291R0101‌ integrates advanced thyristor firing control algorithms and real-time thermal management, making it indispensable for metallurgical, mining, and marine propulsion systems.

Engineered for 24/7 operation, this unit features dual redundant ARM Cortex-R5 processors operating at 800 MHz, ensuring sub-millisecond response times for critical power regulation tasks. The ‌ABB PCD230A 3BHE022291R0101‌ supports multiple rectifier configurations including 6-pulse and 12-pulse topologies, with adaptive harmonic compensation capabilities that reduce THD to <3% even under 110% overload conditions. Its modular design allows seamless integration with ABB’s ACS6000 drive systems while maintaining compatibility with third-party PLCs through standardized communication interfaces.

Technical Specifications

Parameter Name	Parameter Value
Product Model	‌PCD230A 3BHE022291R0101‌
Manufacturer	ABB
Product Type	Rectifier Control Unit
Input Voltage	3-phase 380-690V AC ±15%
Control Accuracy	±0.2% of rated DC voltage
Processor	Dual ARM Cortex-R5 @ 800 MHz
Communication Protocols	PROFIBUS DP-V1, Modbus TCP, IEC 61850
Operating Temperature	-40°C to +70°C
Cooling Method	Natural convection (IP20)
Dimensions	235 x 135 x 65 mm
Weight	1.8 kg
MTBF	350,000 hours
Isolation Voltage	4 kV AC/1 minute
Certifications	UL, CE, DNV-GL, ATEX Zone 2

PPD517A丨PPD517A3011 3BHE041576R3011 Excitation central executive controller

PPC907BE 3BHE024577R0101 Frequency converter interface module

PPA322B HIEE300016R2 HIEE400235R1 Controller card

UAD155A0111 3BHE029110R0111 Excitation 600 High performance controller

UFC760BE01/UFC760BE 3BHB007030R0001 Frequency converter interface module

Key Features and Advantages:

The ‌ABB PCD230A 3BHE022291R0101‌ revolutionizes power conversion control with its adaptive phase-locked loop (PLL) technology, maintaining synchronization even during grid voltage dips up to 50%. Its silicon carbide (SiC) gate drivers enable switching frequencies up to 5 kHz, reducing switching losses by 30% compared to conventional IGBT controllers.

Cybersecurity hardened design: Featuring secure boot and encrypted communication channels, the ‌PCD230A 3BHE022291R0101‌ meets IEC 62443-4-2 standards for industrial automation security. The integrated web server provides real-time waveform visualization and harmonic spectrum analysis without additional software tools.

For mission-critical applications, the controller’s hot-swappable design allows module replacement within 15 minutes without system shutdown. The automatic thyristor health monitoring function predicts component failures 48-72 hours in advance, significantly reducing unplanned downtime.

Application Areas:

The ‌ABB PCD230A 3BHE022291R0101‌ excels in:

‌Marine electric propulsion‌: Precise torque control for azimuth thrusters in dynamic positioning systems
‌Aluminum smelters‌: Stable DC current supply for potline operations with 0.1% current ripple
‌Wind turbine converters‌: Grid code compliance during low-voltage ride-through (LVRT) events
‌Railway traction power‌: Regenerative braking energy recovery with 98% efficiency

In steel rolling mills, the ‌PCD230A 3BHE022291R0101‌ enables smooth torque transitions between reversing stands, while its built-in arc flash detection protects personnel in substation environments. The controller’s MIL-STD-810G vibration resistance makes it ideal for mobile mining equipment exposed to extreme mechanical stresses.
