Pillow block tensiometer PFTL 101A-2.0KN 3BSE004172R1丨PFTL 101A series force measuring range: 0.2~2KN

Pillow block tensiometer PFTL 101A-2.0KN 3BSE004172R1 PFTL 101A series force measuring range: 0.2~2KN
Pillow block tensiometer PFTL 101A-2.0KN 3BSE004172R1
ABB PFTL 101A-2.0KN 3BSE004172R1 Horizontal pillow tensimeter indenter is very suitable for small tension, roll weight and high running speed applications, metallurgy, steel, nonferrous, paper, metal deep processing and other industries often have many such applications PFTL 101A-2.0KN 3BSE004172R1 is commonly used in conventional metal treatment lines. The indenter is suitable for applications with heavy rolls, wide tension ranges and high operating speeds.

ABB Tensiometer Millmate Strip Tension Measurement – Piezomagnetic indenter Features:

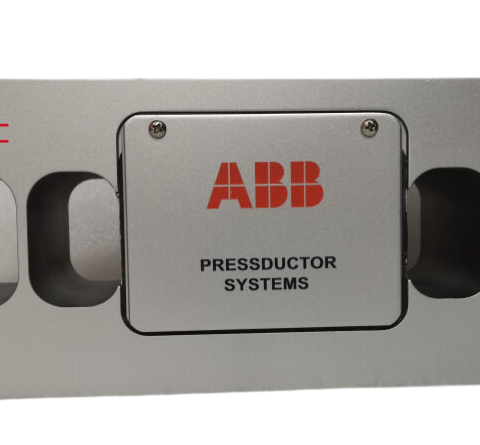

The indenter is made of a single piece of stainless steel. It is only sensitive to the force in the measured direction. Due to the special structural design of the indenter, the force in other directions is absorbed by the indenter, thus having no effect on the force in the measured direction.

Wide measuring range: The measuring range is 40:1, the maximum is 200% of the rated range, the minimum is 5% of the rated range. Repeatable large overload capacity: 10 times the rated range of electrical overload capacity, more than 30 times the rated range of mechanical overload capacity, no plastic deformation and fatigue phenomenon. No calibration, no physical drift. High-power sensor output signal (100mV): large output signal and carrier frequency, excellent anti-interference performance. Low impedance output (10 ohms) : the indenter has better noise resistance, and the output signal is not sensitive to the insulation condition, which is more suitable for the harsh operating environment of the mill. Indenter protection level is IP65, which can operate normally in the field of splash.

ABB Tensimeter Millmate Strip Tension Measurement – System Applications:
1: Continuous annealing line – heating furnace part
2: Cold tandem rolling mill – inlet tensioning roll
3: Annealing – pickling line – steering roller
4: Sendzimir rolling mill
5: Rack cold tandem mill – middle rack

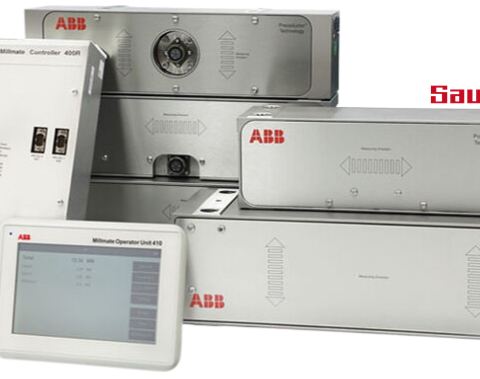

ABB Tensimeter Millmate Strip tension measurement system brings benefits to users
Improve product quality, reduce mill downtime caused by unpredictable faults, increase output and increase rolling speed.
