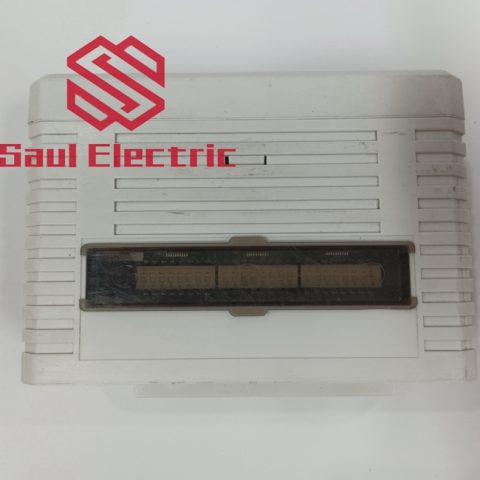

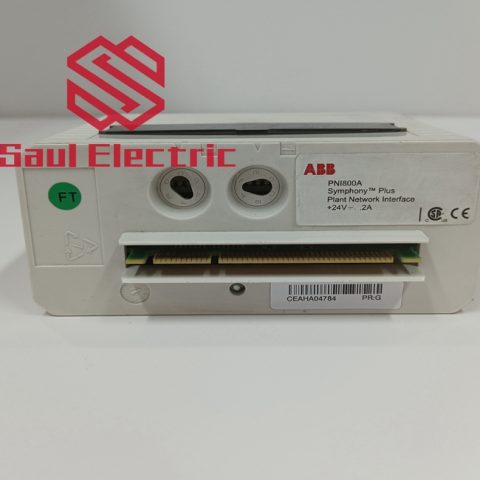

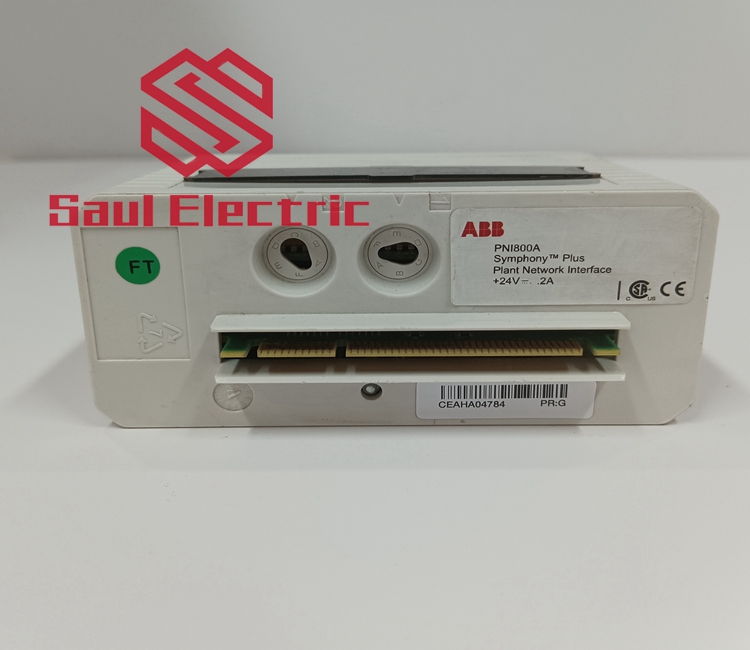

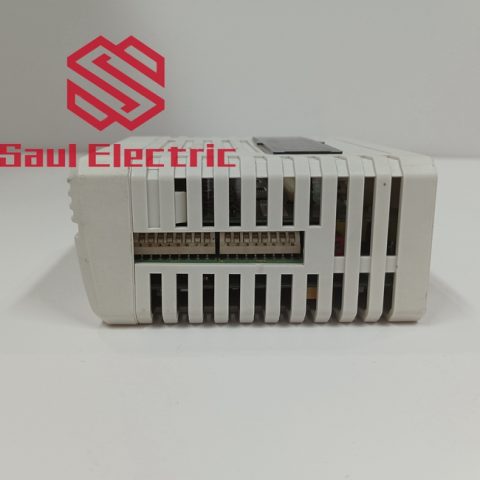

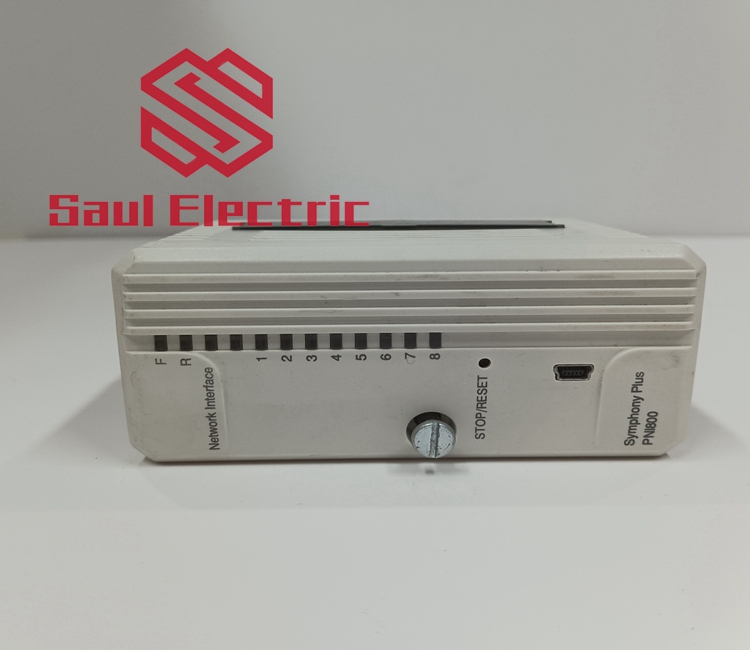

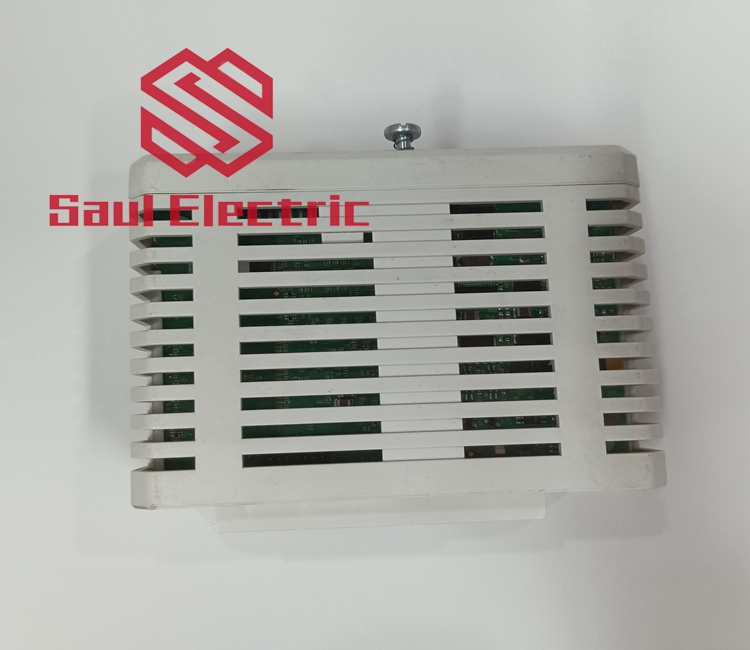

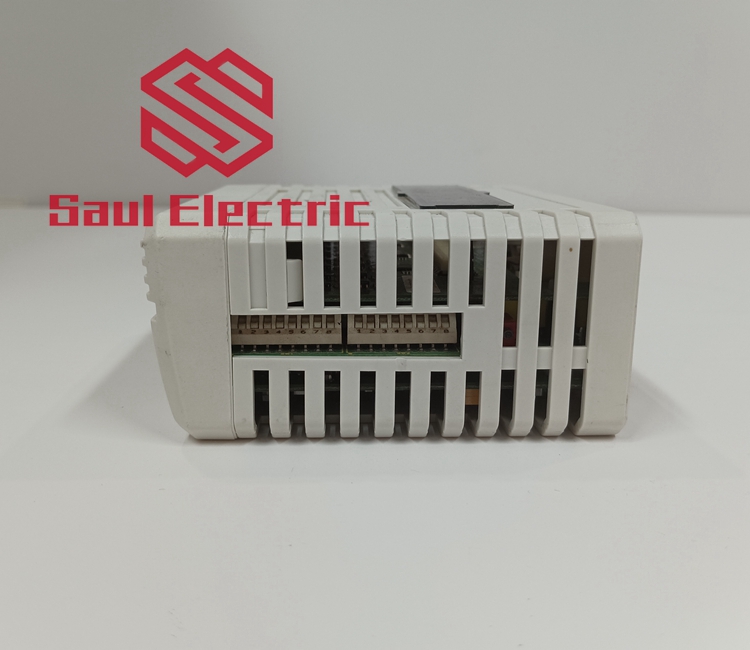

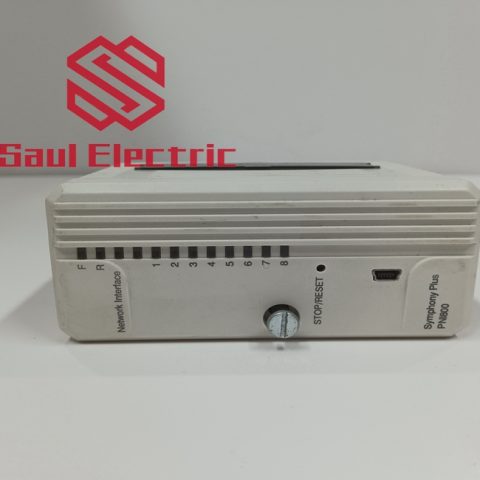

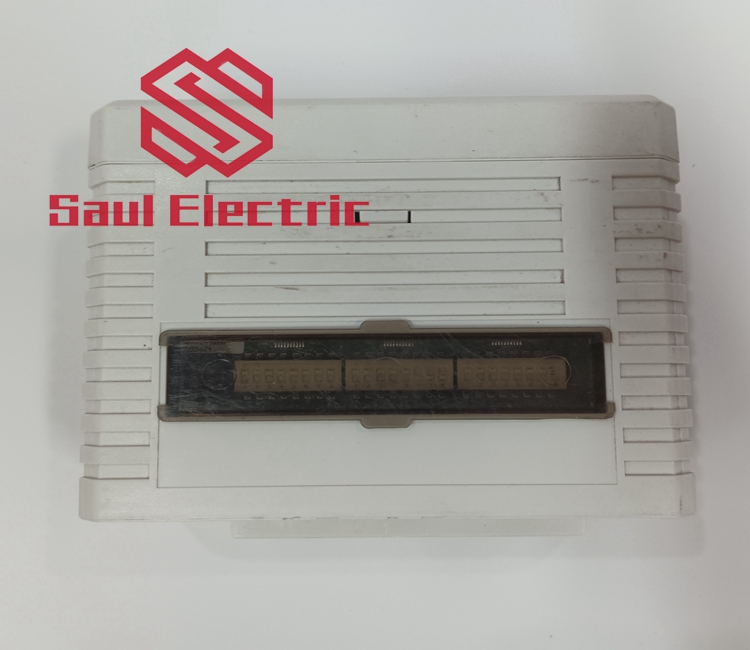

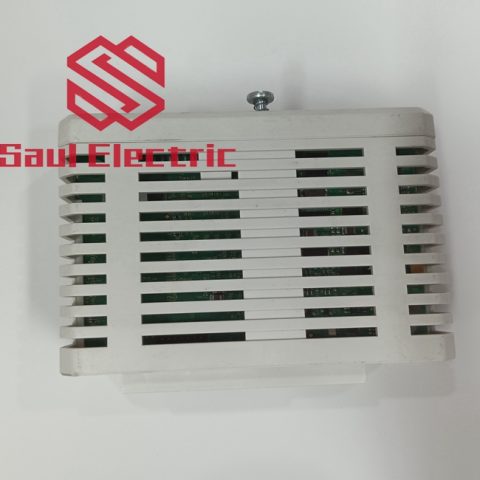

ABB PNI800A Network Interface Module PN800

ABB PNI800A Network Interface Module PN800
It is mainly used to intercept the status information uploaded by other functional units in the computing system from the status layer. The status information may include data request information and functional unit release information. For data request information, the status interface module caches it in the built-in functional unit request cache and forwards it through the configuration network when the configuration interface arbitrator module allows it. The status interface module will parse the release information of the functional unit, and generate the corresponding release signal according to the result of the parsing to transmit to the corresponding idle functional unit queue.

The PNI800A network interface module may also include other components for specific functions, such as Combo interfaces, USB interfaces, SDIO interfaces, and PCIe interfaces. These interfaces and modules work together to ensure that network devices are able to achieve efficient and reliable network connectivity and communication.
