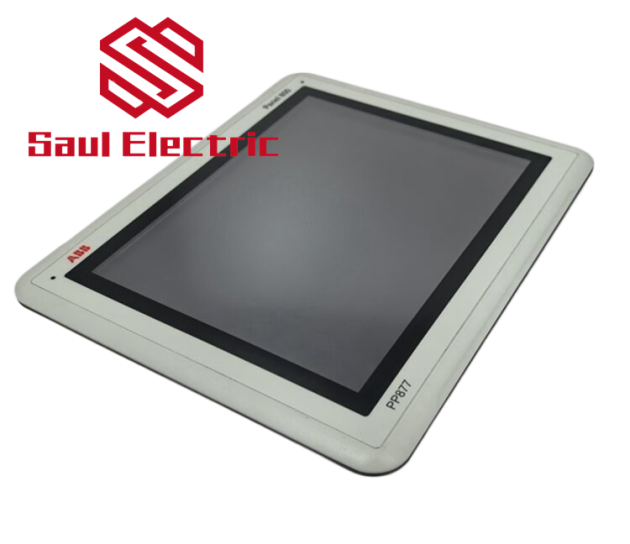

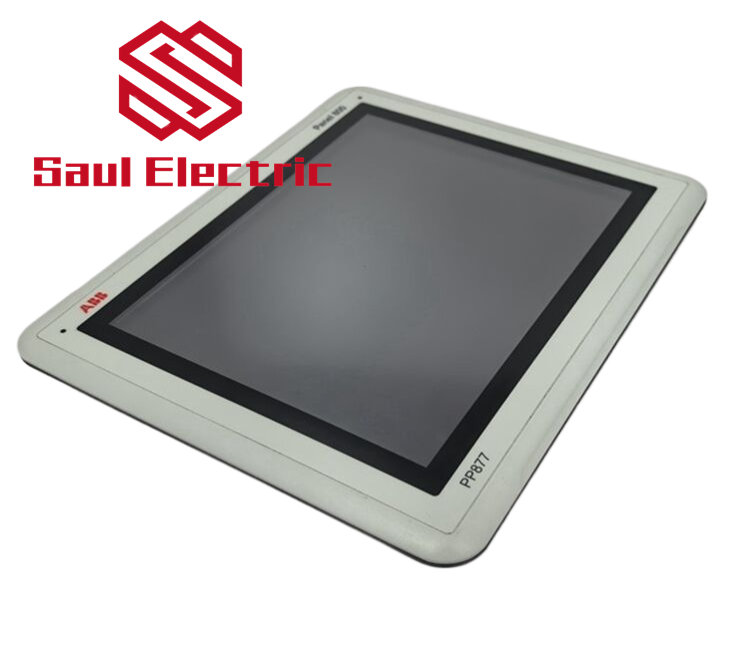

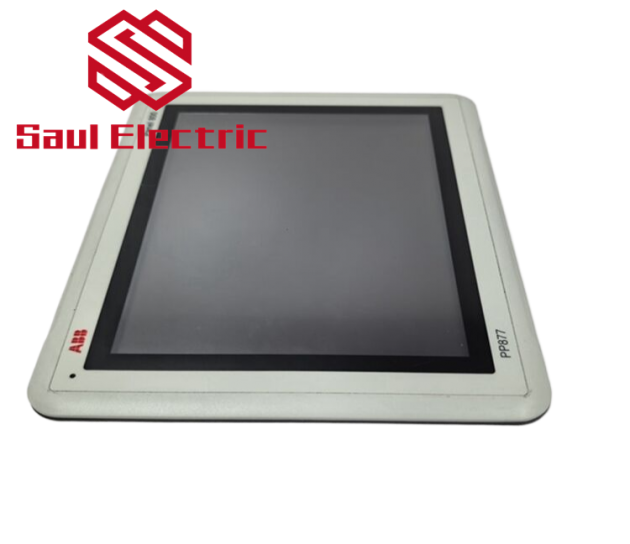

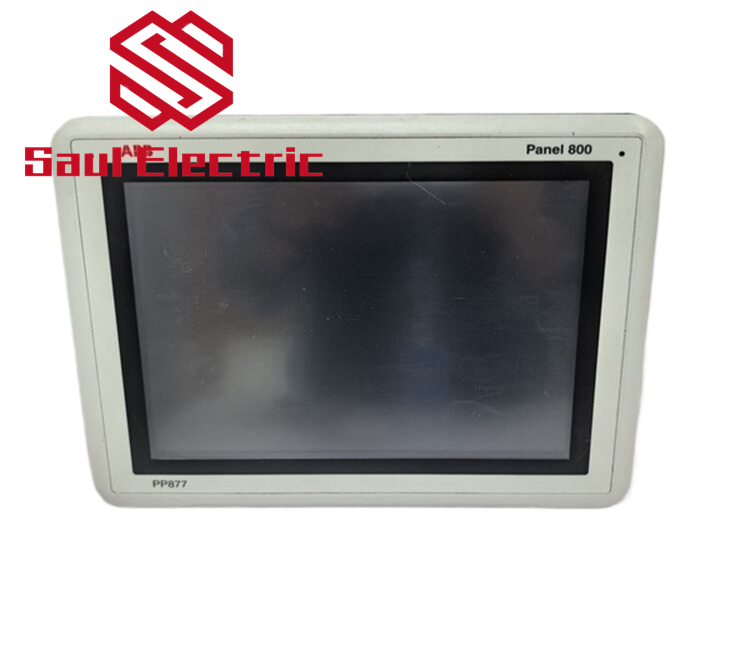

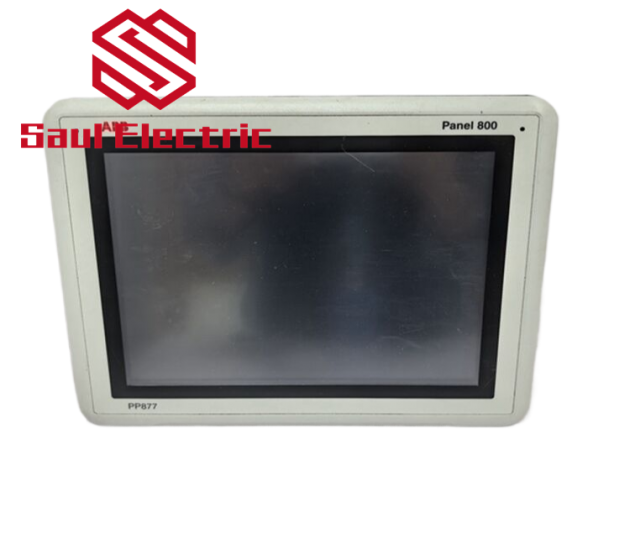

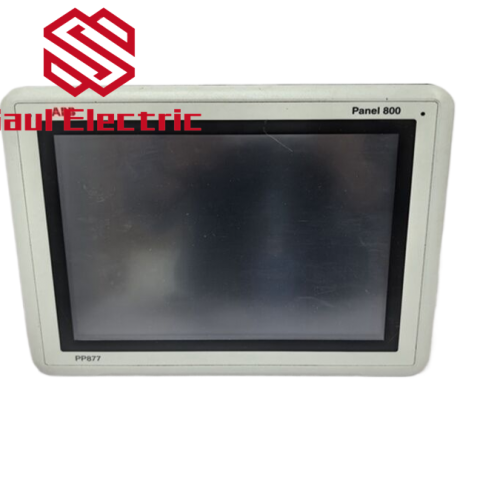

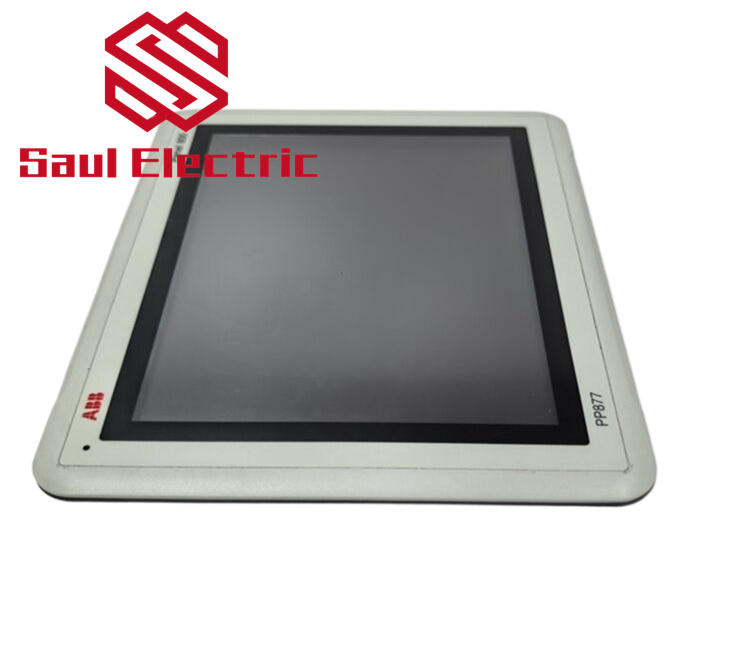

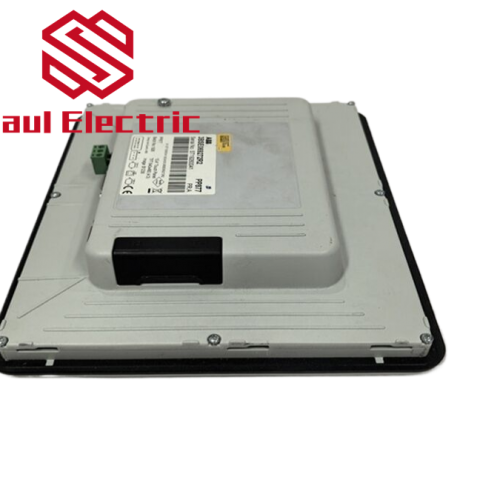

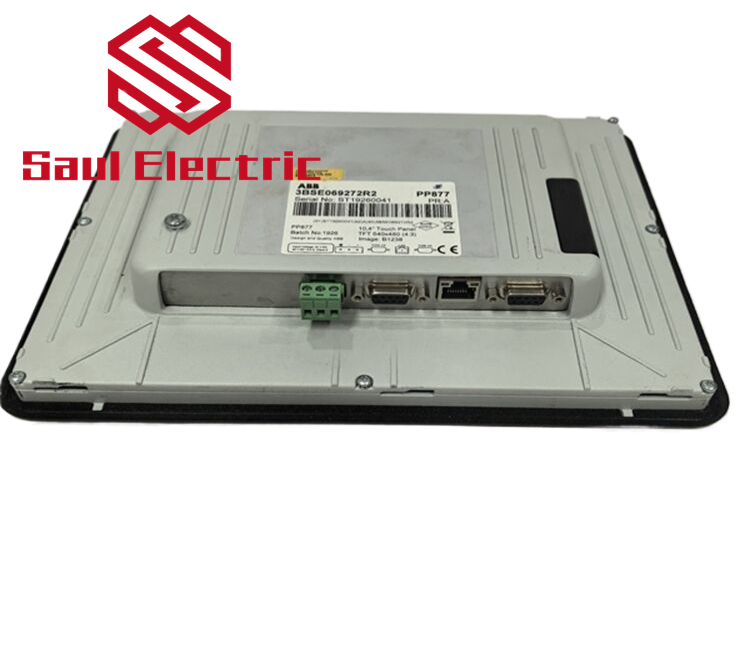

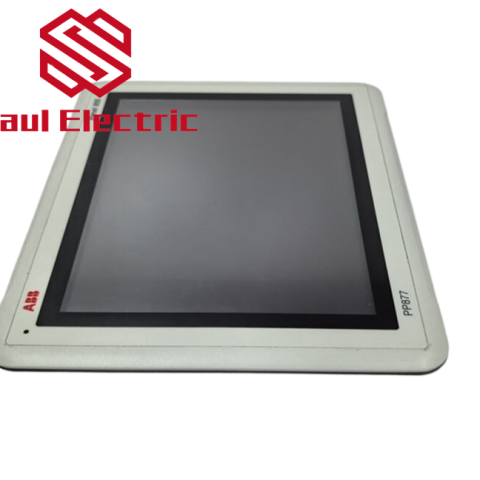

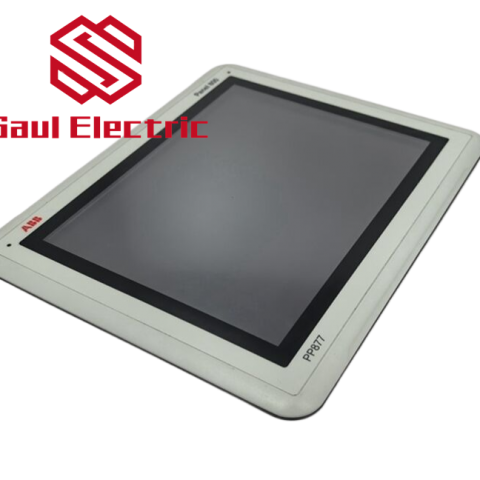

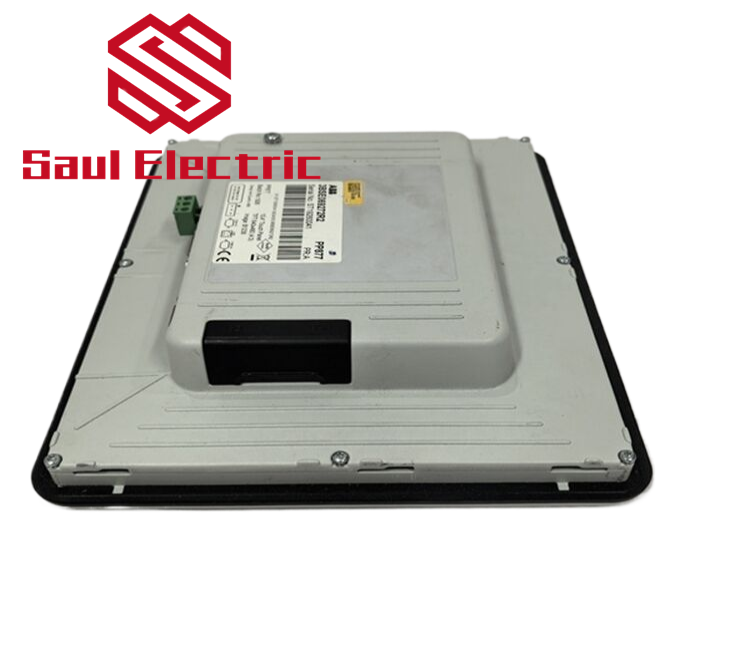

Panel 800 version 6 PP877 3BSE069272R2 Operator panel
Panel 800 family comprises of user-friendly, intuitive and ergonomic operator panels thath combine slim, space-saving dimensions with a comprehensive range of advanced functions. Designed to make process automation easy, all panels are equipped with advanced functionality for process and equipment control, maneuvered either by function keys located next to the screen or by touching the LCD display.
PP877 3BSE069272R2 Parameter Specifications
Article number：3BSE069272R2
Display size ：10.4″
Display resolution, ratio ：640 × 480 (4:3)
Display colors：TFT-LCD 64k LED backlight
Brightness (cd/m²) ：450
View angle (H/V) ：160° / 140°
Dimming：Yes
Interaction type：Resistive touch, 1 million finger touch operations
Processor：ARM9 (400 MHz)
Main memory：128 MB (DDR2)
Application memory：80 MB
External storage media ：1 × SD card slot (or SDHC with latest image loaded)
Realtime clock ：Yes

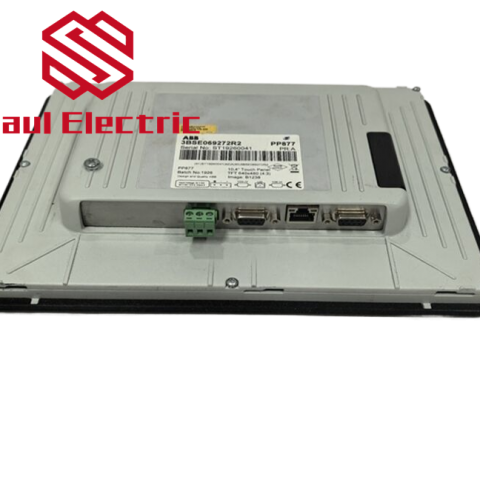

Ethernet (shielded RJ 45)：1 × 10/100 Base-T
USB：1 x USB 2.0, max. 200 mA
Serial port 1/2：2 combined ports: 2 × RS232, 2 × RS422/485
Dimension W×H×D (mm)：280 × 228 × 51
Cut-out dimension W×H (mm)：262 × 209
Mounting depth (mm)：44 (144)
Mounting：Panel Mount and VESA 75 × 75
Net weight (kg)：1.5 kg
Frame material, front foil：Powder-coated aluminum, Polyester Autotex EBA180L
Power supply ：+24 VDC (18-32 VDC)
Power consumtion：9.6 w
Protection (front/rear)：IP65 / IP20
Operating temperature ：-10 to +60 °C
Relative operating humidity：5-85% non-condensing
Storage temperature：-20 to +70 °C
Vibration and shock：0.7 G / 10 G
