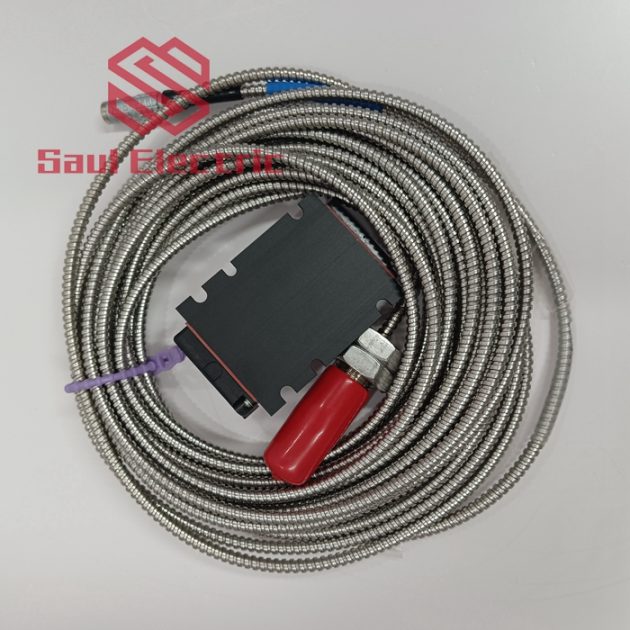

EMERSON PR6424011-140 Vibration sensor

EMERSON PR6424011-140 Vibration sensor

PR6424011-140 Vibration sensor

Vibration sensor, also known as vibration sensor, is a device used to measure and detect the vibration of mechanical equipment or structures.

Sensitivity/Linearity

4 V/mm (101.6 mV/mil) ±1.5% max

Air Gap (Center)

Approx 2.7 mm (0.11″) Nominal

Range: Static

±2.0 mm (0.079″)

Range: Dynamic

0 to 1,000µm (0 to 0.039″)

Shaft Diameter

≥80mm

Weight (Sensor & 1M Cable, No Armor)

200 grams (7.05 oz)

Operating Temperature

-35 to 180°C (-31 to 356°F)

Shock and Vibration

5g @ 60 Hz @ 25°C (77°F)
