Name: ProSoft PLX35-NB2 Network Bridge-24 VDC nominal
SKU: 9454
Availability: InStock

ProSoft PLX35-NB2 Network Bridge-24 VDC nominal

$0.00

In stock

The PLX35-NB2 Network Bridge is the ideal solution for system integrators,machine builders, and OEMs requiring remote system access for commissioning,troubleshooting, or network maintenance. During the commissioning phase, a network bridge is deployed on site with automation equipment. Once the equipment is installed and ready for configuration and programming, the bridge allows the user to remotely access the network to commission, maintain, and troubleshoot the system, thereby reducing travel time costs.

-Brand:PROSOFT

-Model Name: PLX35-NB2

ProSoft PLX35-NB2 Network Bridge
The PLX35-NB2 Network Bridge is the ideal solution for system integrators,machine builders, and OEMs requiring remote system access for commissioning,troubleshooting, or network maintenance. During the commissioning phase, a network bridge is deployed on site with automation equipment. Once the equipment is installed and ready for configuration and programming, the bridge allows the user to remotely access the network to commission, maintain, and troubleshoot the system, thereby reducing travel time costs.

Power
Power： 24 VDC nominal, 10 to 36 VDC allowed, Positive, Negative, and GND terminals
Power Connector：Three pin, screw terminal, screw retention, black
Current Load：24 VDC nominal @300 mA

Internal Specs
EtherNet/IP：Supports local control of VPN access through MSG instruction.
Network Ports：HTTP or HTTPS ports 8080

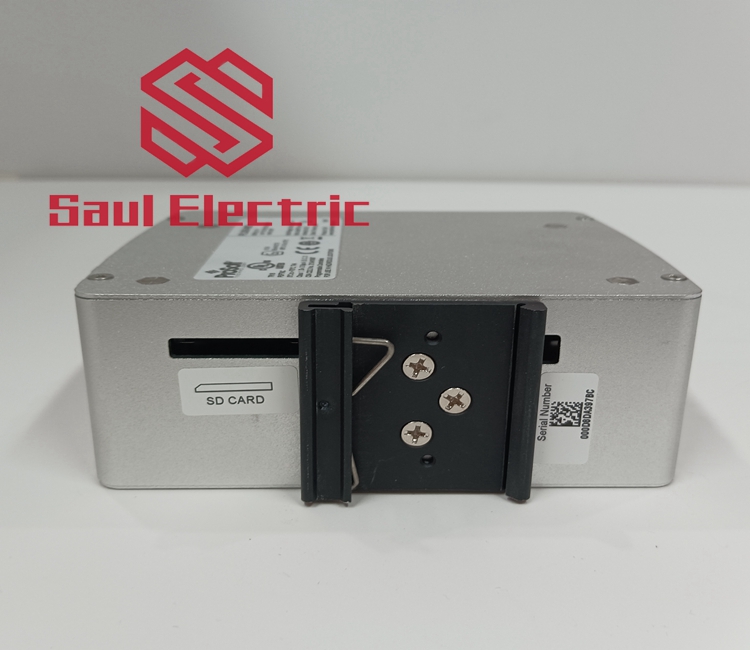

Physical：Extruded aluminum with DIN clip
Dimensions：5.52 x 2.06 x 4.37 in
(H x W x D) 14.01 x 5.24 x 11.09 cm
Shock：IEC 60068-2-27; 20G @ 11ms (Operational)
IEC 60068-2-27; 30G @ 11ms (Non-Operational)
Vibration：IEC 60068-2-6; 10G, 10 to 150 Hz
