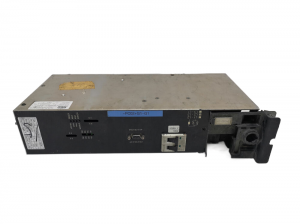

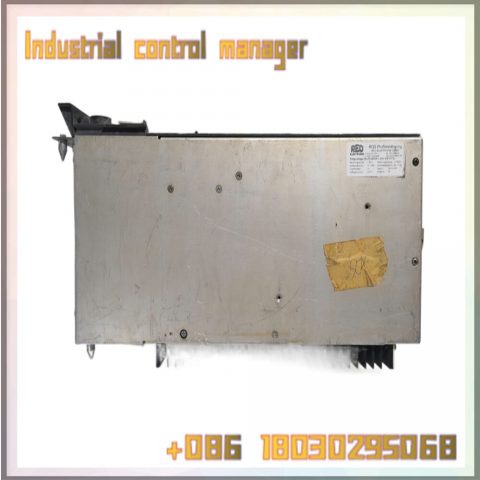

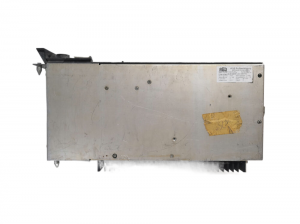

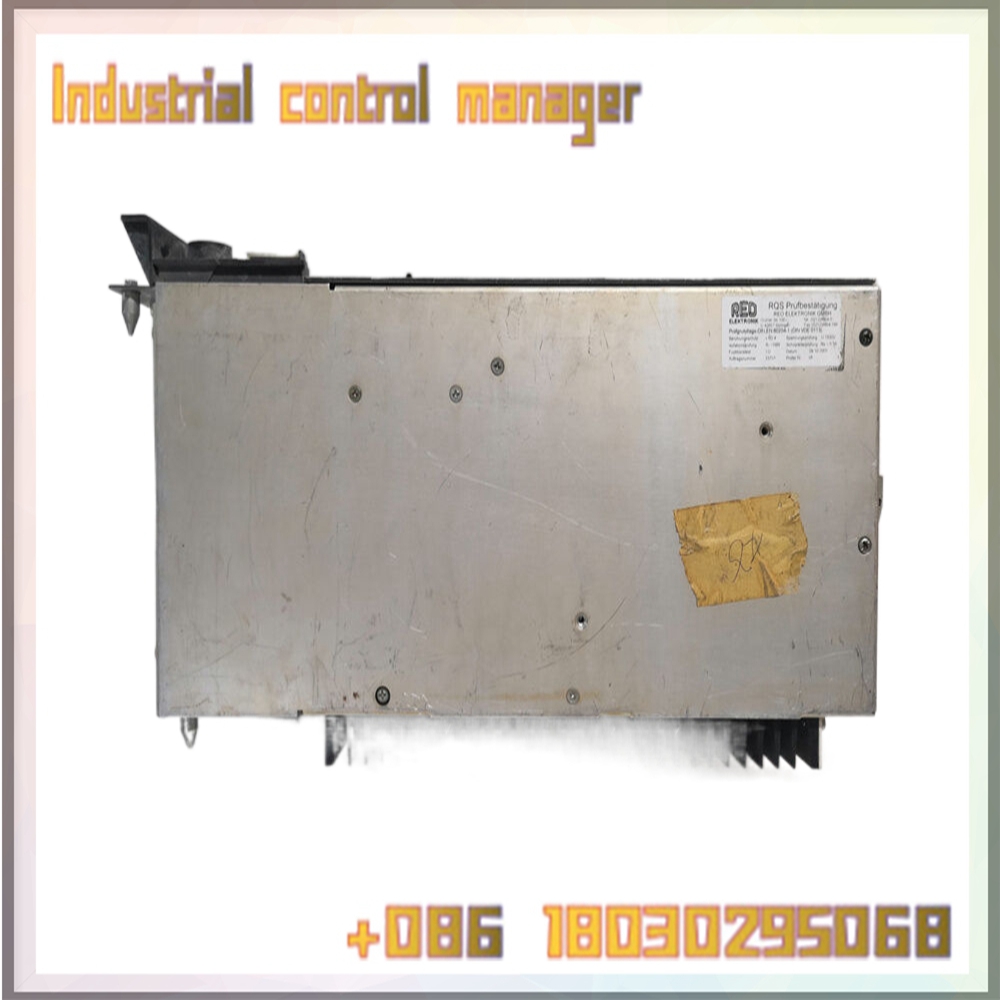

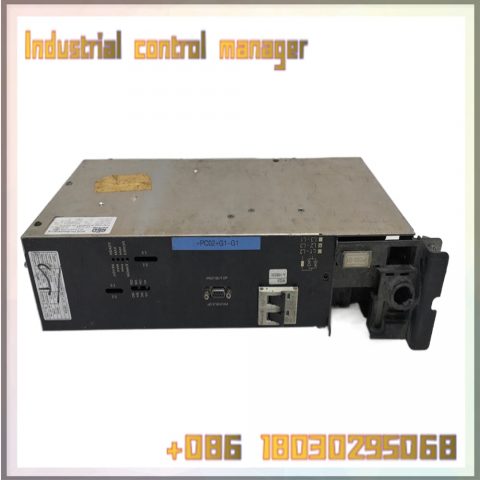

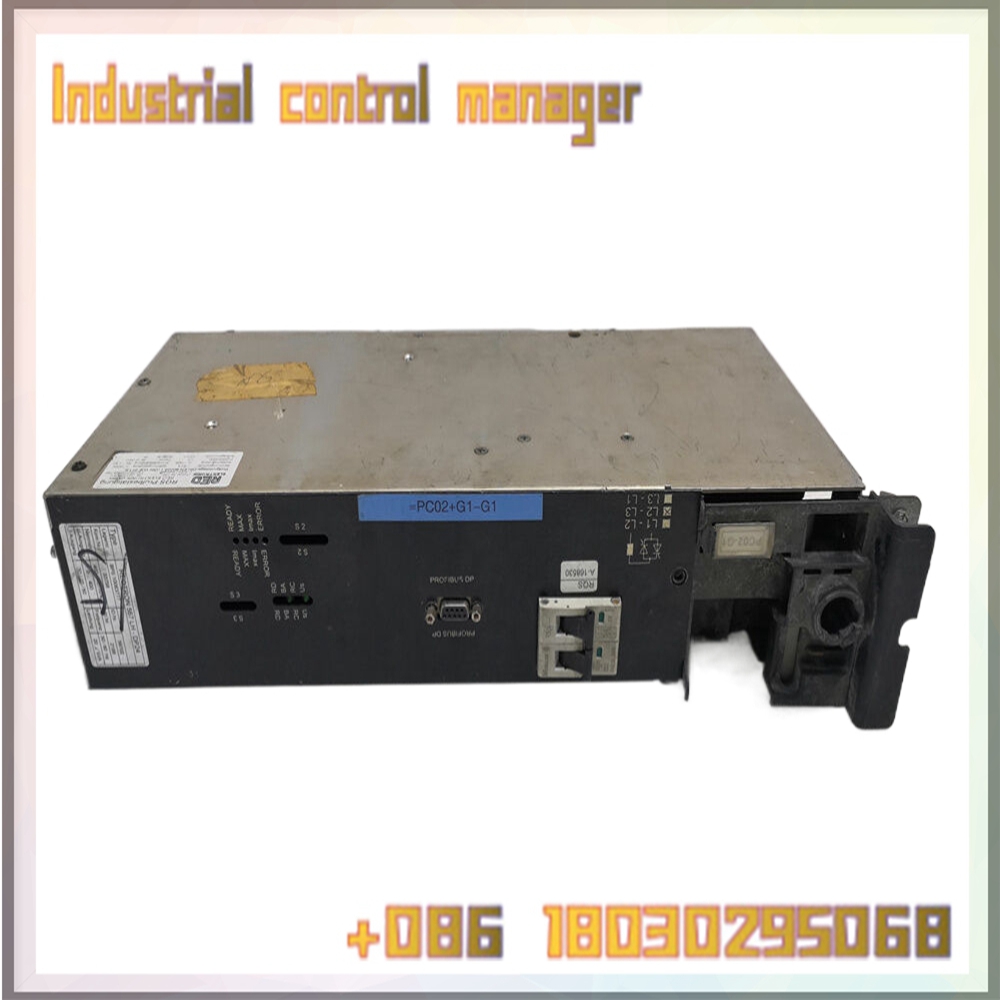

REOTRON 567LH-DP24 Output logic module

The 567LH-DP24 Output Logic Module 8-point isolated analog voltage source output module provides the following alarm: Out/Under range: If the engineering unit value sent by the host causes the output value to be approximately 50mV of the module maximum or minimum value.

User power loss uncalibrated module If an alarm occurs, the module sets a bit in its optional discrete input data. These alarm bits can be monitored by application logic. The module’s discrete output data can be cleared by sending an appropriate alarm.
