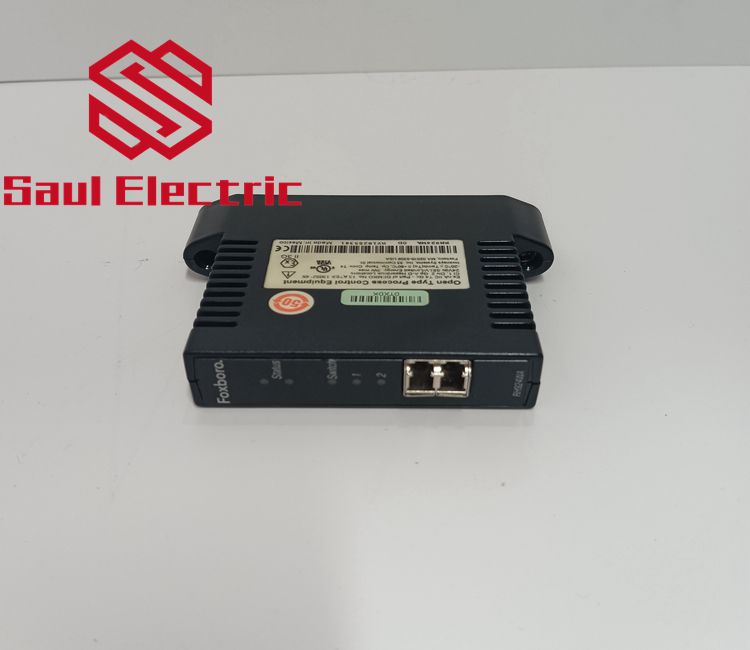

FOXBORO RH924WA Fieldbus module

Fieldbus module
FOXBORO RH924WA Fieldbus module
FOXBORO RH924WA Fieldbus module

Certifications for the Field Control Processors (FCP), Fieldbus Communications Modules (FCMs) and other standard 200 Series equipment used with the Compact 200 Series I/O equipment are provided in DIN Rail Mounted Equipment

FBM207b Compact Channel Isolated, 24 V Contact Sense Input Interface Module
FBM214b Compact Channel-Isolated, 4 to 20 mA, HART® Input Interface Module
FBM215 Compact Channel-Isolated 4 to 20 mA, HART Output Interface Module
FBM216b Compact Redundant Channel-Isolated, 4 to 20 mA, HART Input Interface Module
FBM218 Compact Redundant Channel-Isolated, 4 to 20 mA, HART Output Interface Module
FBM242 Compact Channel Isolated, Externally Sourced, Discrete Output Interface Module

An FBI200 may be included on this connection to extend the distance between the 100 Series FBIs and the FCP280 baseplate. In mixed configurations (100 and 200 Series FBMs) the FCP280 can communicate on the 268 Kbps HDLC fieldbus up to 60 m (198 ft). When communicating with a 268 Kbps HDLC fieldbus only, the FCP280 can communicate on this fieldbus up to 1 km (3,200 ft). The FBI100 pair may be used in place of FBI200s. For sizing constraints and devices supported by the FBI200, see FBI200 Fieldbus Isolator/Filter (PSS 41H-2FBI200). For sizing constraints and devices supported by the FBI100, see FBI100 Fieldbus Isolator/Filter (PSS 21H-2Y16B4). The FBI200/FBI100 extends the distance of the HDLC fieldbus between the FCP280 and the FBMs up to 1,830 m (6,000 ft). The FBI200 can be used with 200 Series FBMs as well to extend the cabling distances to them. The FBI100 is usedexclusively with 100 Series FBMs to extend the cabling distances to them.
