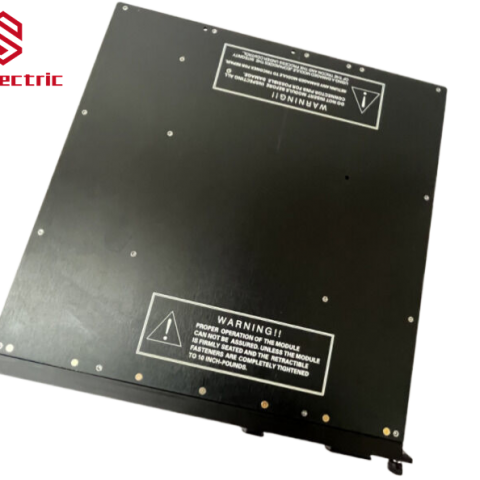

Physical Description of Model Triconex 3008 Main Processors

$0.00

In stock

Each Tricon chassis is equipped with two Power Modules—either one is fully capable of running the Tricon at full load and rated temperature. Each Power Module can be replaced online. The Power Modules, located on the left side of the chassis, convert line power to DC power appropriate for all Tricon modules. Terminal strips for system grounding, incoming power and hardwired alarms are located on the lower left corner of the backplane. Incoming power should be rated for a minimum of 240 watts per power supply.

-Brand:TRICONEX

-Model Name:Tricon Communication Module Triconex 3008

Tricon Communication Module Triconex 3008
Three MPs must be installed in the Main Chassis of every Tricon system. Each MP independently communicates with its I/O subsystem and executes the user-written control program.

Isolation   >1,000 VAC or 1,500 VDC, Input to Output

Input Terminations  Protected by safety cover
Accepts three 12-gauge wires (3.310mm2): neutral, hot, and protective earth (chassis ground)

Temperature warning monitor—trips when internal temp. is

greater than 181° F (83°C); this typically occurs at ambient

temperature 140°F (60°C) or higher
