Tricon/Triconex 3674 Dual Digital Output Module 24 VDC

Dual Digital Output Module

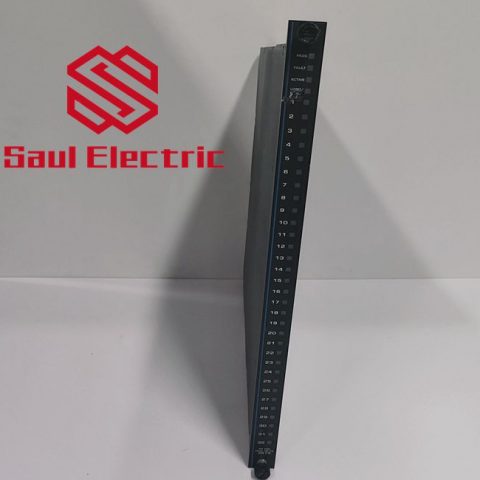

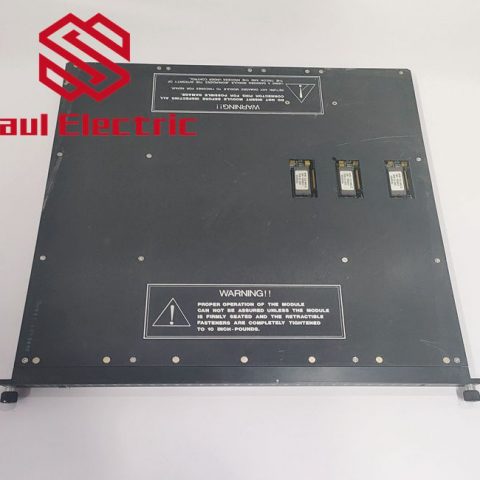

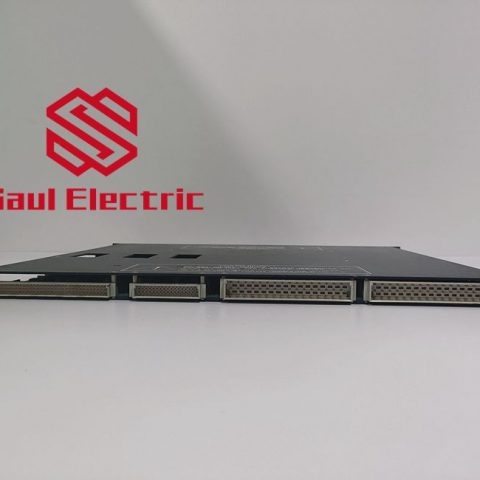

Tricon/Triconex 3674 Dual Digital Output Module
Tricon/Triconex 3674 Dual Digital Output Module

The Triconex 3674 Dual Digital Output module is a coded dual input/output module commonly used in construction engineering with two digital output channels for the output of digital signals.

Nominal Voltage    24 VDC
Type： Dual DO, serial (recommended for de-energize-to-trip control programs)
Output Signals： 32, commoned
Voltage Range： 16-30 VDC
Maximum Voltage： 36 VDC
Voltage Drop： < 1.5 VDC, typical
Power Module Load： < 10 watts
Current Ratings, Maximum： 2A per point
10A surge per 10 ms
Load Leakage： 2 mA maximum
Fuses (on Field Termination)： n/a—self-protecting
Point Isolation： 1,500 VDC minimum

Main Chassis—houses Main Processors, memory back-up batteries, communication modules and I/O modules.

Expansion Chassis—for additional I/O modules up to 100 feet (30 meters) away from the Main Chassis. In restricted applications, operation up to 1,000 feet (300 meters) is supported.

RXM Chassis—for I/O modules up to 7.5 miles (12 kilometers) away from the Main Chassis.

Chassis Assemblies:
Main Chassis, High-Density Configuration, includes the Tricon printed manuals  Triconex8110
Expansion Chassis, High-Density Configuration  Triconex8111

Expansion Chassis, Enhanced Low-Density Configuration  Triconex8121

Remote Expansion Chassis, High-Density Configuration  Triconex8112

I/O Bus Expansion Cables (Set of 3)  Triconex9000

I/O-COMM Bus Expansion Cables (Set of 3)  Triconex9001

Blank I/O Slot Panel  Triconex8105

Model

Description

3501E/T  115Vac/Vdc Digital Input

3502E  48Vac/Vdc Digital Input

3503E  24Vac/Vdc Digital Input

3504E  24/48Vdc Digital Input

3505E  24Vdc Digital Input

3564  24Vdc Digital Input (simplex)

3511  Pulse Input

3515  Pulse Totalizer

3601E/T  115Vac Digital Output

3603B/E/T  120Vdc Digital Output

3604E  24Vdc Digital Output

3607E  48Vdc Digital Output

3611E  115Vac Digital Output

3617E  48Vdc Supervised Digital Output

3623E/T  120Vdc Digital Output

3624  24Vdc Supervised Digital Output

3625  24Vdc Digital Output

3664  24Vdc Digital Output (Dual)

3674  24Vdc Digital Output (Dual)

3636R/T  Relay Output

3700A  0-5Vdc Analogue Input

3701  0-10Vdc Analogue Input

3703E  0-5, 0-10Vdc Analogue Input

3704E  0-5, 0-10Vdc (high density) Analogue Input

3706A  Thermocouple Analogue Input

3708E  Thermocouple Analogue Input

3720  0-5Vdc Analogue Input

3721  0 to 5 or –5 to +5Vdc Analogue Input

3805E/H  4-20mA Analogue Output

3806E  4-20mA and 20-320mA Analogue Output

3807
