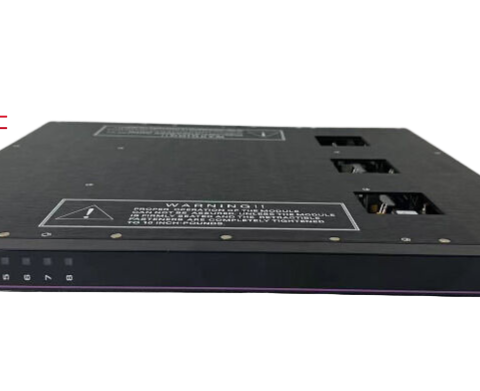

Triconex 2870H Analog Output Interface Module

Triconex 2870H Analog Output Interface Module

Triconex 2870H Analog Output Interface Module

The Triconex Tricon Safety Instrumented System is designed to meet the needs of safety and critical control applications in oil and gas, power, refining, chemicals, pharmaceutical and biotech industries.
It is based on industry leading TMR technology, is easy to operate and maintain and provides the lowest total cost of ownership.

Main Processor Modules:

3008 Main Processor, 16 megabytes DRAM  Triconex3008

Communication Hardware and Software:

Tricon Communication Module (TCM), Ethernet (802.3) and serial (RS-232/RS-485) ports

4351A, Triconex4352A,

4351B, Triconex4352B

4353, Triconex4354

Enhanced Intelligent Communication Module (EICM), serial (RS-232/RS-422/RS-485) ports  Triconex4119, Triconex4119A

Safety Manager Module (SMM), Honeywell UCN Interface  Triconex4409

Network Communication Module (NCM), Ethernet (802.3) ports  Triconex4329, Triconex4329G

Main Chassis—houses Main Processors, memory back-up batteries, communication modules and I/O modules.

Expansion Chassis—for additional I/O modules up to 100 feet (30 meters) away from the Main Chassis. In restricted applications, operation up to 1,000 feet (300 meters) is supported.

RXM Chassis—for I/O modules up to 7.5 miles (12 kilometers) away from the Main Chassis.

APPLICATIONS：
Emergency Shutdown (ESD)
Burner Management Systems (BMS)
Fire and Gas Systems (F&G)
High Integrity Pressure Protection systems (HIPPS)
Turbomachinery Controls (TMC)
Critical Control

An Expansion slot is a slot on the motherboard used to secure the expansion card and connect it to the system bus, also known as an expansion slot or expansion slot. Expansion slots are a way to add or enhance computer features and functions.

Chassis Assemblies:
Main Chassis, High-Density Configuration, includes the Tricon printed manuals  Triconex8110
Expansion Chassis, High-Density Configuration  Triconex8111

Expansion Chassis, Enhanced Low-Density Configuration  Triconex8121

Remote Expansion Chassis, High-Density Configuration  Triconex8112

I/O Bus Expansion Cables (Set of 3)  Triconex9000

I/O-COMM Bus Expansion Cables (Set of 3)  Triconex9001

Blank I/O Slot Panel  Triconex8105

Power Modules

120 VAC/VDC – 175-Watt Power Module  Triconex8310

24 VDC – 175-Watt Power Module  Triconex8311

230 VAC – 175-Watt Power Module  Triconex8312

Digital Input Modules

115 VAC/VDC Opto-Isolated, Non-Commoned  Triconex3501E/3501T
48 VAC/VDC Commoned in Groups of 8, Self-Test  Triconex3502E

24 VAC/VDC Commoned in Groups of 8, Self-Test   Triconex3503E

24/48 VDC High-Density, DC Coupled   Triconex3504E

24 VDC Low Threshold with Self-test, Commoned  Triconex3505E

24 VDC Single, Opto-Isolated, Commoned   Triconex3564

Pulse Input Differential, AC Coupled   Triconex3511

Pulse Totalizer Opto-isolated, Non-commoned   Triconex3515

Digital Output Modules

115 VAC Opto-Isolated, Non-commoned  Triconex3601E/3601T

120 VDC Opto-Isolated, Non-commoned  Triconex3603B,

Opto-Isolated, Commoned      Triconex3603E/3603T

24 VDC Opto-Isolated, Non-commoned   Triconex3604E

48 VDC Opto-Isolated, Non-commoned   Triconex3607E
