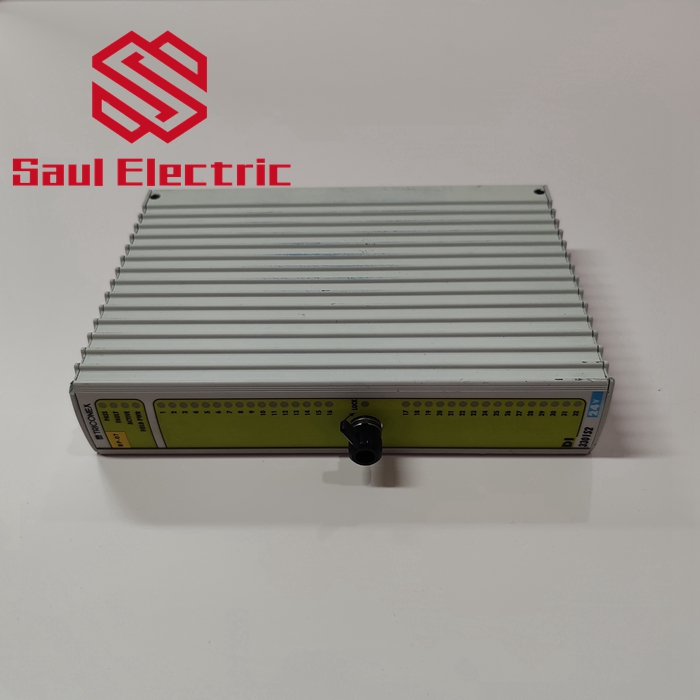

TRICONEX DI3301S2 Network communication module

TRICONEX DI3301S2 Network communication module
The Triconex DI3301S2 network communication module supports a variety of communication interfaces, such as Ethernet, Modbus, Profibus, etc., which enables them to communicate effectively with other devices and systems. The diversified communication interfaces enable the module to adapt to different communication requirements. Reliable data transmission in industrial automation and control systems.

The HIM enables higher-order devices on the LCN or Data Hiway, such as computers and operator workstations, to communicate with the Tricon.The HIM allows redundant BNC connections directly to the Data Hiway and has the same functional capacity as four extended Data Hiway Port (DHP) addresses.

The HIM provides eight Hiway addresses, implements the same slot structure as the DHP, and typically refreshes all data in less than 0.5 seconds. The hot-spare capability allows online replacement of a faulty module.

Model Number

4509

Data Hiway channels 2 isolated (AC coupled)

Poll response switches 2 per channel

Baud rate 250 kilobits per second

Status indicators PASS (Module Status)

FAULT (Module Status)

ACTIVE (Module Status)

ON LN (HIM Online)

H I/F (Hiway Interface)

CAL UP (Call-up Received)

CH A (Channel A Active)

CH B (Channel B Active)

XMIT (HIM Transmitting)

STD BY IN (Standby Module Inserted)

STD BY READY (Standby Module Ready)

Power Module load < 10 watts

Isolation 500 VDC
