Output Companion Slot Cable
Tricon/TRICONEX TC-205-02-8M5 Output Companion Slot Cable
Tricon/TRICONEX TC-205-02-8M5 Output Companion Slot Cable
TC-201 Input Companion Slot Cable：As shown below
TC-205 Output Companion Slot Cable：As shown below
To install one end of the cable to the rear of a Controller or Expander chassis:
1. Identify the correct location where the I/O module will be installed
2. Ensure the slot is not occupied by a module
3. Line up the tabs on the connector with the slots in the chassis
4. Insert the connector into the chassis
5. Slide the connector up until it snaps in place.
To remove the connector, press the release button on the bottom of the connector and slide the connector down to release it.
Note: The connector cannot be installed or removed with an I/O module or shield (blank) installed in either slot.
The other side of the cable connects to the Field Termination Assembly in a similar manner.Smart slot cables connect in the same manner. The only difference is that the connector at the chassis end is a single width connector.
Tricon/TRICONEX TC-205-02-8M5 Output Companion Slot Cable
Expansion Chassis, Enhanced Low-Density Configuration Triconex8121
Remote Expansion Chassis, High-Density Configuration Triconex8112
I/O Bus Expansion Cables (Set of 3) Triconex9000
I/O-COMM Bus Expansion Cables (Set of 3) Triconex9001
Blank I/O Slot Panel Triconex8105
Model
Description
3501E/T 115Vac/Vdc Digital Input
3502E 48Vac/Vdc Digital Input

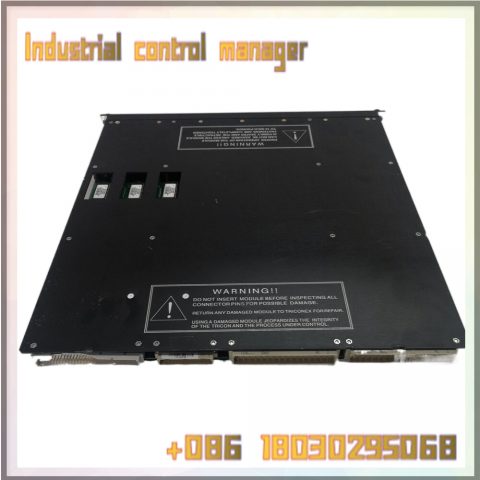

3503E 24Vac/Vdc Digital Input
3504E 24/48Vdc Digital Input
3505E 24Vdc Digital Input
3564 24Vdc Digital Input (simplex)
3511 Pulse Input
3515 Pulse Totalizer
3601E/T 115Vac Digital Output
3603B/E/T 120Vdc Digital Output
3604E 24Vdc Digital Output
3607E 48Vdc Digital Output
3611E 115Vac Digital Output
3617E 48Vdc Supervised Digital Output
3623E/T 120Vdc Digital Output
3624 24Vdc Supervised Digital Output
3625 24Vdc Digital Output
3664 24Vdc Digital Output (Dual)
3674 24Vdc Digital Output (Dual)
3636R/T Relay Output
3700A 0-5Vdc Analogue Input
3701 0-10Vdc Analogue Input
3703E 0-5, 0-10Vdc Analogue Input
3704E 0-5, 0-10Vdc (high density) Analogue Input
3706A Thermocouple Analogue Input
3708E Thermocouple Analogue Input
3720 0-5Vdc Analogue Input
3721 0 to 5 or –5 to +5Vdc Analogue Input
3805E/H 4-20mA Analogue Output

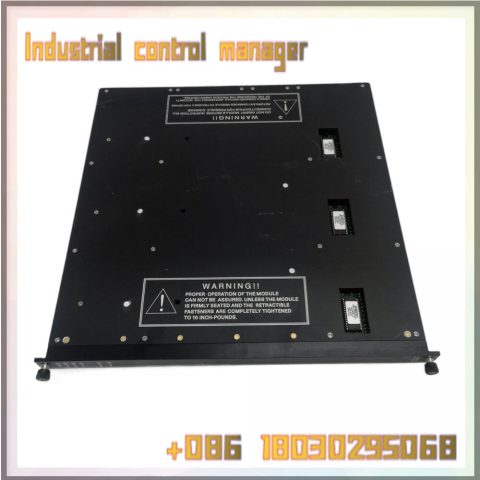

3806E 4-20mA and 20-320mA Analogue Output
3807
