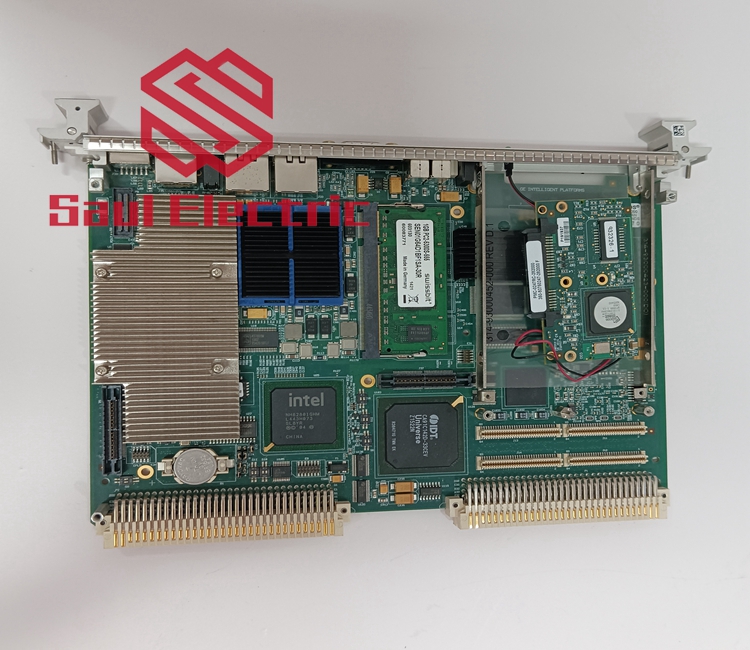

V7768-320000 3509301007768-320000B VME Single Board Computer
The V7768 is a VMEbus single board computer from GE Fanuc Intelligent Platforms, offering up to 2.16 GHz of processing speed via the Intel Core 2 Duo processor with up to 2 Gbyte DDR2 SDRAM.This board integrates the Intel 945GME Express Chipset and offers a very rich I/O set, making this a very flexible addition to our expansive line of Intel architecture VME SBCs. I/O options include dual Gigabit Ethernet, two SATA interfaces, four USB 2.0 ports, keyboard/mouse/SVGA on the front panel, as well as a PCI-X capable PMC site.The V7768 also offers a Celeron® M processor option that allows for 20 more degrees on the upper operating temperature limit.
V7768-320000 Features
• Intel Core 2 Duo processor up to 2.16 GHz
• Up to 4 Mbyte L2 cache
• Up to 2 Gbyte DDR2 SDRAM via single SODIMM
• 667 MHz system and memory bus
• Up to 8 Gbyte bootable CompactFlash
• One PCI-X PMC expansion site
• Board-to-board connection for PMC237CM1/V
PMC expansion board
• 2x Gigabit Ethernet on the front panel
• 2x Serial ports
• 4x USB 2.0 ports
• 2x SATA
• PS/2 keyboard/mouse on the front panel
• Operating System Support for Windows® XP,
VxWorks®, and Linux®
