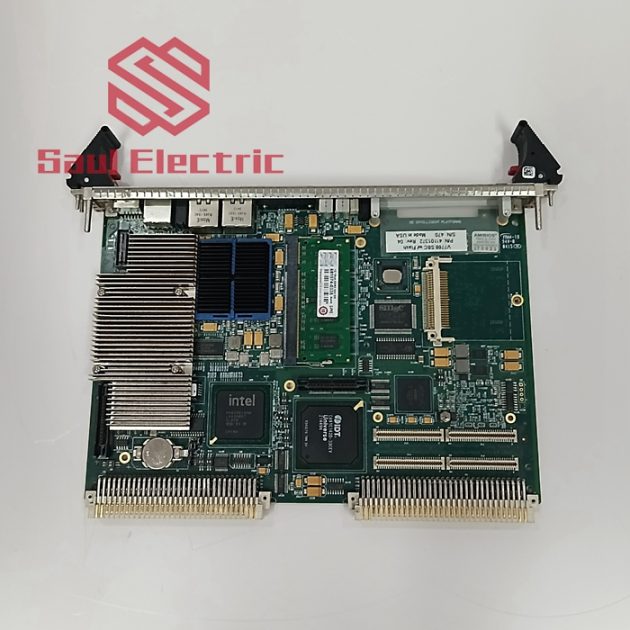

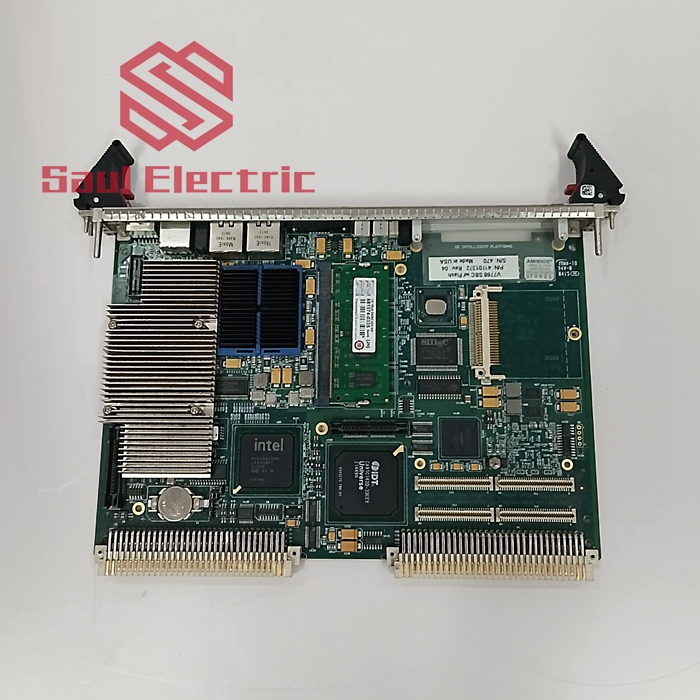

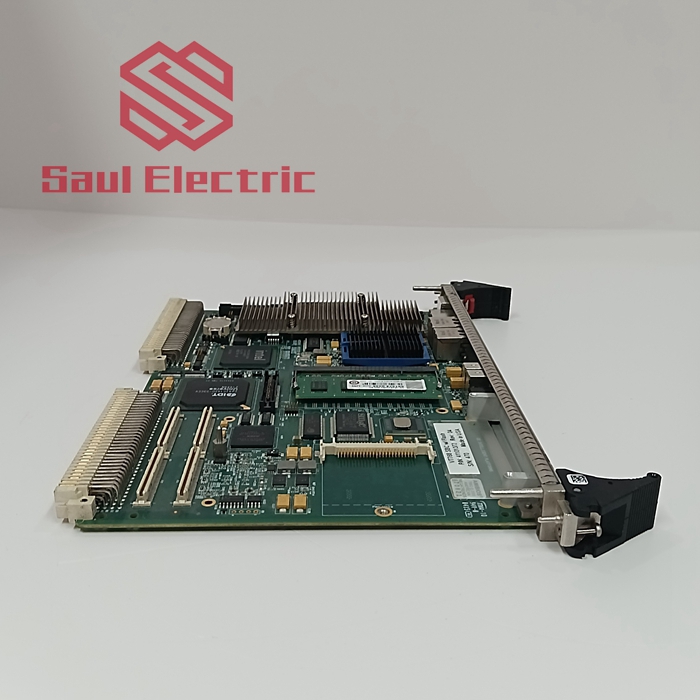

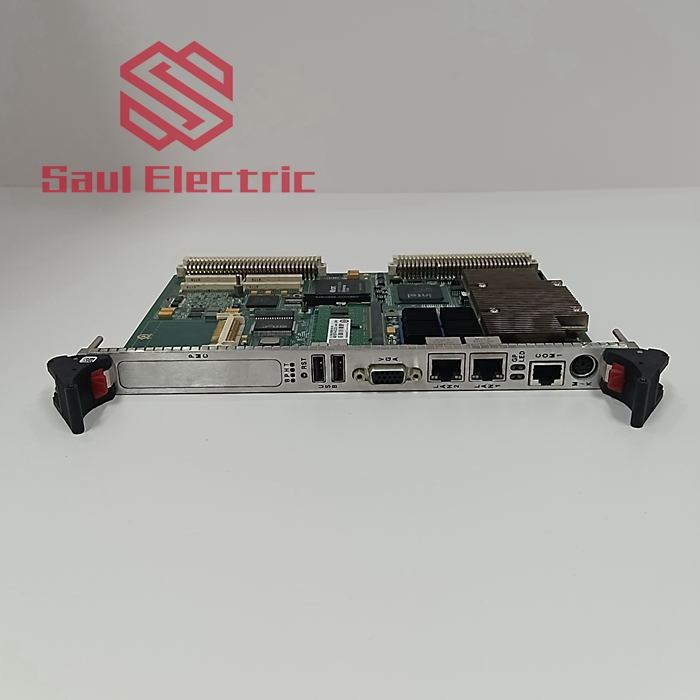

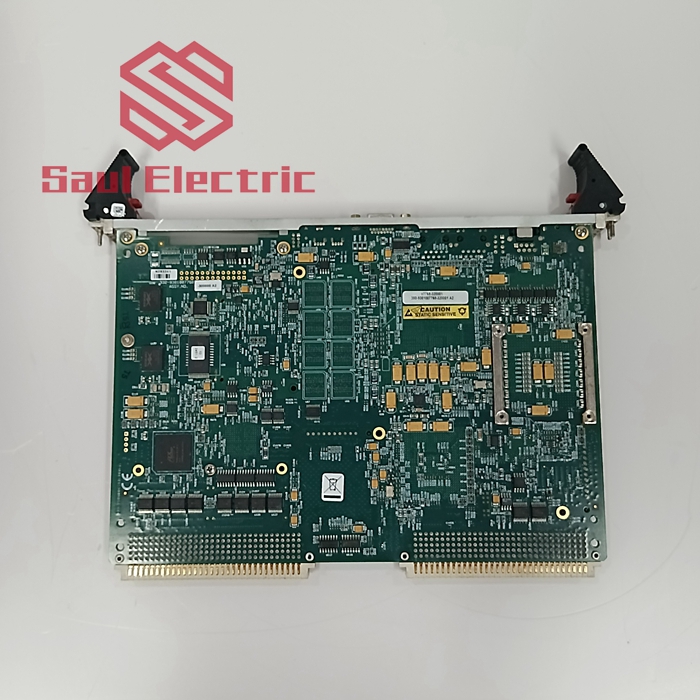

GE/Fanuc Intelligent Platforms V7768-320001 VME Single Board Computer
V7768-320001VME Single Board Computer
The V7768-320001 is a VMEbus single board computer from GE Fanuc Intelligent Platforms, offering up to 2.16 GHz of processing speed via the Intel Core 2 Duo processor with up to 2 Gbyte DDR2 SDRAM. This board integrates the Intel 945GME Express Chipset and offers a very rich I/O set, making this a very flexible addition to our expansive line of Intel architecture VME SBCs. I/O options include dual Gigabit Ethernet, two SATA interfaces, four USB 2.0 ports, keyboard/mouse/SVGA on the front panel, as well as a PCI-X capable PMC site. The V7768-320001 also offers a Celeron® M processor option that allows for 20 more degrees on the upper operating temperature limit.
V7768-320001 VME Single Board Computer Specifications
Processor
• Intel Core 2 Duo Processor at 2.16 GHz
• Intel Celeron M Processor at 1.07 GHz
• 4 Mbyte cache (Core 2 Duo options), and 1 Mbyte (Celeron M option)
• 667 MHz system and memory bus on the Core 2 Duo options, 533 MHz system and memory bus on the Celeron M option
Serial Ports
• Two 16550 compatible serial ports via DB-9 connectors: COM1 routed to front panel, COM2 routed to P2
• Ports feature independent 16-byte FIFO supporting baud rates up to 115 Kbaud
PMC Extension Slot
• One 133 MHz PCI-X PMC site
• 46-pin P2 user I/O per VITA35, P4V2-46dz
• Add 3x 32-bit/33 MHz PMC sites with the PMC237CM1/V
