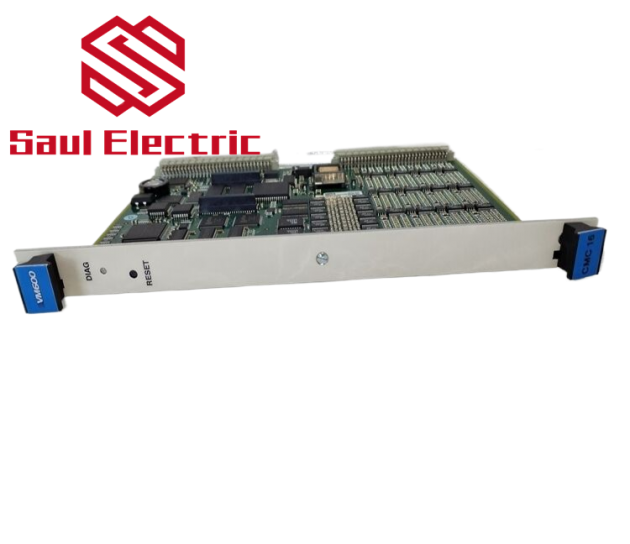

The ‌VIBRO-METER CMC16 200-530-022-014‌ is a high-density condition monitoring card designed for predictive maintenance in critical rotating machinery. As part of the VM600 platform, this 16-channel module enables real-time vibration, temperature, and speed monitoring with ±0.1% FSO accuracy. The ‌CMC16 200-530-022-014‌ integrates IEPE sensor excitation (4mA constant current) and anti-aliasing filters, making it essential for gas turbine health monitoring and power generation applications.

Featuring MIL-STD-810G shock resistance and 24-bit ADC resolution, the ‌VIBRO-METER CMC16 200-530-022-014‌ captures transient events up to 25kHz with 0.1Hz spectral resolution. Its dual-redundant Ethernet interface supports MODBUS TCP/IP and OPC UA protocols, enabling seamless integration with DCS systems like Siemens SPPA-T3000. The card’s patented CMRR >120dB design eliminates electromagnetic interference in substation environments.

VM600 CMC16 200-530-022-014 Condition Monitoring Card

Technical Specifications

Parameter Name	Parameter Value
Product Model	‌CMC16 200-530-022-014‌
Manufacturer	VIBRO-METER
Product Type	VM600 Condition Monitoring Card
Input Channels	16 (IEPE/Voltage/Tachometer)
Sampling Rate	51.2kS/s per channel
Frequency Range	DC – 25kHz (±3dB)
Dynamic Range	120dB (24-bit ADC)
Communication	2x Gigabit Ethernet, RS-485
Power Supply	24V DC ±10% (35W max)
Operating Temperature	-40°C to +85°C
Shock Resistance	100g, 11ms (MIL-STD-810G)
Certifications	ATEX II 3G, IECEx, SIL 2
Dimensions	178×128×45mm
Weight	850g

Key Features and Advantages:

Advanced signal conditioning: The ‌VIBRO-METER CMC16 200-530-022-014‌ employs automatic sensor detection technology that identifies IEPE, accelerometer, and proximity probe types within 500ms. Its programmable 0-10V output allows simultaneous raw signal routing to external analyzers.

Cybersecurity hardened: Secure boot firmware and TLS 1.3 encryption protect against unauthorized access in power plant networks. The card’s 1ms timestamp synchronization accuracy enables cross-machine phase analysis in compressor trains.

Modular scalability: Hot-swappable design allows channel expansion without system downtime. Built-in web server provides HTML5 interface for mobile device configuration, reducing control room HMI load by 40%.

Application Areas:

The ‌VIBRO-METER CMC16 200-530-022-014‌ is deployed in:

‌Wind turbine monitoring‌: Blade passing frequency analysis (0.05Hz resolution)
‌Oil & gas‌: Reciprocating compressor crankcase vibration protection
‌Hydroelectric plants‌: Hydro turbine cavitation detection
‌Steel mills‌: Rolling mill gearbox fault prediction

In nuclear reactor coolant pump monitoring, the ‌CMC16 200-530-022-014‌ achieves 0.8µm RMS resolution for early bearing wear detection. Its Class I Div 2 certified variant serves in offshore platform gas compressor systems.

Installation and Maintenance:

Installation preparation: Ensure proper grounding (impedance <1Ω) when installing the ‌VIBRO-METER CMC16 200-530-022-014‌ near high-voltage equipment. Use shielded CAT6A cables for Ethernet connections and maintain 50mm clearance from power conductors.

Maintenance recommendations: Perform bi-annual calibration using VIBRO-METER CAL-6000 test set. The built-in self-test function (activated via front-panel LED sequence) verifies channel integrity and ADC linearity. Replace cooling fans every 50,000 operational hours.
