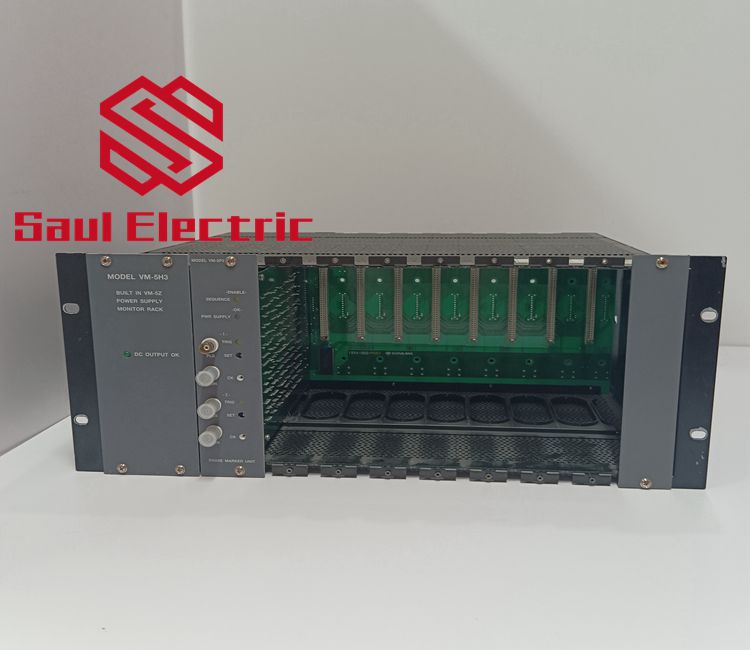

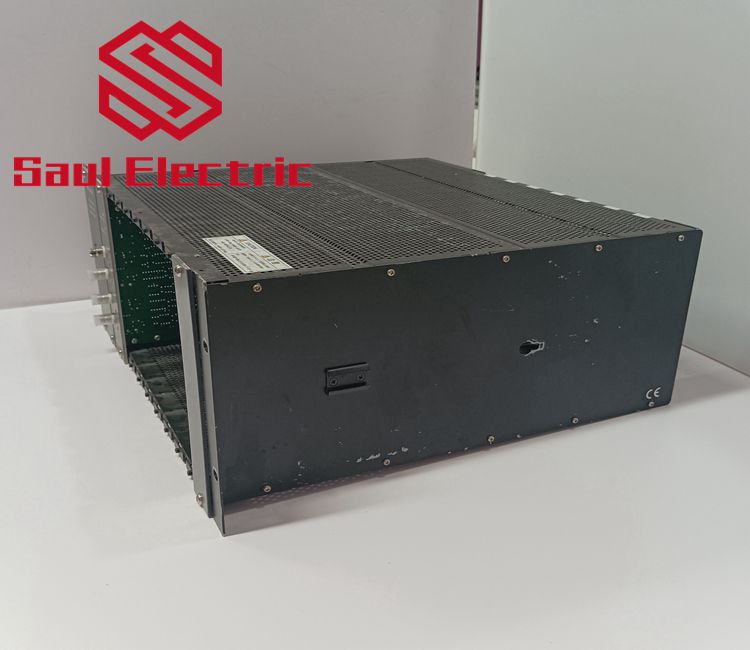

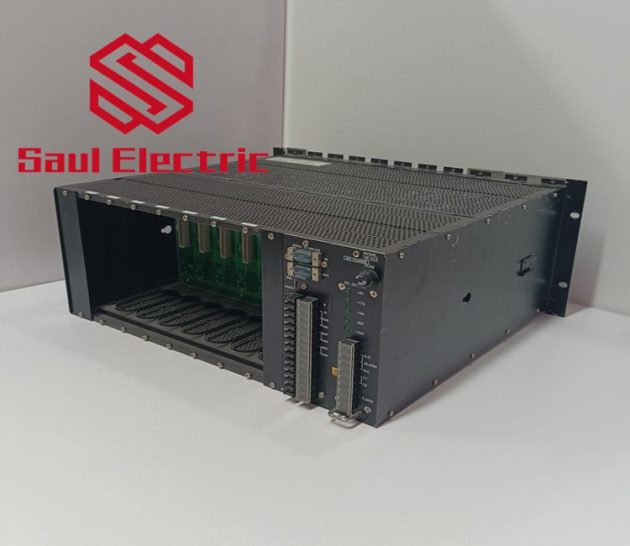

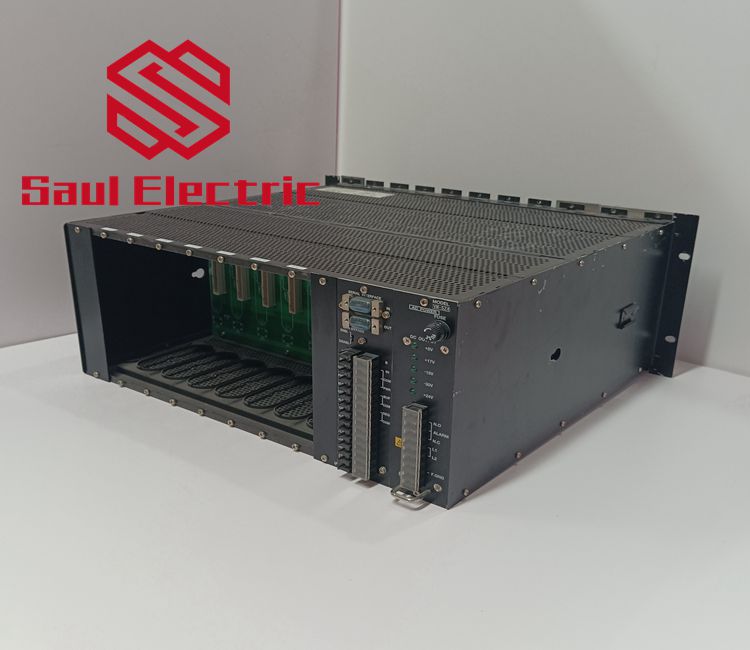

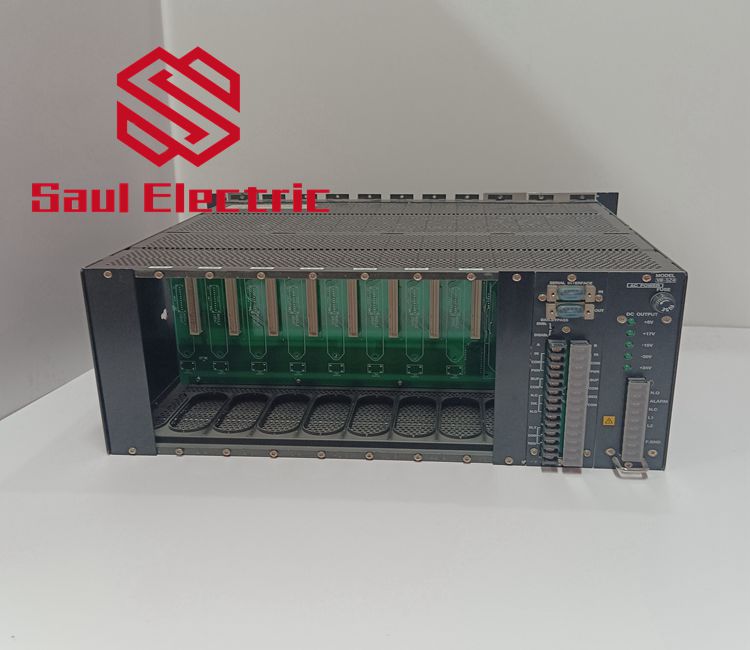

VM-5H3/VM-5P3 /VM-5Z4 Eccentricity Monitor
SHINKAWA VM-5H3/VM-5P3 /VM-5Z4 Eccentricity Monitor
SHINKAWA VM-5H3/VM-5P3 /VM-5Z4 Eccentricity Monitor
SST-2194-001-P001G is VM-5H3/VM-5P3 /VM-5Z4 Series A monitor used for monitoring Shaft Vibration, Axial Position, Eccentricity, Temperature, Rotational Speed, etc. 8 and 10 slot rack mount types, Power source built-in standalone type are available for flexibility.
VM-5H3/VM-5P3 /VM-5Z4 Series monitor has flexible options of 10 and 8 slots, rack mount type and power source built-in. Standalone type allows for configurations for small to middle scale rotating machinery for TSI (Turbine Supervisory Instrumentation) for large turbine generator. All settings and checks can be done on the front panel, without disturbing the operation. Modules are available to cover every function that is required for rotating machinery monitoring, from displacement/vibration to zero-speed. The monitor can be flexibly configured to the type and size of the asset to be monitored. VM-5H3/VM-5P3 /VM-5Z4 Series SST-2194-001-P001G Dual Vibration Monitor
VM-5H3 Series VM-5H3/VM-5P3 /VM-5Z4 Dual Vibration Monitor Features：
- High reliability with redundant power supply (10 slot rack mount type)
- Data communication allows for system expansion (Rack mount type)
- Monitor modules allow for flexible configuration
- All settings and checks are done on the front panel without disturbing the operation.
- Easy monitoring with full display function
- Configuration can be changed in the field.
- Self diagnostics function
VM-5H3 monitoring system offers 16 types of monitoring units to cover a wide range of condition parameters such as vibration, displacement, rotational speed, etc. Its precise monitoring of vibration, axial position, eccentricity, differential expansion, etc., are critical for large rotating machinery operation. Perfect for Turbine Supervisory Instrumentation.
Flexible system size：
A VM-5H3 system consists of the monitor unit, relay module, power supply unit and instrumental rack.The rack can be selected from a multiple unit type (VM-5H4, VM-5W2) and a single unit type (VM-5H3) appropriate for the application.
Input sensors：
Our transducers to provide signals to VM-5H3 series monitors FK/VK Series, CV/CA Series, LVDT, RD Series, MS Series sensors.The variety of transducers covers a wide range of measurement needs with these high quality sensors provide reliable data to ensure stable condition monitoring.
