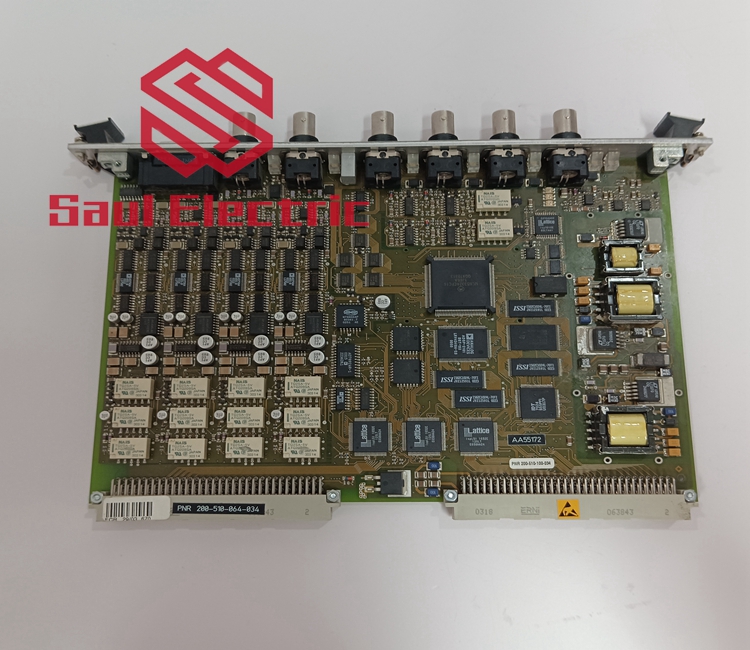

Vibro-meter VM600 MPC4 machinery protection card

Vibro-meter VM600 MPC4 machinery protection card

The VM600 card is capable of simultaneously measuring and monitoring four dynamic signal inputs and two speed/phase signal inputs. Dynamic signal input is fully programmable and can receive acceleration, speed and displacement signals or other signals. The multi-channel processing technology on the board enables a variety of physical measurements such as relative axial vibration, absolute axial vibration, SMAX, eccentricity, axial displacement, absolute and relative expansion, dynamic pressure, etc. Speed/phase input can be connected to various speed sensors (such as eddy current, reluctance, TTL, etc.), supporting fractional speed ratio.

VM600 MPC4 machine monitoring protection module specifications

Dynamic signal input
Number of input signals: 4 signals per MPC4 card
DC range: 0 to +20 V or 0 to −20 V
AC range: ± 10 V (Max)
Common mode voltage range: −50 to +50 V
CMRR: > 60 dB at 50 Hz
Crosstalk: −72 dB
Input impedance: 200 kΩ

Current input range
DC signal: 0 to 25 mA
AC signal: ± 8 mA (Max)
1 Analog AC frequency band (not integrated) : 0.1 Hz to 10 kHz
2 Analog AC frequency band (integrated) : 2.5Hz to 10 kHz
3 Analog frequency bands vs
Other cards and buffered AC output: DC to 60 kHz (−3 dB)
Current detection resistance: 324.5Ω
