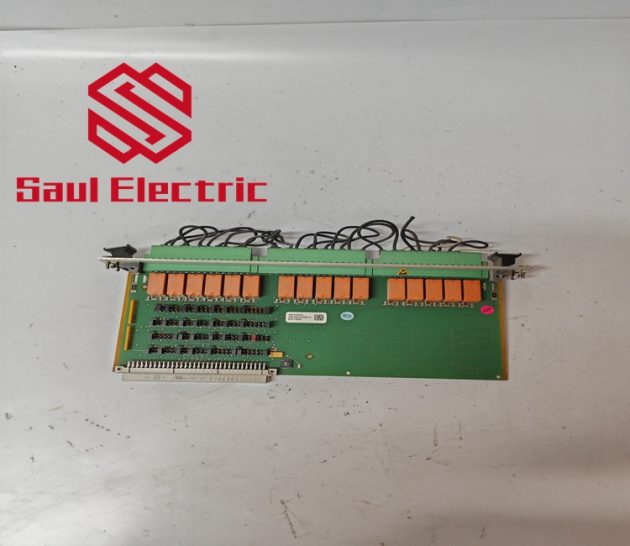

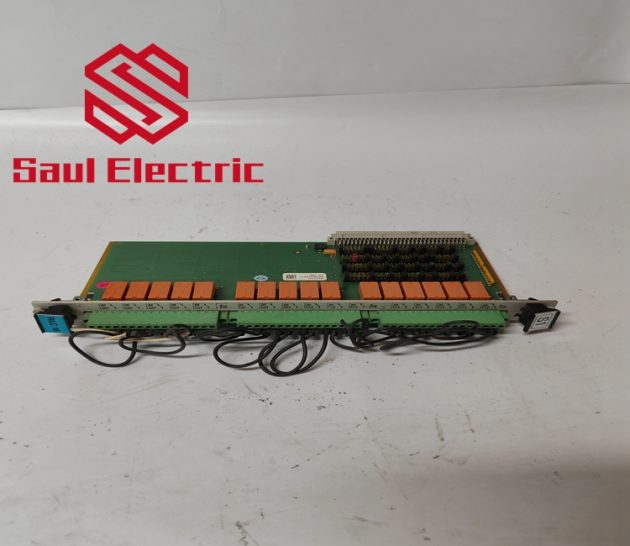

Vibro-meter VM600 RLC16 relay card

Vibro-meter VM600 RLC16 relay card

The RLC16 relay card is designed for use in the VM600 series of machinery protection systems and condition and performance monitoring systems, from Meggitt’s Vibro-Meter product line. It is an optional card, for use when the four relays on the IOC4T input /output card are insufficient for the application and additional relays are required.

The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw-terminal connector accessible at the rear of the VM600 rack.

Vibro-meter VM600 RLC16 relay card Key features and benefits

1 From the Vibro-Meter product line
2 Relay card with screw-terminal connectors
3 16 relays with change-over contacts
4 Relay driver inverter logic (jumper selectable)
5 Low contact resistance
6 Low capacitance
7 High through power
8 Live insertion and removal of cards (hot-swappable)
9 Conforms to EC standards for EMC

Vibro-meter VM600 RLC16 relay card specification

Environmental
Temperature
• Operating : −25 to 65°C (−13 to 149°F)
• Storage : −40 to 85°C (−40 to 185°F)

Humidity
• Operating : 0 to 90% non-condensing
• Storage : 0 to 95% non-condensing

Power supply to card (input)
Power source : VM600 rack power supply
Supply voltage : +5 VDC
Consumption : 40 mA × 16 (per relay)

Physical
Height : 6U (262 mm, 10.3 in)
Width : 20 mm (0.8 in)
Depth : 125 mm (4.9 in)
Weight : 0.30 kg (0.66 lb) approx.
