620-002-000-113 620-003-111-112 VM600 XI016T Extended vibration monitoring card
The XMV16 / XIO16T extended vibration monitoring card pair consists of an XMV16 620-002-000-113 620-003-111-112 extended vibration monitoring card and an XIO16T extended input/output card. This card pair provides all of the interfacing and signal processing functions required of an intelligent data acquisition system and is a central element in the VM600 series Total Monitoring Solution, from Meggitt Sensing Systems’ VibroMeter® product line. The cards are designed for operation with the VibroSight® software – to acquire and analyse your vibration data before communicating the results directly to a host computer using the on-board Ethernet controller.
VM600 XMV16 Speed and phase reference (tachometer) inputs
Number of independent channels： 4
Speed measurement : 1 to 100000 RPM (0.017 Hz to 1.667 kHz)
Speed measurement resolution : 5 ns
Edge detection : Rising or falling
Input signal type： Tachometer channels 1 and 2 support voltage and current inputs.
Tachometer channels 3 and 4 support voltage inputs only.
Current measuring resistor : 200 Ω
Tachometer voltage range : −20 to +20 Vdc
Tachometer current range : −30 to +30 mA
Input impedance : ≥100 kΩ
Maximum pulses per revolution : 128 for speed calculation
1 only for phase reference
Triggering thresholds : Rising = ⅔ of peak-to-peak value, falling = ⅓ of peak-to-peak value
Input voltage range : 0.8 to 500 Vpeak-to-peak in range 0.3 Hz to 10 kHz
2.0 to 500 Vpeak-to-peak in range 10 kHz to 50 kHz
Minimum input voltage for reliable detection
• Square-wave input signal : 0.8 Vpeak-to-peak (0.016 Hz to 10 kHz)
2.0 Vpeak-to-peak (10 kHz to 50 kHz)
• Sinusoidal input signal : 10.0 Vpeak-to-peak (0.016 Hz to 1 Hz)
2.0 Vpeak-to-peak (1 Hz to 10 Hz)
0.8 Vpeak-to-peak (10 Hz to 10 kHz)
2.0 Vpeak-to-peak (10 kHz to 50 kHz)
Range of DC component : −20 to +20 V
Maximum common mode voltage : ±50 V
Protection filters : Filtered for protection against EMI (electromagnetic interference), conforming to CE standards
VM600 rack signal sharing
• XMV16 and XMVS16 : To and from the VM600 tacho bus (up to 6 lines)
Vibro-meter VM600 product recommendations

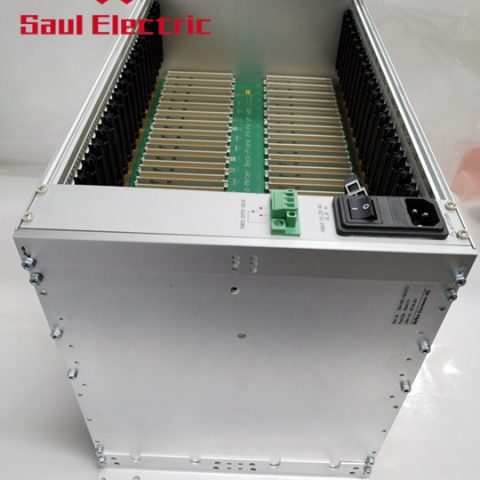

200-510-076-114 200-510-111-034 VM600 MPC4丨Vibro-meter machinery protection card ，200-582-915-032 VM600，VM600-ABE040 204-040-100-011，620-002-000-113 620-003-111-112 VM600 XI016T，200-566-000-012 200-566-101-012 VM600 IOCN，200-560-000-018 200-560-101-015 VM600 IOC4T，620-002-000-113 620-003-111-112 VM600 XIO16T，VM600 RPS6U 200-582-200-011，VM600 RPS6U 200-582-500-013，VM600 CPUM 200-595-100-014，VM600 MPC4 200-510-071-113 200-510-111-034，VM600 CPUM ，VM600 MPC4 ，VM600 MPC1，200-510-017-019 200-510-111-013 VM600 MPC4，Vibro-meter VM600 RPS6U Power module , Vibro-meter Input / Output Card VM600 IOC16T , Vibro-meter VM600 ABE040 204-040-100-011 system racks
