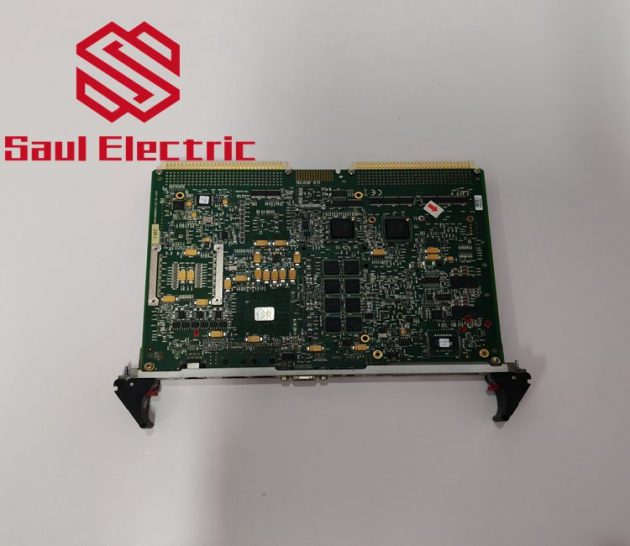

VME7865RC丨V7865-23003 350-9300007865-230003 M Processor VME Single Board Computer

The V7865 meets the ANSI/VITA 1.5-2003 standard, based on the Tundra Tsi148. The VMEbus can run at a bandwidth of up to 320 MB/s along the full length of a 21-slot backplane. Performance is increased in the following ways:
• 8x faster than the 40 MB/s transfer rate of VME64
• 3x faster than a multi-domain, 64-bit/66 MHz CompactPCI® bus
• Broadcast Mode support for sending data to multiple cards at one time

Features
• Intel Core Duo and Core 2 Duo processors up to 2.16 GHz
• Up to 3 GB DDR2 SDRAM
• RoHS Compliant
• Up to 4 GB bootable CompactFlash
• 667 MHz system and memory bus
• ANSI/VITA 1.5-2003 (2ESST, up to 320 MB/s)
• Optional VITA 41.3 (1000 Mb/s IEEE 802.3)
• Two RS232/422 serial ports
• Single PCI-X PMC site
• Four USB 2.0 ports
• Available for two environments:
– Commercial
– Rugged extended temperature*
• Multiple operating systems supported
* 1.66 GHz CPU only
