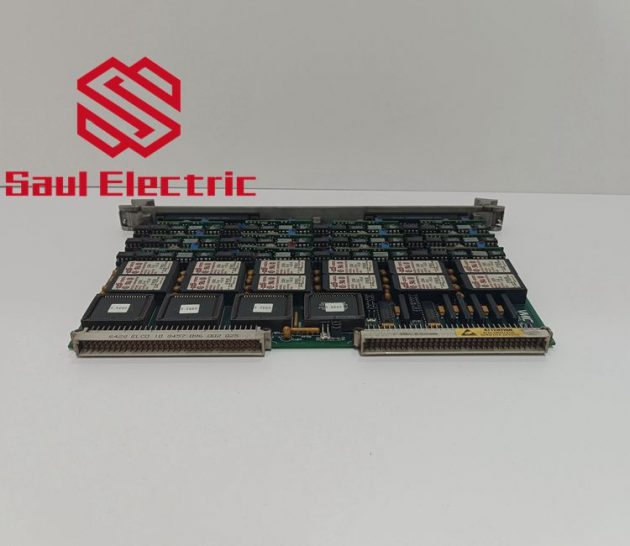

Isolated 12-Channel 12-bit Analog Output Board with Voltage or Current Outputs
with Voltage or Current Outputs VMIVME-4150丨VMIVME4150 Isolated 12-Channel 12-bit Analog Output Board
with Voltage or Current Outputs VMIVME-4150 Isolated 12-Channel 12-bit Analog Output Board
The VMIVME-4150 provides 12 isolated high quality 12-bit analog output channels on a single 6U form factor VMEbus board. Each channel is electrically isolated from all other channels and from the VMEbus , and will operate with sustained isolation voltages as high as 1,000 V. Output voltage ranges are selectable as ±2.5, ±5, and ±10 V, or 0 to +2.5 V, 5 V, 10 V, and full 10 mA loading is supported throughout these ranges. Four-, eight-, and twelve-channel configurations are available.
The VMIVME-4150 Isolated 12-Channel 12-bit Analog Output Board peculiarity：
•12 fully isolated analog outputs
• Up to ±1,000 V isolation, channel-to-channel, and channel-to-VMEbus
• 12-bit resolution
• Voltage output ranges selectable as ±2.5, ±5, ±10 V; 0 to +2.5 V, 5 V, or 10 V
• Voltage outputs protected to ±20 V indefinitely; transients to ±50 V
• 10 mA load capacity for voltage outputs over full ±10 V range
• Available with 4 to 20, 0 to 20, or 5 to 25 mA current loop outputs
• 0.05 percent accuracy for voltage outputs, 0.08 percent for current loop outputs
• 4-, 8-, and 12-channel configurations
• Optical data coupling provides full galvanic isolation
• Static readback data registers simplify program control
• Front panel access
• Program-controlled connect/disconnect operation of voltage outputs facilitates system testing
• Overvoltage protection: IEEE-472 compatibility when used with companion VMIVME-3456 board
