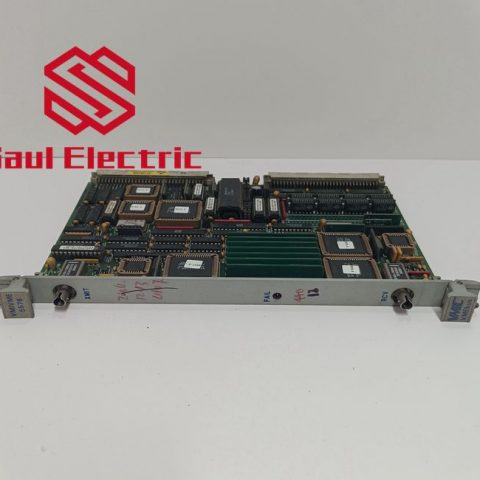

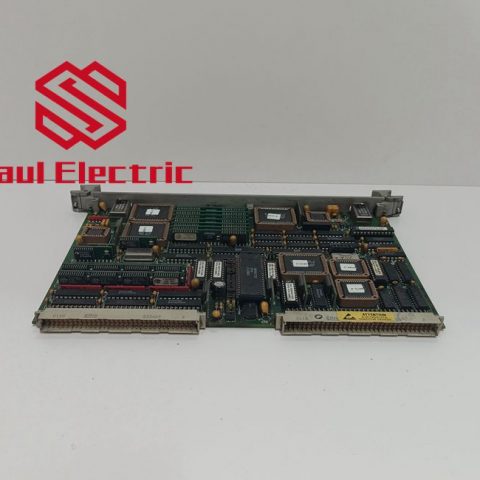

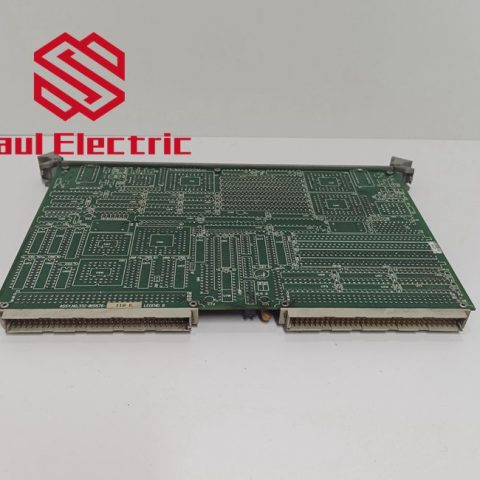

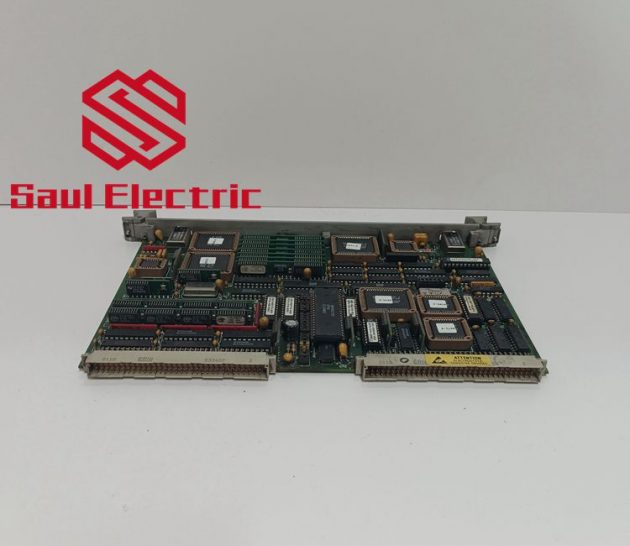

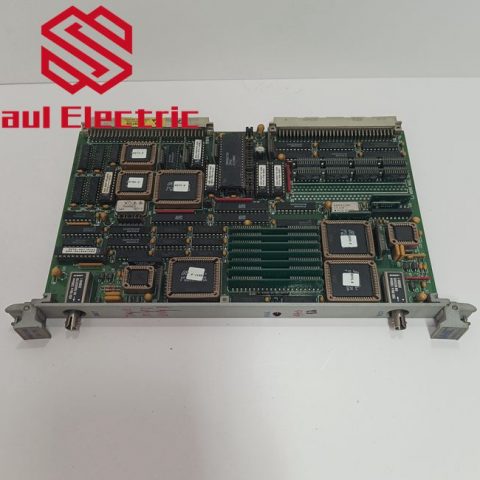

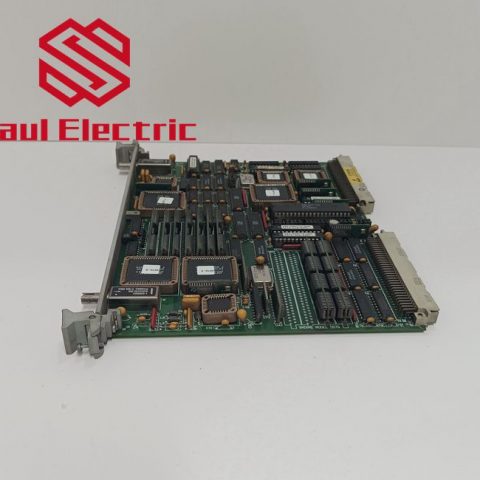

VMIVME-5576 Fiber-Optic Reflective Memory with Interrupts
VMIVME-5576 High-speed, easy-to-use fiber-optic network (170 Mbaud serially)
VMIC’s VMIVME-5576 Reflective Memory interface allows data to be shared between up to 256 independent systems (nodes) at rates up to 6.2 Mbyte/s. Each Reflective Memory board may be configured with 256 Kbyte to 1 Mbyte of on-board SRAM. The local SRAM provides fast Read access times to stored data. Writes are stored in local SRAM and broadcast over a high-speed fiber-optic data path to other Reflective Memory nodes. The transfer of data between nodes is software transparent, so no I/O overhead is required. Transmit and Receive FIFOs buffer data during peak data rates to optimize CPU and bus performance to maintain high data throughput.
VMIVME-5576 is a high-performance, multidrop VME-to-VME network. Data is transferred by writing to on-board global RAM. The data is automatically sent to the location in memory on all Reflective Memory boards on the network.
The VMIVME-5576 Fiber-Optic Reflective Memory with Interrupts peculiarity：
• High-speed, easy-to-use fiber-optic network (170 Mbaud serially)
• Data written to memory in one node is also written to memory in all nodes on the network
• Up to 2,000 m between nodes and up to 256 nodes
• Data transferred at 6.2 Mbyte/s without redundant transfer
• Data transferred at 3.2 Mbyte/s with redundant transfer
• Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
• Error detection
• Redundant transmission mode for suppressing errors
• No processor overhead
• No processor involvement in the operation of the network
• Up to 1 Mbyte of Reflective Memory
• A24:A32:D32:D16:D8 memory access
• Single 6U VMEbus boar
