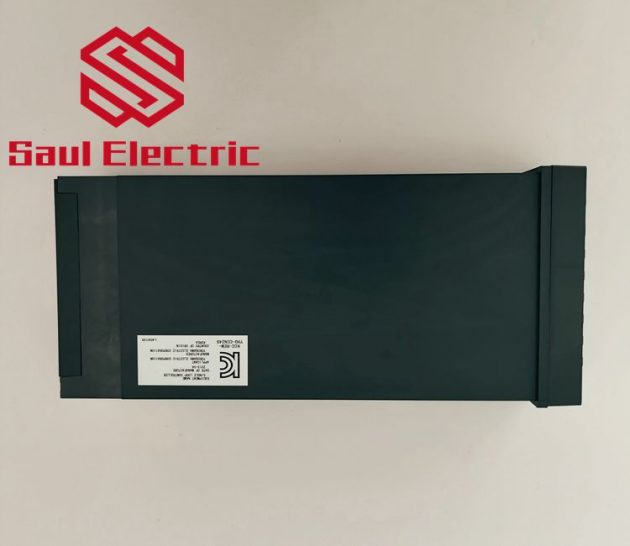

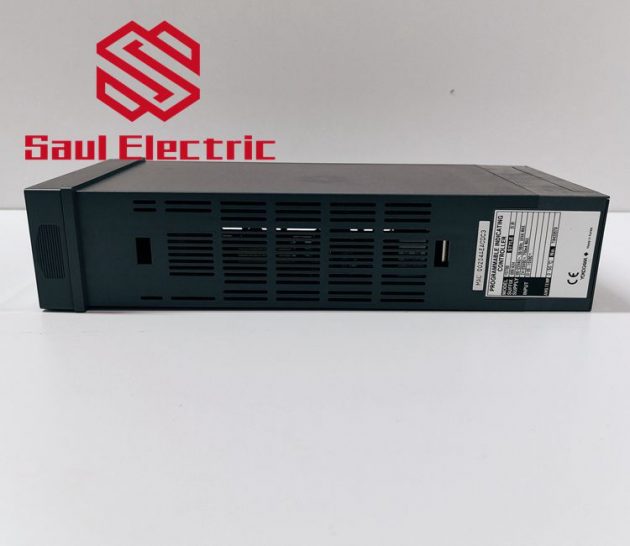

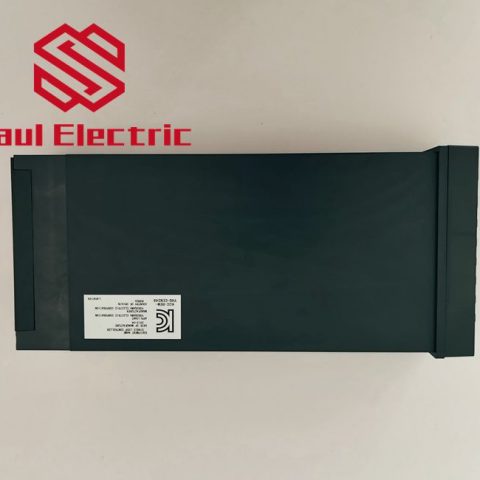

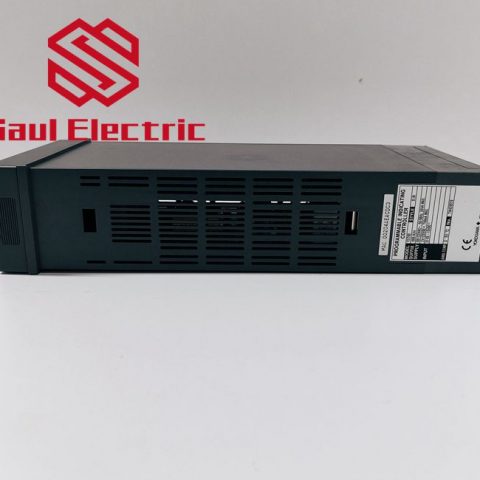

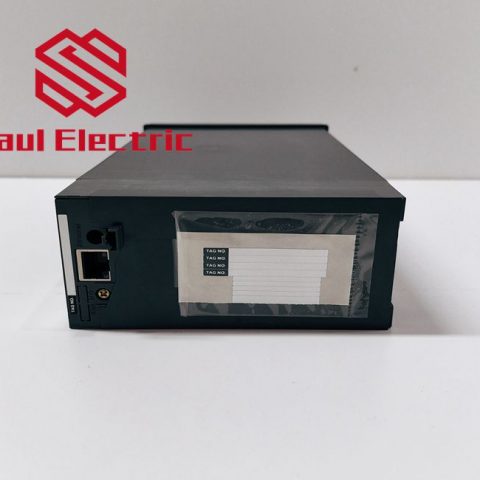

YOKOGAWA丨YS1700-000A34 Programmable indicating controller
YOKOGAWA丨YS1700-000A34 Programmable indicating controller

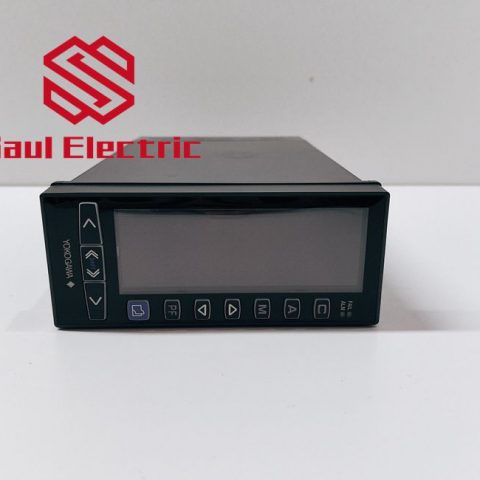

The YS1700-000A34 features a full dot-matrix color LCD for excellent clarity: the display is highly visible even in direct sunlight in the early morning and late evening. Users can freely access the desired action screen from the meter, trend, bar chart, alarm and event display. All parameters can be set through the front panel display.
1: Feature block programming: In addition to text programming compatible with earlier models, the YS1700 also offers a new GUI-based programming method – feature block programming. Optional YSS1000 setup software for the YS1000 series is used to develop user programs.
2: Large programming capacity: the program capacity of the text program is 1000 steps, and the function block program is 400 modules.
3: More powerful control and calculation: through IEEE754 format 4-byte floating point calculation, the actual value can be used for calculation. More than 100 calculation modules are available, including exponential and logarithmic functions, temperature compensation and pressure compensation.
4: Function Selection mode (no programming required) : In multi-function controller mode, the control can be selected from frequently used functions (single loop, cascade or selector control) without programming. The function assignment of digital and analog inputs/outputs (DI, DO, AI, and AO) can be determined through parameter Settings.
5: Extended I/O: The basic model with extended I/O has 8 analog inputs, 4 analog outputs, 10 digital inputs, or 10 digital outputs (a total of 14 digital inputs and outputs).
6: Fail-safe: Because it has two cpus (one for control and one for display), it can display and perform manual operations even if one of the cpus fails. When a digital circuit containing 2 cpus fails, the controller output can be manually adjusted by a hard manual circuit independent of the digital circuit. (Hard manual circuits are not included when specified /NHM is optional.)
7: Non-volatile memory for memory backup: no need to use batteries or capacitors for memory backup, easy maintenance.
8: AC/DC dual power supply has a wide range of operating voltage, which can ensure the stability of power supply voltage fluctuations: AC(100 V) or – – DC(24 V) power supply can be used. In addition, the DC power supply can also receive non-polar power. (If 220 V AC power is used, it must be specified when ordering.)
– Depth of 250 mm (basic model only)
– Dust/drip proof IP54 panel (basic model only)
-CE Mark (basic model and YS100 compatible model only)
-FM non-flammable and explosion-proof protection (optional for basic model only)
– Communication (optional) – Ethernet (Modbus/TCP; Basic model only) – RS485 (PC Link, Modbus, point-to-point communication and YS protocol; Not applicable to YS80 internal unit compatible) -DCS-LCS communication
– Compatible with the YS100 series: can be configured and controlled in the same way. For the basic model, the terminal to terminal spacing is different, but the signal to terminal distribution is almost the same.
